Will the Redding 28153 die set work with other 30-calibre magnum cartridges like the 300 WSM or 300 PRC?

No, this die set is built exclusively for standard SAAMI-spec 300 Winchester Magnum brass. It is strictly incompatible with other 30-calibre magnums such as the 300 WSM, 300 PRC, or 300 Weatherby Magnum.

What kind of press compatibility and thread size does the Redding Master Hunter 300 Win Mag die set require?

The dies feature a standard 7/8"-14 thread interface, making them fully compatible with virtually all standard single-stage and progressive reloading presses used on the Australian market. Because it is a purely mechanical reloading tool, it requires no electrical power or regulatory approvals like SAA/RCM.

How precise is the bullet seating adjustment on the competition seating die included in this set?

The competition seating die features a micrometer seating depth adjuster graduated in precise 0.001" increments. Combined with an internal alignment sleeve that supports both the case neck and bullet before seating, it delivers near-zero runout and match-grade concentricity ideal for reliable field cycling.

Do I need to use case lubricant with the full-length sizing die in the Redding 28153 set?

Yes, external case lubrication is still required for the case body during full-length resizing to prevent stuck cases in your reloading press. However, the sizing die is equipped with a free-floating carbide size button that smoothes inside-neck expansion without requiring inside-neck lubrication.

300 Win Mag Die Set - Redding 28153

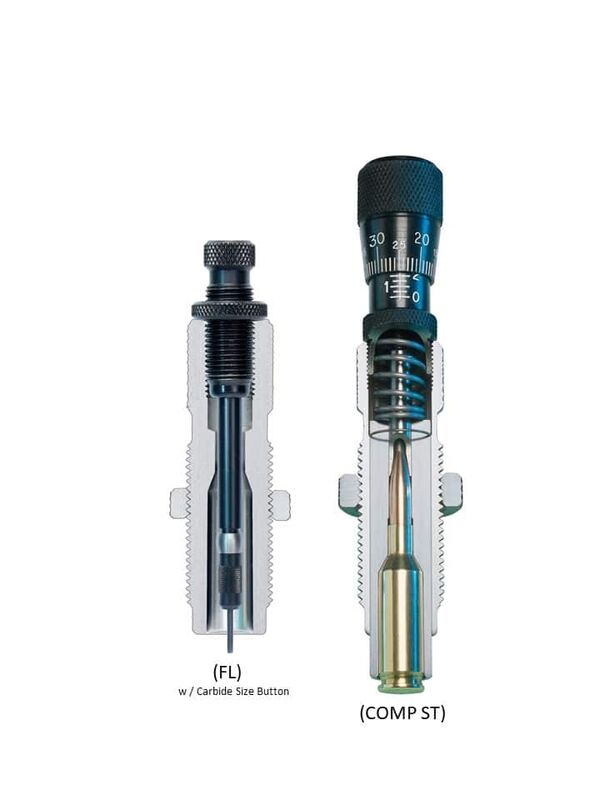

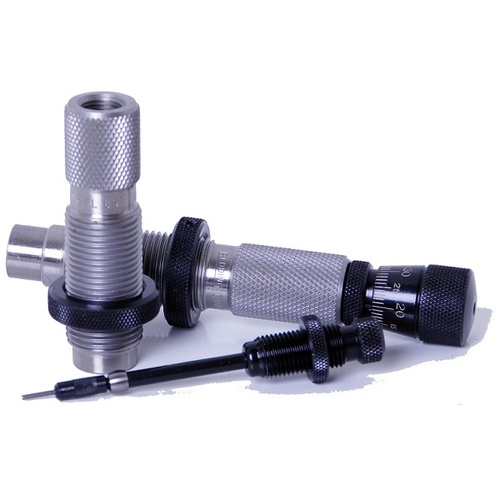

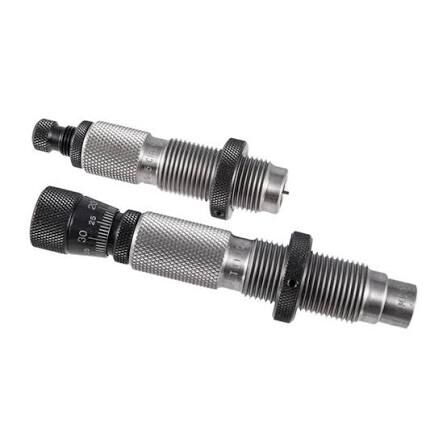

The Redding Master Hunter (MH-C) 2-Die Set for .300 Winchester Magnum (Part 28153) is a precision handloading system engineered to deliver match-grade bullet alignment alongside reliable field feeding. Designed to mount in standard reloading presses with a 7/8"-14 thread, this mechanical two-die set pairs a full-length resizing die featuring a free-floating carbide size button with a Competition Bullet Seating Die. The combination resizes fired brass back to standard SAAMI factory dimensions while supporting the cartridge case and projectile in a close-tolerance alignment sleeve to minimise bullet runout.

Key Features

Full-Length Resizing Die: Restores fired .300 Win Mag cases to SAAMI external specifications, guaranteeing smooth feeding, reliable chambering, and extraction in hunting and bolt-action rifles.
Free-Floating Carbide Size Button: Smooths and expands the inside of the case neck without requiring inside-neck lubrication.
Competition Seating Die: Features an internal sliding sleeve that aligns the case neck and projectile before the seating stem engages, ensuring concentric, straight bullet seating.
Micrometer Depth Adjustment: Integrated seating micrometer clearly graduated in 0.001" increments allows handloaders to dial in and replicate specific overall lengths (OAL).
Standard Thread Mounting: Operates using industry-standard 7/8"-14 threads for compatibility with single-stage and progressive reloading presses.

Product Specifications

Product Name: Redding Master Hunter 2-Die Set
Manufacturer Model Number: 28153
Calibre: .300 Winchester Magnum (.300 Win Mag)
Die Thread Interface: 7/8"-14 thread
Seating Adjustment: Micrometer adjustable in 0.001" increments
Die Set Contents: 1 × Full-Length Sizing Die with Carbide Expander Button, 1 × Competition Seating Die
Operation Type: Manual mechanical reloading tool
Packaged Weight: Approximately 0.65 kg to 0.75 kg

Who is the Redding 300 Win Mag Master Hunter Die Set for?

Precision rifle hunters handloading 300 Win Mag for sambar and red deer — full-length resizing ensures consistent chamber clearance in the field, while the Competition Seating Die with its 0.001" increments micrometer adjustment lets handloaders precisely tune cartridge overall length for maximum accuracy.
Long-range pest controllers reloading 300 Win Mag for reliable field cycling — this 300 Win Mag reloading die set installs directly into standard 7/8"-14 thread presses to produce concentric ammunition that feeds and extracts reliably under high-pressure, rapid field conditions.

Less suitable for: Cartridges outside standard SAAMI .300 Winchester Magnum dimensions; shooters loading alternate .30-calibre rounds like the .300 WSM, .300 PRC, or .300 Weatherby Magnum require a calibre-specific die set, while benchrest shooters using fire-formed brass in a single custom tight chamber may be better served by a dedicated neck-sizing bushing die.

SKU	RD41495LP
Model #	28153
Brand	Redding
Shipping Weight	1.0000kg
