Will the Redding 32242 decapping rod assembly work with my Redding Type S Bushing Dies?

No, this standard assembly is not intended for Redding Type S Bushing Dies, which require dedicated Type-S decapping rod assemblies such as SKU 10246. The 32242 is specifically engineered for standard Redding full-length and neck sizing dies designed for 6mm BR and .243 WSSM cartridges.

Can I use this assembly for standard .243 Winchester or 6mm Remington brass?

No, this assembly is not designed for longer 6mm calibres like 6mm Remington or .243 Winchester, which require distinct rod lengths such as SKU 33242. It is strictly calibrated for the specific case lengths of 6mm BR Benchrest and .243 Winchester Super Short Magnum cartridges.

What is included in the complete Redding 32242 assembly package?

The complete assembly includes a threaded steel decapping rod, an integrated 6mm (.243 inch) expander ball for neck sizing on the upstroke, and a replaceable standard-diameter decapping pin measuring approximately 0.062 inches (1.57 mm). Weighing just 45.4 grams, it serves as a direct OEM replacement to restore full functionality to damaged sizing dies.

How do I adjust the decapping rod during initial setup in my reloading press?

The threaded steel rod screws directly into the top of your standard Redding sizing dies, allowing for precise depth calibration. You should adjust it so the decapping pin reliably reaches the primer flash hole to punch out spent primers on the downstroke without bottoming out against the cartridge web.

Are there any electrical compliance requirements or Australian safety certifications needed for this part?

No electrical compliance, plug types, 240V ratings, or SAA/RCM regulatory frameworks apply to this item. The Redding 32242 is a purely mechanical reloading tool component that operates solely through the manual leverage of a standard 7/8 inch-14 reloading press.

What should I do if I encounter brass with small or crimped flash holes?

This assembly is fitted with a standard-diameter Redding decap pin of approximately 0.062 inches. If you are processing brass with custom small flash holes measuring around 0.059 inches or smaller, standard pins can bind or bend, meaning you may need specialized undersized decapping pins or purpose-built small-hole assemblies.

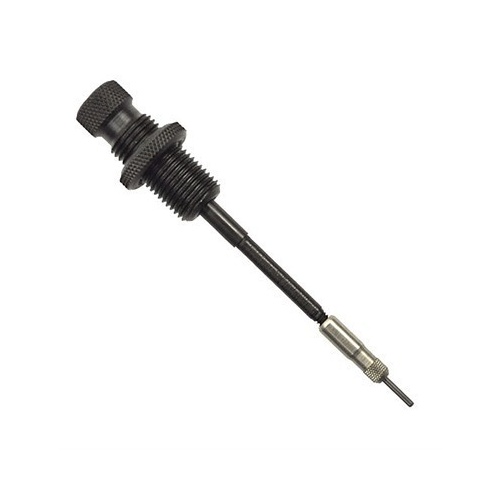

Redding Decapping Rod - Redding 32242

The Redding Decapping Rod Assembly for 6mm BR / .243 WSSM (Manufacturer Part Number: 32242) is an OEM replacement internal assembly designed for standard Redding full-length and neck sizing dies. This purely mechanical handloading component restores factory functionality when an existing rod is bent, stripped, or damaged. It performs a dual operation during the reloading stroke: punching spent primers out through the flash hole on the press downstroke, and expanding the case neck to the correct internal diameter via an integrated 6mm (.243") expander button on the upstroke.

Key Features

Dual-Function Operation: Combines an integrated decapping pin to remove spent primers and a 6mm (.243") expander ball to set inside neck dimensions in a single die pass.
Threaded Depth Adjustment: Screws directly into standard Redding sizing die bodies, allowing precise vertical adjustment to ensure the pin clears the flash hole without striking the cartridge case web.
Replaceable Decapping Pin: Features a standard-diameter (approx. 0.062" / 1.57 mm) replaceable pin that can be swapped out if damaged by off-centre flash holes or crimped brass.
Direct OEM Fit: Engineered specifically to match the internal length and thread pitch of standard Redding dies formatted for the 6mm BR and .243 WSSM cartridge length class.

Product Specifications

Manufacturer Part Number: 32242
Product Type: Internal decapping and neck-expanding rod assembly
Calibre Compatibility: 6mm BR (Benchrest) and .243 WSSM (Winchester Super Short Magnum)
Expander Button Diameter: 6mm (.243")
Standard Pin Diameter: Approximately 0.062" (1.57 mm)
Weight: Approximately 0.0454 kg (45.4 g / 1.6 oz) shipping weight
Power Requirements: None (manual reloading press component)

Who is the Redding Decapping Rod Assembly for 6mm BR and .243 WSSM for?

Precision benchrest reloaders — restores standard Redding sizing dies to factory specification for processing 6mm BR cartridge brass using an integrated 6mm (.243") expander button and a 1.57 mm standard decapping pin.
Hunting rifle reloaders — provides a direct replacement decapping rod assembly to deprime and neck-expand short-action .243 WSSM brass without bottoming out against the cartridge case web.

Less suitable for: Reloaders using Redding Type S Bushing Dies, which require dedicated Type S decapping rod assemblies, or those loading longer 6mm cartridges like .243 Winchester or 6mm Remington, which require longer-reach decapping rods.

SKU	RD102821LP
Model #	32242
Brand	Redding
Shipping Weight	0.1000kg
