Which specific 6.5mm calibres and Redding dies are compatible with the 34263 decapping rod assembly?

The Redding 34263 decapping rod assembly is engineered specifically for standard Redding full-length and neck sizing dies chambered in 6.5x55mm Swedish Mauser (SE), 6.5-284 Winchester, 6.5mm Remington Magnum, 6.5x57mm Mauser, and .264 Winchester Magnum. It features a standard 6.5mm (.264") expander ball. Please note that it is not compatible with dies from other manufacturers like Lee, RCBS, or Hornady, nor is it suitable for Redding Type S Bushing Dies that omit the expander ball.

Can this decapping rod handle brass with small flash holes or Berdan priming?

No, this assembly comes equipped with a standard-diameter decapping pin designed exclusively for conventional Boxer-primed cartridge cases featuring standard ~0.080" flash holes. Attempting to use this rod on brass with small flash holes measuring ~0.060" or Berdan-primed brass will result in bent or broken pins. Handloaders processing specialty brass should use dedicated undersized decapping tools instead.

Does the Redding 34263 require any electrical compliance or special setup when used on the reloading bench in Australia?

No electrical compliance or SAA/RCM certification is required because this is a completely manual, mechanical reloading tool component with zero electrical parts or power requirements. Setup simply involves threading the steel decapping spindle rod into your compatible Redding sizing die and adjusting the height to simultaneously punch spent primers and expand the case neck during your reloading stroke.

What maintenance is recommended to ensure the longevity of the Redding decapping rod assembly during heavy outback reloading sessions?

As a robust bench-mounted workshop accessory, it requires minimal maintenance beyond keeping the threaded steel spindle and expander ball clean and lightly oiled to prevent corrosion in humid or dusty Australian conditions. For optimal case sizing and to reduce friction on the 6.5mm expander ball, pair this assembly with a quality case lube such as Redding Imperial Sizing Die Wax.

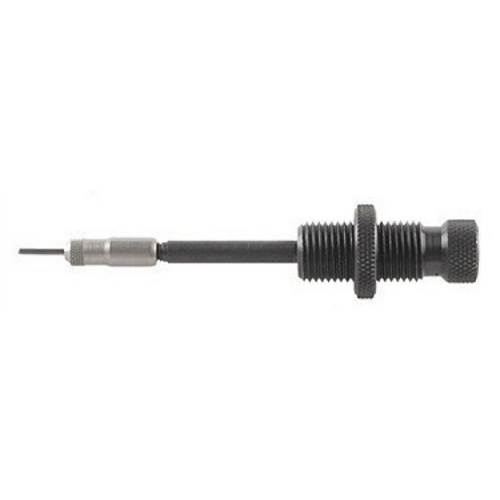

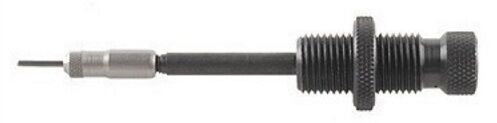

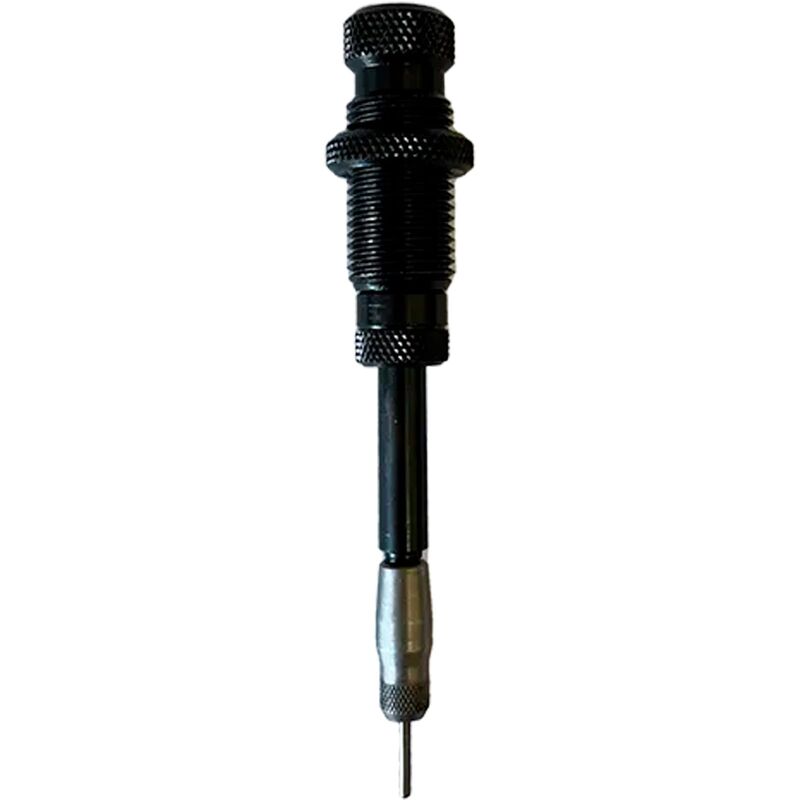

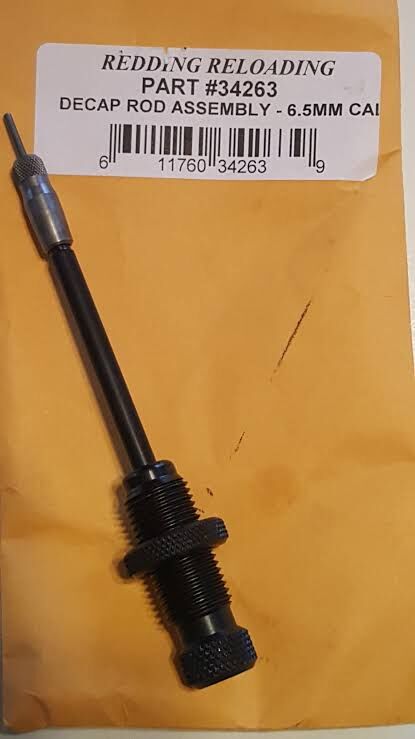

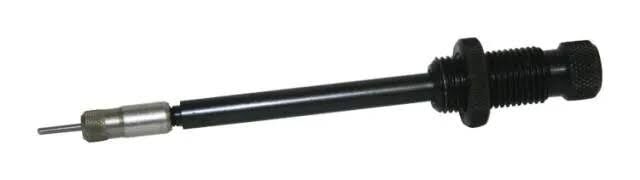

Redding Decapping Rod 34263 - Redding 34263

The Redding Decapping Rod Assembly (Part Number: 34263) is an OEM replacement part designed for Redding full-length resizing dies and neck sizing dies. During the reloading stroke, the assembly simultaneously decaps spent Boxer primers and uniforms the internal case neck diameter using an integrated 6.5mm (.264") expander ball. This factory assembly restores concentricity and alignment to reloading dies with bent, damaged, or worn spindle rods.

Key Features

Dual-Action Processing: Combines a replaceable steel decapping pin to punch out spent primers with a standard 6.5mm (.264") expander button to set internal case neck tension in one pass.
Modular Threaded Construction: Features threaded steel components allowing individual parts, such as the decapping pin or expander ball, to be detached, serviced, or replaced.
Direct OEM Alignment: Engineered specifically to match the internal thread pitch and depth specifications of Redding sizing dies across compatible 6.5mm cartridge lengths.

Product Specifications

Manufacturer Part Number: 34263
Compatible Calibres: 6.5x55mm Swedish Mauser (SE), 6.5-284 Winchester / Norma, 6.5mm Remington Magnum, 6.5x57mm Mauser, and .264 Winchester Magnum
Expander Ball Diameter: 6.5mm (.264")
Pin Compatibility: Standard ~0.080" Boxer flash holes
Die Compatibility: Standard Redding full-length and neck sizing dies
Power Requirements: Manual mechanical operation (None)

Who is the Redding 6.5x55 Se, 6.5/284 Win, 6.5mm Rem Mag, 6.5x57 Mauser, 264 Win Mag Decapping Rod Assembly for?

Handloaders reloading 6.5x55mm Swedish Mauser ammunition with Redding dies — restores damaged sizing dies to correct neck tension using a factory-matched 6.5mm (.264") expander ball and integrated steel decapping rod assembly.
Precision rifle shooters reloading .264 Winchester Magnum cases on a reloading bench — maintains uniform internal neck diameters of 6.5mm (.264") and consistent Boxer primer ejection across magnum-length case sizing operations using this dedicated decapping assembly.

Less suitable for: Target cases featuring small flash holes measuring ~0.060" or Berdan-primed brass (which require dedicated small-pin decapping assemblies or manual Berdan decapping tools), Redding Type S Bushing Dies operating without an expander button (which require dedicated Type S decapping assemblies), or non-Redding dies with incompatible internal thread pitches.

SKU	RD41514LP
Model #	34263
Brand	Redding
Shipping Weight	1.0000kg
