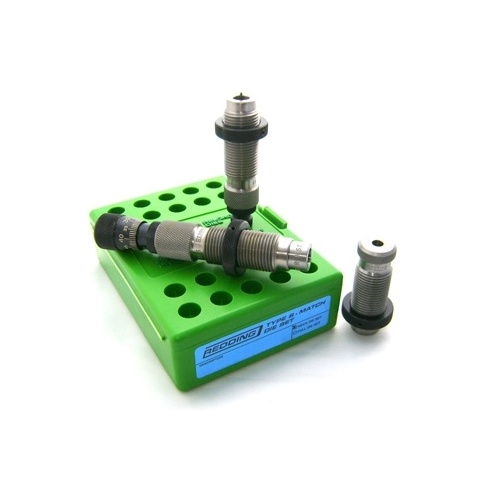

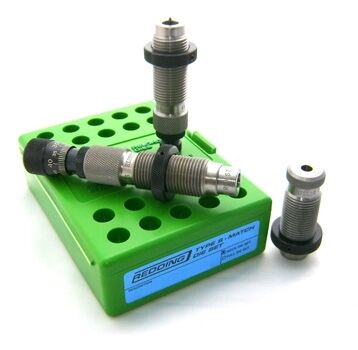

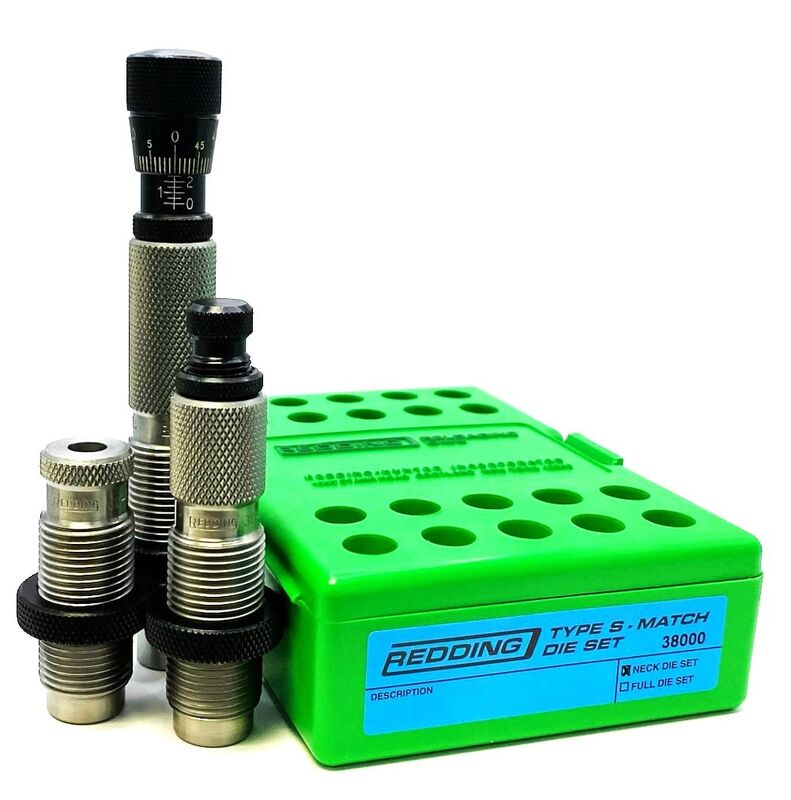

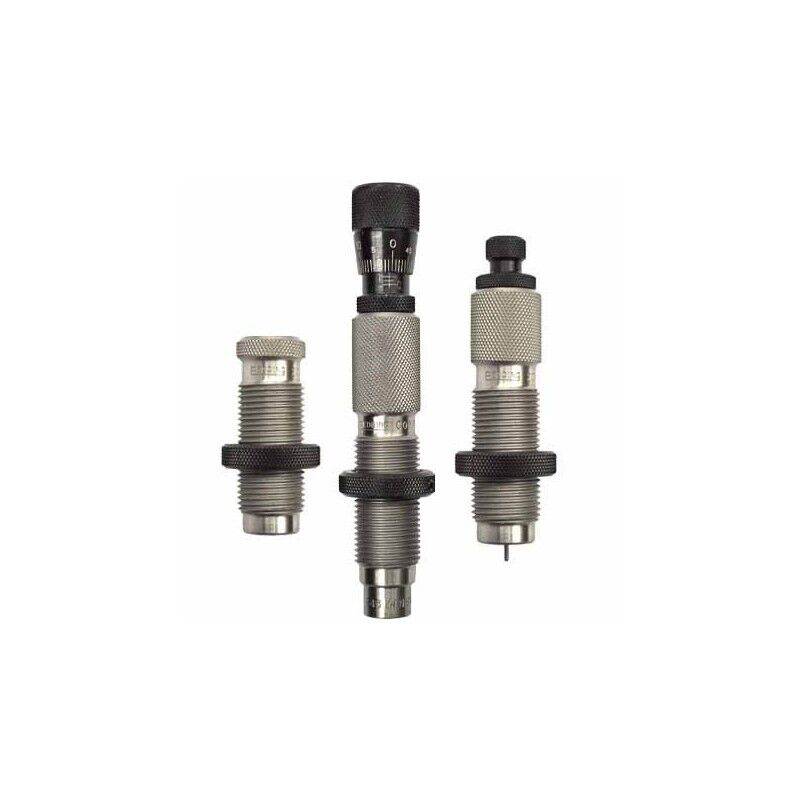

The Redding Type S Match Bushing Neck Die Set (MPN: 38479) is a three-die system engineered for precision handloaders crafting match-grade 6.5x47mm Lapua ammunition. Built from heat-treated, case-hardened steel, this set allows handloaders to precisely manage neck tension, restore body dimensions on fire-formed brass without touching the neck, and seat .264" projectiles with minimal concentricity runout. The set interfaces with standard reloading presses via industry-standard 7/8"-14 threads.

Key Features

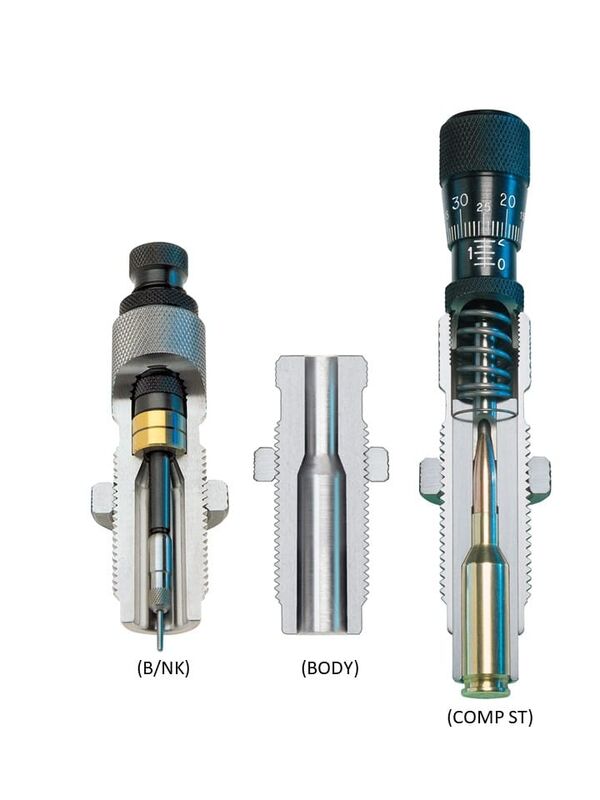

• Interchangeable Bushing Neck Sizing: The Type S Bushing Neck Sizing Die utilises freely floating, self-centering bushings (available separately in .001" increments) to size case necks without overworking the brass, and includes a decapping pin retainer for sizing without an expander button.
• Dedicated Shoulder and Body Sizing: The included Body Die bumps case shoulders back and resizes the case body on fire-formed cases that develop tight bolt-close resistance, without contacting or altering the case neck.
• Micrometer Competition Seating: The Competition Seating Die features a calibrated micrometer top adjustable in .001" increments alongside a floating bullet seating stem and cartridge alignment sleeve to ensure straight-line projectile seating.
• Adjustable Sizing Depth: The decapping rod assembly allows the operator to size either the entire length of the case neck or a selected partial length.

Specifications

• Calibre: 6.5x47mm Lapua (for .264" diameter bullets)
• Die Thread: Standard 7/8"-14 threading
• Shellholder Compatibility: Redding #1 Shellholder or Redding Competition Shellholder #1 (sold separately)
• Material: Heat-treated, case-hardened steel
• Included Components: Type S Bushing Neck Die, Body Die, Competition Seating Die, spare decapping pin retainer, and molded plastic storage case

Who is the Redding Type S Match Neck Die Set for?

• Precision Rifle Shooters — requires precise neck tension control in .001" increments using interchangeable bushings to minimise velocity Extreme Spread (ES) and Standard Deviation (SD) across fire-formed 6.5x47mm Lapua brass.
• PRS and Long-Range Benchrest Handloaders — relies on the Competition Seating Die's .001" micrometer gradations and floating alignment sleeve to seat projectiles with straight-line concentricity on standard 7/8"-14 threaded presses.
• Bolt-Action Rifle Owners — uses the dedicated Body Die to bump shoulders and resize case bodies for smooth chambering without disturbing tuned case neck dimensions.

Less suitable for: Handloaders running semi-automatic platforms or operating in high-dust hunting conditions requiring guaranteed cycling and chamber clearance; a full-length sizing die set or small-base die set is recommended over a neck-sizing configuration.
