Will this die work with standard .260 Remington factory brass or other 6.5mm cartridges like the 6.5 Creedmoor?

No, this die is specifically cut with chamber reamers to match the .260 Remington Ackley Improved 40-degree shoulder specification. It is not suitable for standard .260 Remington 20-degree cases, 6.5 Creedmoor, or other 6.5mm cartridges without using their own dedicated dies.

Can I use the Redding 55623 competition seating die with heavily compressed powder loads?

The manufacturer explicitly advises against using competition seating dies with heavily compressed powder loads. Excessive upward pressure against the seating stem and micrometer mechanism can cause damage or lead to inconsistent seating depths, meaning a standard seating die is recommended for heavy powder charges.

What shellholders are compatible with this 7/8"-14 threaded seating die on an Australian reloading bench?

This die features a standard 7/8"-14 external threaded body compatible with most single-stage and progressive reloading presses used in Australia. It requires a standard #1 shellholder (Redding Part #11001) or a Redding Competition Shellholder #11601, which are sold separately.

Does this Redding competition seating die include an integrated crimp feature for my long-range loads?

No, this is purely a precision bullet seating die and does not incorporate a roll or taper crimp ring. If your specific load requires a crimp, you will need to perform that as a separate step using a dedicated crimping die.

260 Rem Ackley Die - Redding 55623

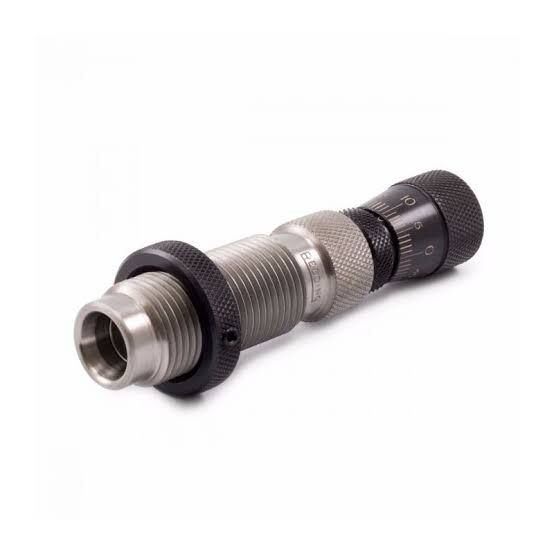

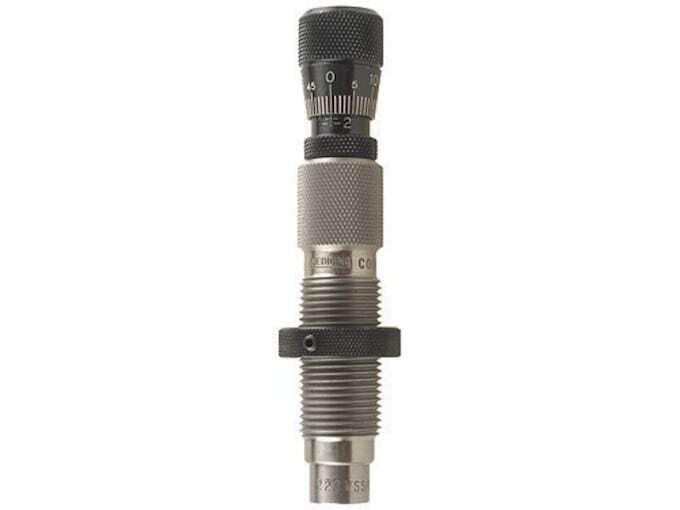

The Redding 260 Rem Ackley Improved 40° Competition Seating Die (MPN 55623) is a specialised reloading tool engineered for handloaders seeking minimal radial runout and precise cartridge overall length (COAL). Built with a standard 7/8"-14 threaded body, this die fits standard reloading presses and uses an internal, precision-ground sliding chamber sleeve to support both the cartridge case and the bullet in perfect alignment before seating begins. Depth adjustments are controlled via an integrated micrometer head graduated in 0.001" increments (0.050" per full revolution), allowing exact, repeatable bullet seating depth changes without guesswork.

Key Features

Patented Alignment Sleeve: The precision-machined sliding sleeve fully captures and aligns the .260 Remington Ackley Improved case neck and 0.264" (6.5 mm) bullet simultaneously prior to seating.
Micrometer Depth Adjustments: Features a non-clicking, infinitely adjustable micrometer graduated in 0.001" steps with a re-settable "zero" reference for exact seating depth management.
Free-Floating Seating Stem: Comes fitted with a precision-ground standard seating stem (Part #55046) designed to seat 0.264" projectiles concentrically without deforming bullet ogives.
Standard Press Interface: Features standard 7/8"-14 external threads for direct compatibility with standard single-stage and turret reloading presses.
Optional Stem Compatibility: Compatible with Redding's optional VLD seating stem (Part #55746) for very low drag projectile profiles.

Product Specifications

Brand / Manufacturer: Redding Reloading Equipment
Manufacturer Part Number (MPN): 55623
Cartridge Compatibility: .260 Remington Ackley Improved (40° shoulder)
Bullet Calibre: 0.264" (6.5 mm)
Die Thread Size: 7/8"-14 standard thread
Micrometer Adjustment Increments: 0.001" (0.050" per revolution)
Shellholder Fitment: Redding #1 Shellholder (#11001) or Competition Shellholder #11601 (sold separately)
Crimp Function: Dedicated seating only (no crimp ring)

Who is the Redding 260 Rem Ackley Improved 40° Competition Seating Die for?

Precision rifle handloaders — requires the 0.001" micrometer graduations and straight-line internal sleeve of this 6.5mm competition bullet seating die to achieve exact cartridge overall length across .260 Rem AI load batches.
Benchrest competitors — relies on the sliding alignment sleeve to eliminate radial bullet runout when seating 0.264" (6.5 mm) projectiles on standard 7/8"-14 threaded reloading presses.
Long-range hunters — utilizes the re-settable micrometer head with 0.050" travel per turn to rapidly adjust seating depth in precise 0.001" steps when developing tuned loads for .260 Remington Ackley Improved 40° rifles.

Less suitable for: Handloaders loading standard 20° shoulder .260 Remington cases or heavily compressed powder charges, which require a standard non-micrometer seating die or dedicated standard-shoulder die set to prevent mechanical strain on the micrometer assembly.

SKU	RD41656LP
Model #	55623
Brand	Redding
Shipping Weight	1.0000kg
