Will the Redding 55748 seating stem fit my standard Redding 2-Die set?

No, this specific stem is engineered exclusively as a drop-in, free-floating replacement for Redding Competition Bullet Seating Dies in 7mm. It is incompatible with Redding Standard 2-Die sets that use 1/2-20 threaded micrometer tops.

How does the VLD profile prevent bullet tip damage during long-range reloading?

Standard seating stems often bottom out on delicate polymer tips or high-BC meplats, causing deformation rings. The Model 55748 features a modified internal contact angle with a steeper geometry designed to engage the long secant ogive further down the bullet for uniform seating.

Are there any electrical safety certifications or 240V requirements for using this reloading component?

No. The Redding 55748 is a purely passive, non-powered mechanical tool made of precision-machined steel. Consequently, Australian 240V mains power and SAA or RCM electrical safety certifications are not applicable to this product.

Which specific 7mm bullet profiles require this 'Long' VLD stem rather than a standard stem?

This long profile stem is specifically designed for extended, high-BC 7mm (.284 calibre) VLD projectiles such as the Hornady ELD-Match, ELD-X, and Berger hybrids. Shorter or standard tangent-ogive bullets require Redding's standard profile stem instead.

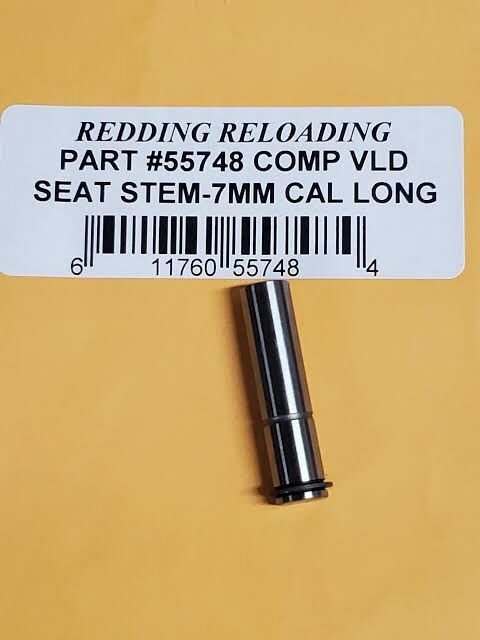

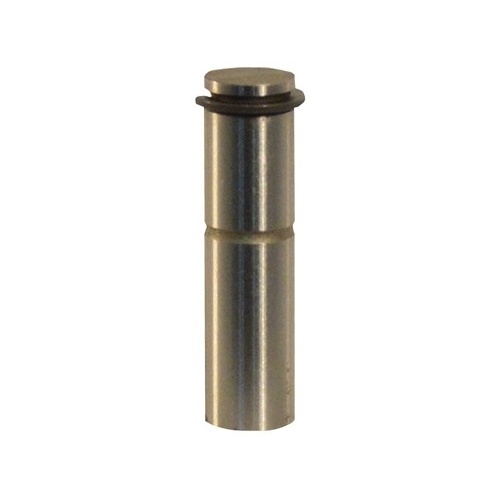

7mm VLD Seating Stem - Redding 55748

The Redding 55748 VLD Bullet Seating Stem is a precision-machined steel replacement component engineered specifically for Redding Competition Bullet Seating Dies. Designed to accommodate long, high-ballistic-coefficient (BC) 7mm (.284 calibre) Very Low Drag (VLD) projectiles, this stem eliminates meplat bottoming and prevents nose deformation. By altering the internal contact geometry to bear against the bullet's secant ogive rather than the fragile tip, it preserves aerodynamic integrity and ensures consistent seating depth across match-grade handloads.

Key Features

Optimised VLD Contact Angle: Features a deeper internal taper designed specifically to seat long secant-ogive projectiles on the ogive, preventing jacket ring marking and meplat tip damage.
Free-Floating Die Integration: Integrates directly into the straight-line internal sleeve of Redding Competition Seating Dies to maintain alignment and minimise total indicated runout (TIR).
Precision Machined Steel: Manufactured from ground steel for tight tolerances and repeatable seating depth across extended loading sessions.
Calibre-Specific Profile: Engineered to seat long 7mm projectiles across various bottleneck cases, including 7mm-08 Remington, 7mm Remington Magnum, 7mm PRC, 7mm SAUM, and .284 Winchester.

Specifications

Manufacturer Part Number (MPN): 55748 (RED55748 / R55748)
Calibre Compatibility: 7mm (.284 calibre)
Bullet Profile: Long VLD (Very Low Drag) / secant ogive
Die Compatibility: Redding Competition Bullet Seating Dies only
Material: Precision-machined and ground steel
Packaged Dimensions: 5.00 × 3.00 × 0.30 inches (~127 × 76 × 7.6 mm)
Packaged Weight: Approximately 0.1 lb (~45 g)
Power Requirements: None (manual mechanical tool)

Who is the Redding 55748 VLD Seating Stem for?

Competitive long-range target shooters — loading high-BC 7mm (.284 calibre) projectiles who need a dedicated seating stem that contacts the secant ogive without damaging delicate meplats or distorting bullet tips during the seating stroke.
Precision handloaders — utilising Redding Competition Seating Dies across 7mm (.284 calibre) bottleneck cartridges who require tight-tolerance, free-floating bullet seating stems to preserve straight-line concentricity and reduce runout.

Less suitable for: Handloaders using Redding Standard 2-Die sets with 1/2-20 threaded micrometer tops, or those seating shorter standard tangent-ogive 7mm (.284 calibre) projectiles, which require standard-profile seating stems (such as Redding Part #55028 or #55728) or threaded micrometer plugs instead.

SKU	RD102738LP
Model #	55748
Brand	Redding
Shipping Weight	0.1000kg
