What components are included in the Redding 60594 Elite Bushing Die Set for .338 Lapua Magnum?

The Redding 60594 Elite 3-Die Set includes the Type S Full-Length Bushing Sizing Die (Part #77594), the Type S Bushing Neck Sizing Die (Part #71594), and the Competition Bullet Seating Die (Part #55594). It features industry-standard 7/8"-14 threading for full compatibility with standard Australian reloading presses.

Are neck bushings included in the set, and what size do I need for .338 Lapua Magnum?

Neck bushings are sold separately and are not included in the 60594 die set. For the .338 Lapua Magnum cartridge, the recommended bushing range is between 0.360" and 0.368", available in steel or titanium nitride depending on your preference.

Can I use the Redding Competition Seating Die with heavily compressed powder loads?

No, the manufacturer explicitly notes that the Redding Competition Seating Die included in this set must not be used for heavily compressed powder charges. Excessive force from compressed loads can damage the internal micrometer seating stem mechanism, so a standard seating die is recommended if you are working with high-density compressed charges.

What shellholder do I need to use this die set on my reloading press in Australia?

You will need a Redding Standard Shellholder #35 (Part #11035) or the Redding Competition Shellholder Set #35, which are sold separately. The dies themselves feature standard 7/8"-14 threads that fit smoothly into popular single-stage and turret presses commonly found on Australian reloading benches.

338 Lapua Die Set - Redding 60594

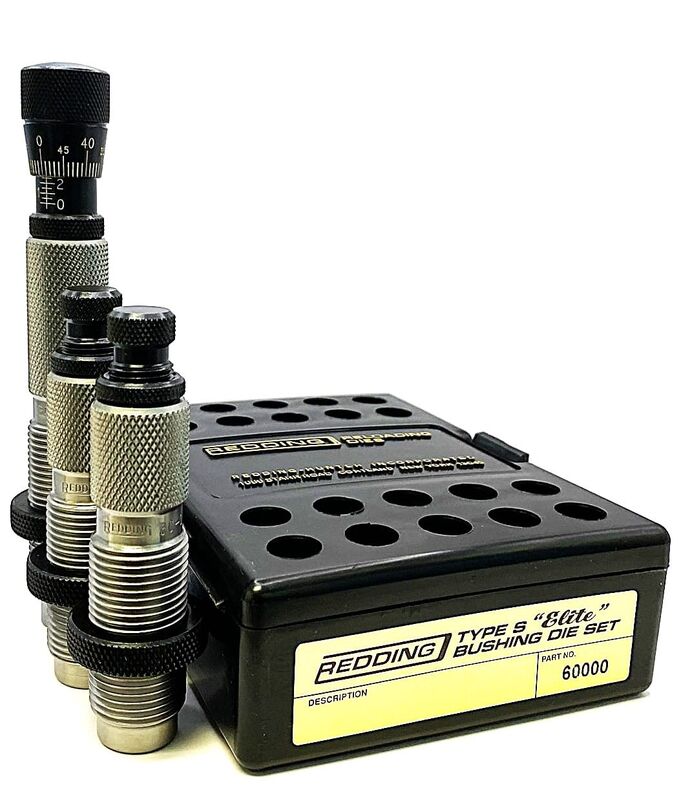

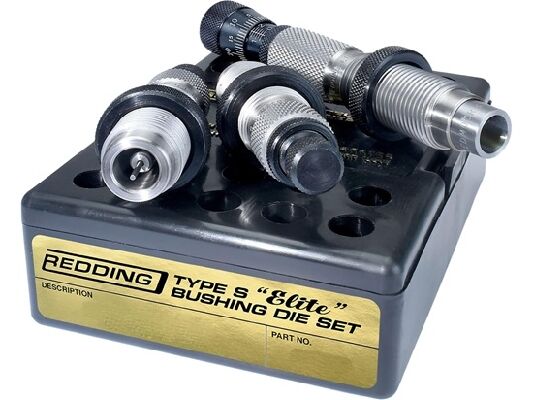

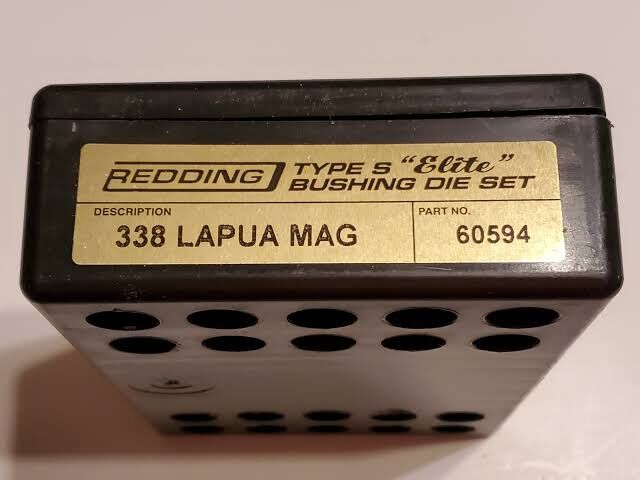

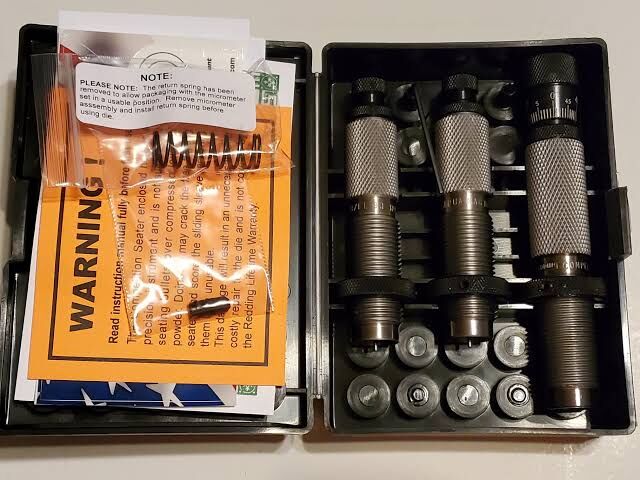

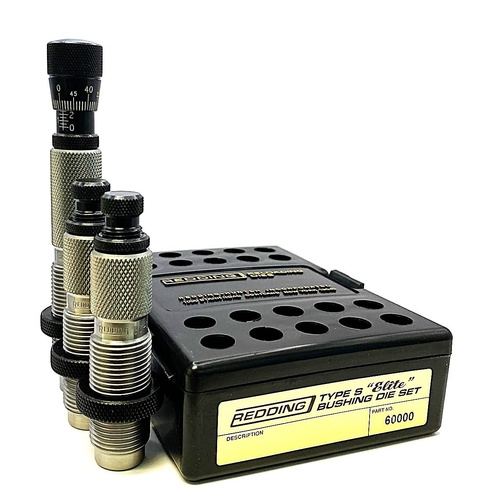

The Redding Type S – "Elite" Bushing Die Set (.338 Lapua Magnum, Model 60594) is a dedicated three-die precision reloading system built for handloaders assembling match-grade ammunition for 0.338" bullet diameter platforms. Designed with standard 7/8"-14 threading to fit conventional reloading presses, this mechanical set includes a Type S Full-Length Bushing Sizing Die (Part #77594), a Type S Bushing Neck Sizing Die (Part #71594), and a Competition Bullet Seating Die (Part #55594). It allows reloaders to precisely control neck tension via interchangeable self-centring bushings and seat projectiles with minimal runout using a micrometer-adjustable sliding alignment sleeve.

Key Features

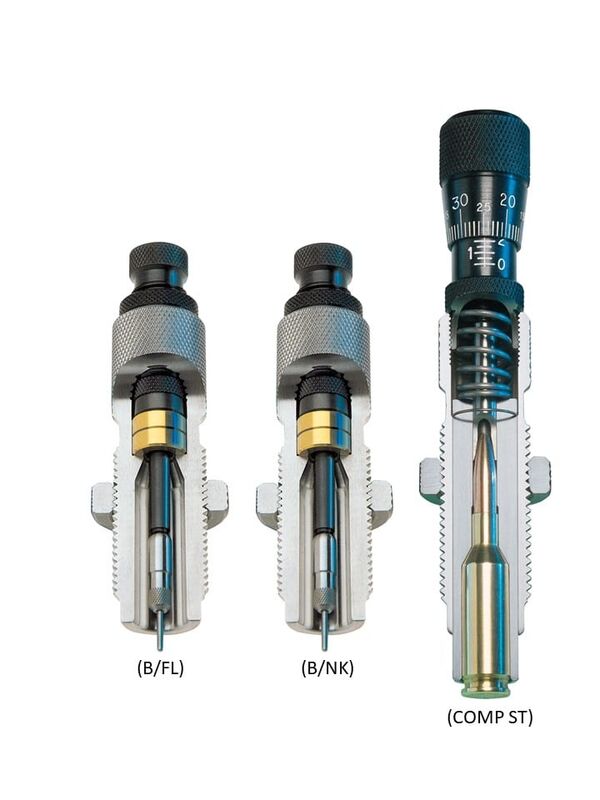

Three-Die Elite Configuration: Contains full-length bushing resizing, neck-only bushing resizing, and competition seating dies for complete case-forming control.
Interchangeable Bushing System: Utilises standard Redding neck sizing bushings across a recommended 0.360" to 0.368" diameter range (bushings available separately) to prevent overworking case brass.
Decapping Versatility: Includes both a standard sizing expander button and a decapping pin retainer for sizing brass without internal neck expansion.
Competition Micrometer Seating: Features an internal sliding sleeve that aligns the case and projectile before seating, managed by a top-mounted micrometer head graduated in 0.001" increments.
Press Compatibility: Machined with industry-standard 7/8"-14 threads for compatibility with single-stage and turret reloading presses using standard #35 shellholders.

Product Specifications

Cartridge: .338 Lapua Magnum
Bullet Diameter: 0.338"
Die Thread Interface: 7/8"-14
Micrometer Adjustment Increment: 0.001"
Recommended Bushing Range: 0.360" to 0.368"
Set Components: Type S Full-Length Die (#77594), Type S Neck Die (#71594), Competition Seating Die (#55594)
Required Shellholder: Redding #35 (sold separately)
Shipping Weight: Approximately 1.1–1.3 kg

Who is the Redding 338 Lapua Magnum Type S - Elite Bushing Die Set for?

Extreme long range target shooters — requires exact neck tension across a 0.360" to 0.368" recommended bushing range combined with 0.001" micrometer seating depth adjustments to assemble match-grade .338 Lapua Magnum ammunition.
F-Class competitors — benefits from this 338 Lapua Magnum reloading die set's internal sliding alignment sleeve and 0.001" graduated micrometer head to minimise bullet runout for consistent long-range accuracy.
Hunters assembling custom match cartridges — requires the 7/8"-14 threading interface and dual full-length and neck-only sizing dies to tailor brass fit to specific 0.338" bullet diameter rifle chambers.

Less suitable for: Handloaders assembling heavily compressed powder charges, as the excessive force can damage the 0.001" internal micrometer seating stem mechanism; standard non-micrometer seating dies are better suited for compressed loads.

SKU	RD41694LP
Model #	60594
Brand	Redding
Shipping Weight	1.0000kg
