What reloading presses are compatible with the Redding 66120 25-06 Remington die set?

The Redding 66120 features industry-standard 7/8"-14 threaded bodies, making it fully compatible with almost all single-stage, turret, and progressive reloading presses from major brands such as Redding, RCBS, Hornady, Lyman, and Lee. It is engineered specifically for the 25-06 Remington cartridge and fits standard press ram configurations.

Does the Redding 66120 die set come with a shellholder, or do I need to purchase one separately?

The Redding #1 shellholder is not included in the 66120 set and must be purchased separately. You will need a compatible #1 shellholder to secure your 25-06 Remington brass into your reloading press ram before beginning the sizing and seating operations.

How precise is the bullet seating adjustment on this Redding premium die set?

The seating die included in the 66120 set is equipped with a Standard Bullet Seating Micrometer head that allows direct-reading adjustments in 0.001" increments or less. This high level of mechanical precision enables handloaders to easily dial in, repeat, and fine-tune specific Cartridge Overall Length (COAL) and bullet jump for enhanced target and hunting accuracy.

Does this full-length sizing die require inside case neck lubrication during the sizing stroke?

No, the full-length sizing die in the 66120 set is equipped with a factory-installed carbide expander/size button. The carbide button significantly reduces friction inside the case neck during the sizing stroke, minimizing neck stretching and brass fatigue without requiring internal neck lubrication.

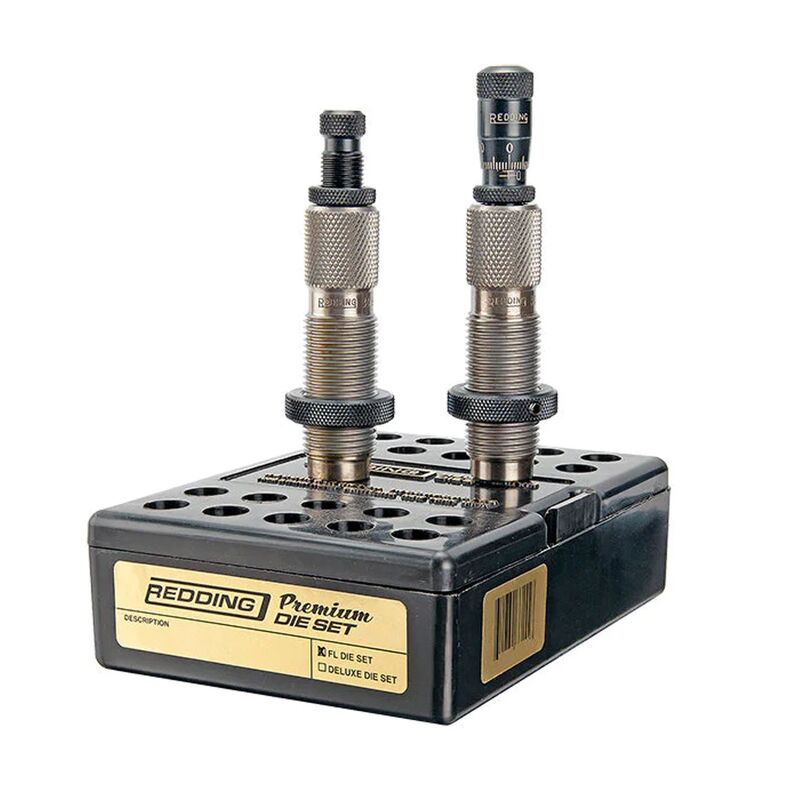

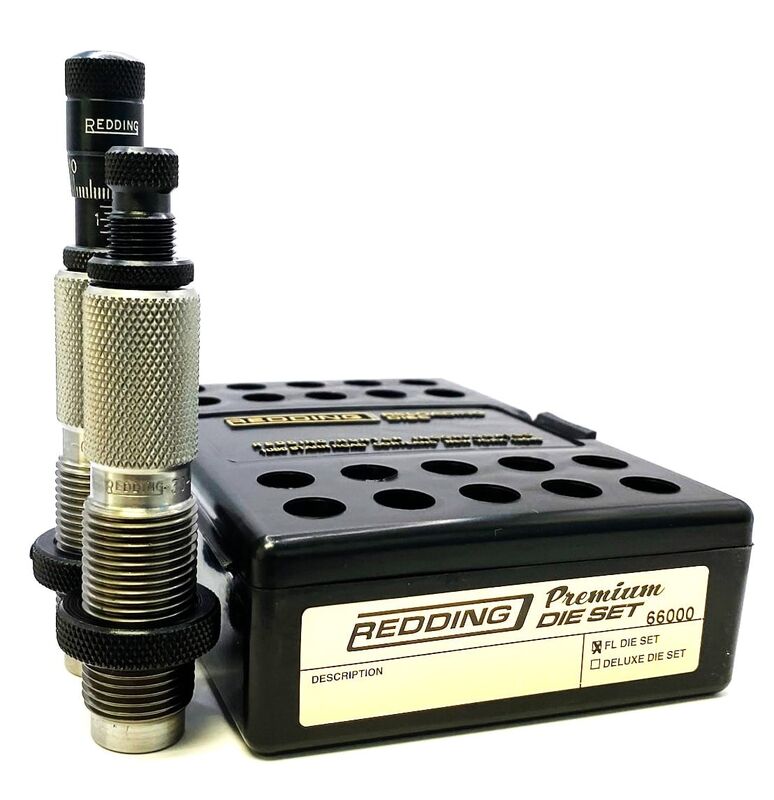

25-06 Die Set - Redding 66120

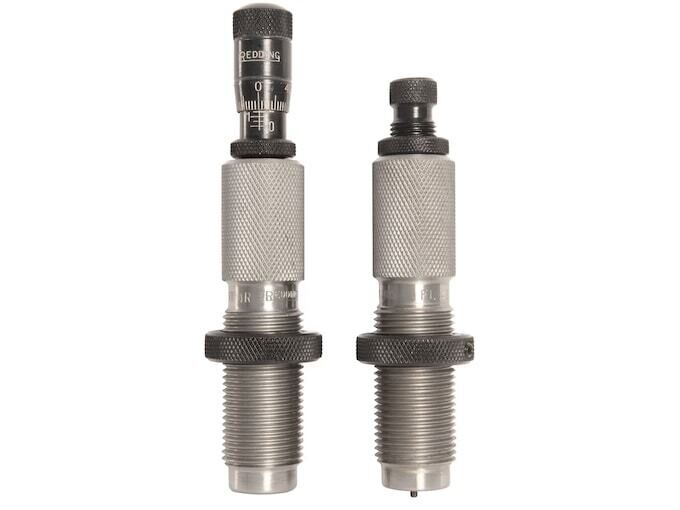

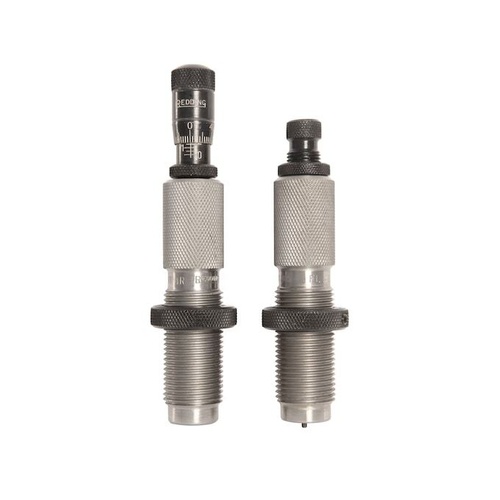

The Redding 25-06 Remington Premium Full Length Die Set (Model 66120) is a 2-die mechanical reloading system designed to return fired brass to factory SAAMI dimensions and seat 0.257" diameter projectiles. Engineered for standard 7/8"-14 threaded reloading presses, this set includes a full-length sizing die equipped with a free-floating carbide expander button and a dedicated seating die featuring a Standard Bullet Seating Micrometer head. The system ensures smooth feeding across factory rifle chambers while allowing handloaders to precisely establish and repeat Cartridge Overall Length (COAL).

Key Features

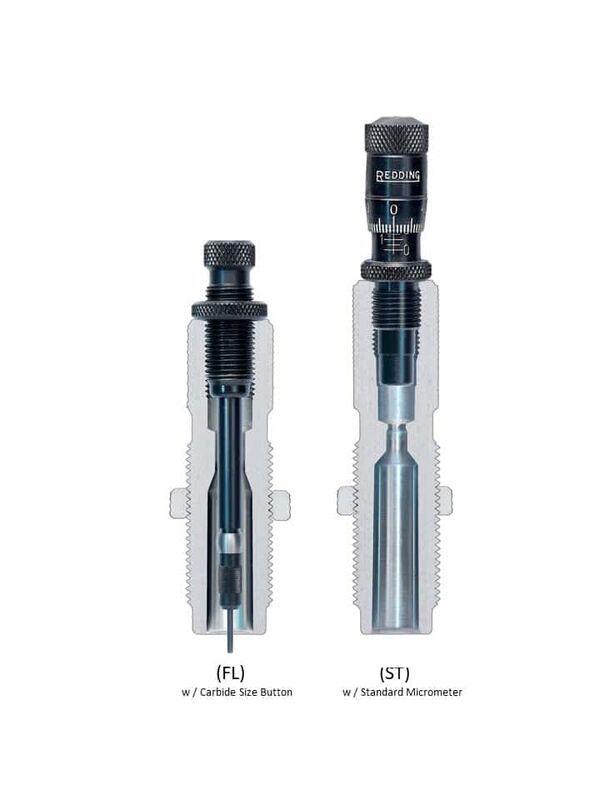

Full-Length Sizing Die: Restores fired brass to factory SAAMI specifications for reliable feeding and chambering across various actions.
Carbide Expander Button: Free-floating design reduces internal neck friction and brass stretching during the sizing stroke without requiring inside-neck lubrication.
Micrometer Seating Stem: Direct-reading micrometer enables bullet seating depth adjustments in 0.001" increments to fine-tune projectile jump.
Universal Press Threading: Built with industry-standard 7/8"-14 threads to fit single-stage, turret, and progressive reloading presses.

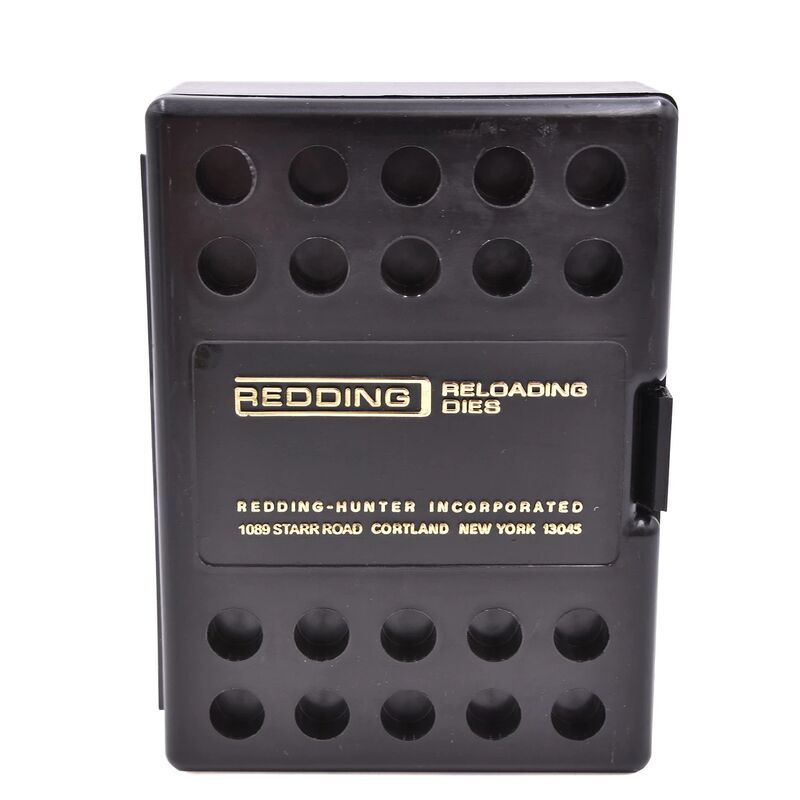

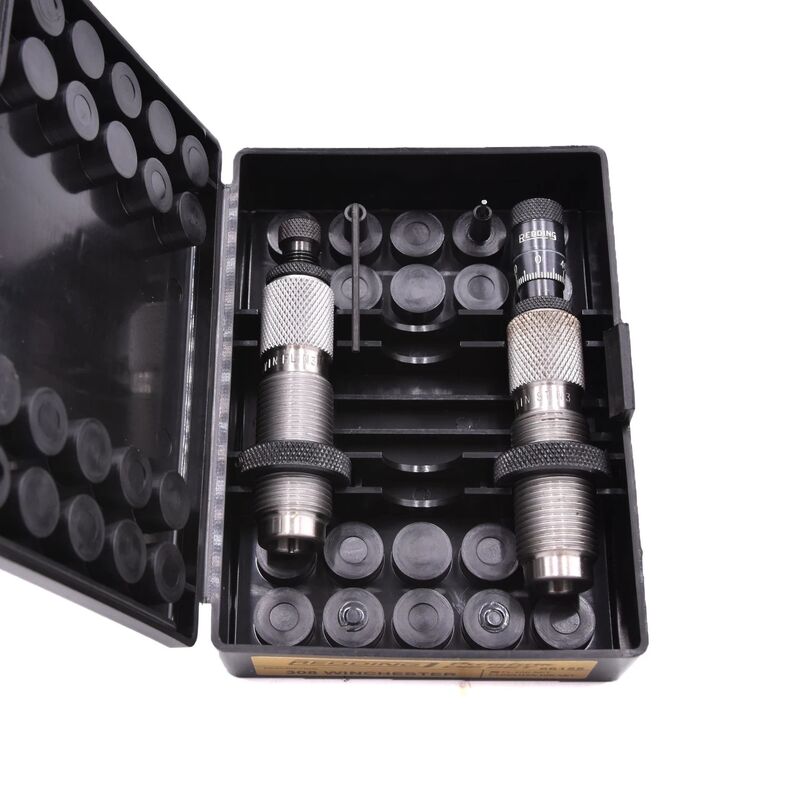

Protective Packaging: Supplied in a dedicated storage box with an instruction sheet; total packaged weight is approximately 0.5 to 0.6 kg (1.1 to 1.3 lbs).

Product Specifications

Calibre Compatibility: .25-06 Remington
Compatible Bullet Diameter: 0.257"
Thread Interface: 7/8"-14 thread
Adjustment Increment: 0.001" (seating micrometer)
Shellholder Requirement: Redding #1 shellholder (sold separately)
Set Configuration: 2-Die Set (Full-Length Sizer with Carbide Expander, Micrometer Seating Die)

Who is the Redding 25-06 Remington Premium Full Length Die Set for?

Precision target handloaders — requires direct-reading seating depth control in 0.001" increments to dial in Cartridge Overall Length and bullet jump on 25-06 Remington reloading die sets for medium-to-long-range shooting.
Hunters and pest control shooters — relies on full-length case sizing down to SAAMI dimensions and standard 7/8"-14 thread press compatibility to ensure reliable cartridge cycling when hunting foxes, feral pigs, and deer with .25-06 Remington rifles.

Less suitable for: Handloaders reloading .257 Roberts, 6.5-06, or standard .30-06 cases, which require calibre-specific dies, or shooters seeking neck-only sizing for fire-formed brass in a single rifle, who require a dedicated neck-sizing die or 3-die set.

SKU	RD41700LP
Model #	66120
Brand	Redding
Shipping Weight	1.0000kg
