Can I use the Redding 66135 die set for my .270 WSM or .270 Weatherby Magnum brass?

No, this die set is strictly limited to standard .270 Winchester brass cases and is not interchangeable with other .270-calibre variants like .270 WSM or .270 Weatherby Magnum. Attempting to use them with non-standard case dimensions can damage the equipment and your brass.

What shellholder do I need to use with the Redding Premium Series 66135 set on my reloading press?

This die set features industry-standard 7/8"-14 threads compatible with most standard reloading presses, but it requires a Redding Shellholder #1, such as the standard part #11001 or competition part #11601, which is sold separately. The dies themselves weigh approximately 0.45 kg and are built for heavy-duty mechanical reloading.

Does this Premium Series die set require any electrical compliance or SAA/RCM certification for use in Australia?

No, the Redding 66135 is a completely manual, unpowered mechanical handloading tool requiring no 240V mains power, batteries, or AU plugs. Because it contains no electrical components, it is entirely exempt from Australian SAA or RCM electrical compliance certifications for outback or home reloading benches.

What makes the bullet seating adjustment in the Redding 66135 set suitable for match-grade precision?

The included standard seating die is factory-fitted with a Standard Bullet Seating Micrometer that permits exact seating depth adjustments in increments of 0.001 inches. Additionally, the full-length sizing die features a factory-installed carbide expander button to smooth out case neck expansion without requiring traditional neck lube.

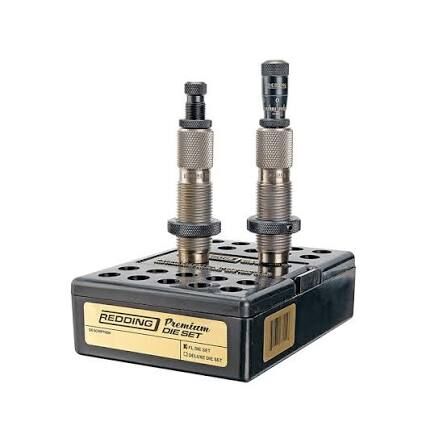

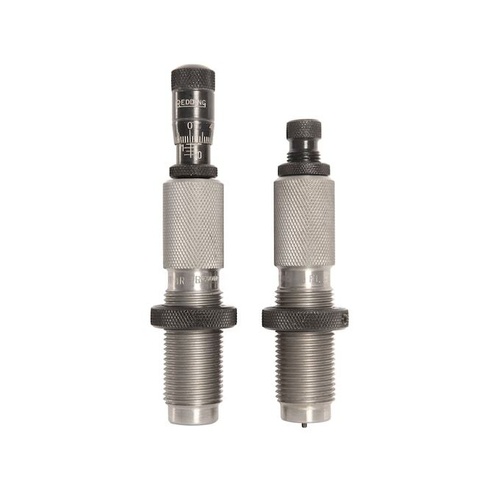

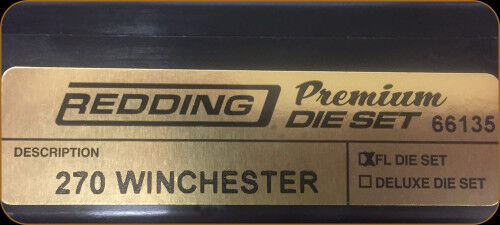

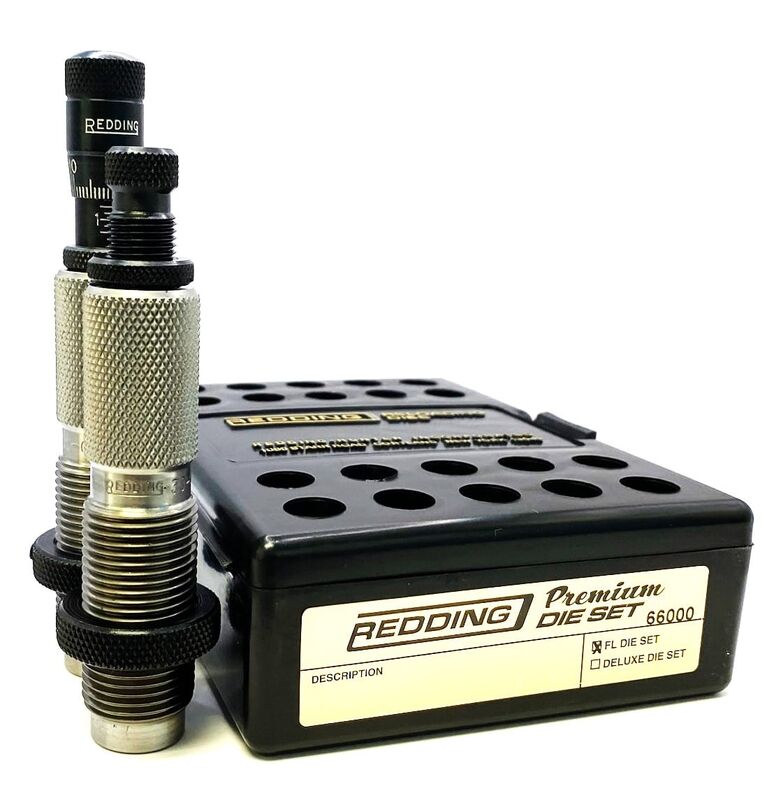

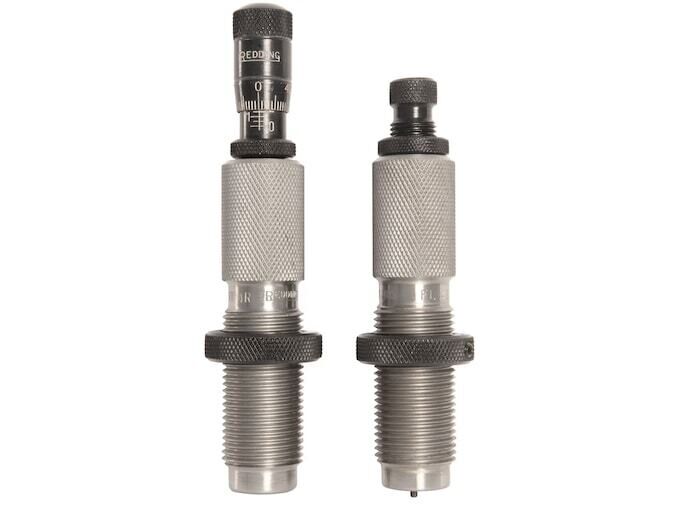

270 Win Die Set - Redding 66135

The Redding 270 Win Premium Series Full Length Die Set (SKU: 66135) is a two-die handloading kit engineered to full-length resize fired brass and seat .277" diameter bullets for .270 Winchester cartridges. Machined from heat-treated alloy steel, the set features a full-length sizing die equipped with a free-floating carbide expander button and a dedicated bullet seating die factory-fitted with a micrometer seating head. Designed to return brass cases to standard SAAMI dimensions for reliable cycling in hunting and sporting rifles, it mounts to standard single-stage and progressive reloading presses using industry-standard 7/8"-14 threads.

Key Features

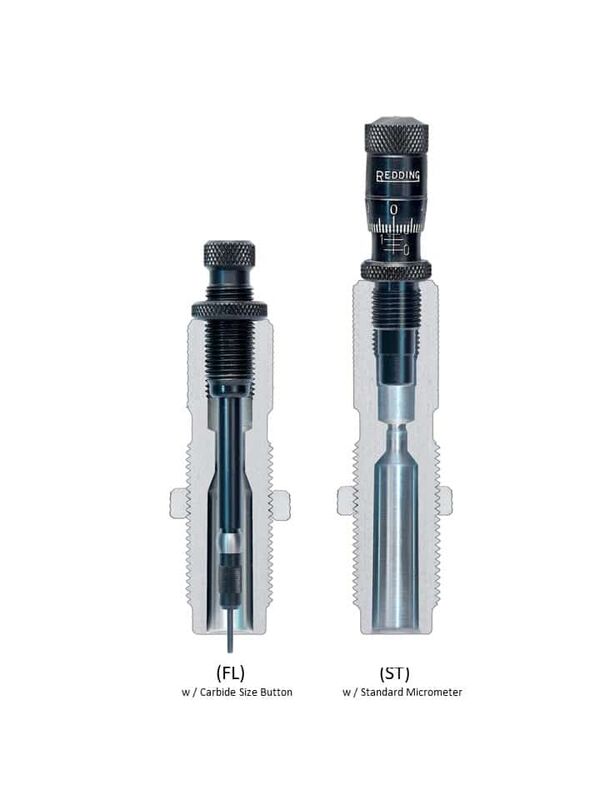

Carbide Expander Button: Integrated directly into the full-length sizing die to expand case necks smoothly without inside-neck lubrication, minimising brass stretch and maintaining case concentricity.
Micrometer Seating Head: Integrated into the seating die to allow direct seating depth and overall cartridge length (OAL) adjustments in precise 0.001" increments.
Full-Length Resizing: Restores fired cartridge cases to factory SAAMI chamber specifications to ensure smooth chambering in bolt-action and field rifles.
Press Compatibility: Built with standard 7/8"-14 threads for compatibility with conventional reloading presses.

Specifications

Calibre: .270 Winchester
Bullet Diameter Compatibility: 0.277"
Die Set Style: 2-Die Full-Length Set
Thread Pitch: 7/8"-14
Shellholder Compatibility: Redding Shellholder #1 (#11001 or #11601, sold separately)
Shipping Weight: 0.45 kg (1.0 lb)
Included Components: 1 × Full-Length Sizing Die with Carbide Size Button, 1 × Seating Die with Bullet Seating Micrometer, 1 × Plastic Storage Box

Who is the Redding 270 Win Premium Series Full Length Die Set for?

Handloaders loading 270 Winchester hunting ammunition — Delivers complete full-length resizing to ensure reliable chamber feeding, pairing a full-length sizing die with industry-standard 7/8"-14 threads to fit standard reloading presses.
Reloaders seeking match-grade seating depth adjustability — Features a built-in micrometer seating head on this 270 Winchester reloading die set that enables precise bullet seating depth changes in 0.001" increments.

Less suitable for: Reloading other .270-calibre variants; this set is strictly limited to .270 Winchester cases and will not chamber or resize .270 WSM or .270 Weatherby Magnum brass, which require calibre-specific magnum die sets. It is also not intended for neck-only sizing fire-formed cases, which requires a neck-sizing die set, or ultra-low-drag projectiles that require a dedicated VLD seating stem.

SKU	RD41702LP
Model #	66135
Brand	Redding
Shipping Weight	1.0000kg
