Will this die set work for resizing other Creedmoor calibres like 6mm or 6.5 Creedmoor?

No, this specific die set is strictly engineered for the 22 Creedmoor cartridge utilising a .224 inch bullet diameter. It will not properly size other cartridges in the Creedmoor family without using distinct, cartridge-specific dies.

Do I need to purchase a separate shellholder to use the Redding 66302 die set?

Yes, a shellholder is not included in this 2-die set and must be purchased separately. You will need a standard Redding Shellholder number 1 or a Redding Competition Shellholder number 1 to operate properly with your press.

Are there any electrical compliance requirements or 240V plugs needed for this reloading tool?

No, this is a purely mechanical, non-powered handloading tool that mounts into standard 7/8 inch-14 threaded presses requiring zero electricity. Therefore, 240V mains power and SAA/RCM electrical approvals do not apply to this product.

How does the included seating micrometer help with precision handloading?

The bullet seating die features a top-mounted precision seating micrometer graduated to 0.001 inches, allowing for fine, direct adjustments to your cartridge overall length. It is also built to properly accommodate modern high-BC and VLD projectile profiles without deforming their tips.

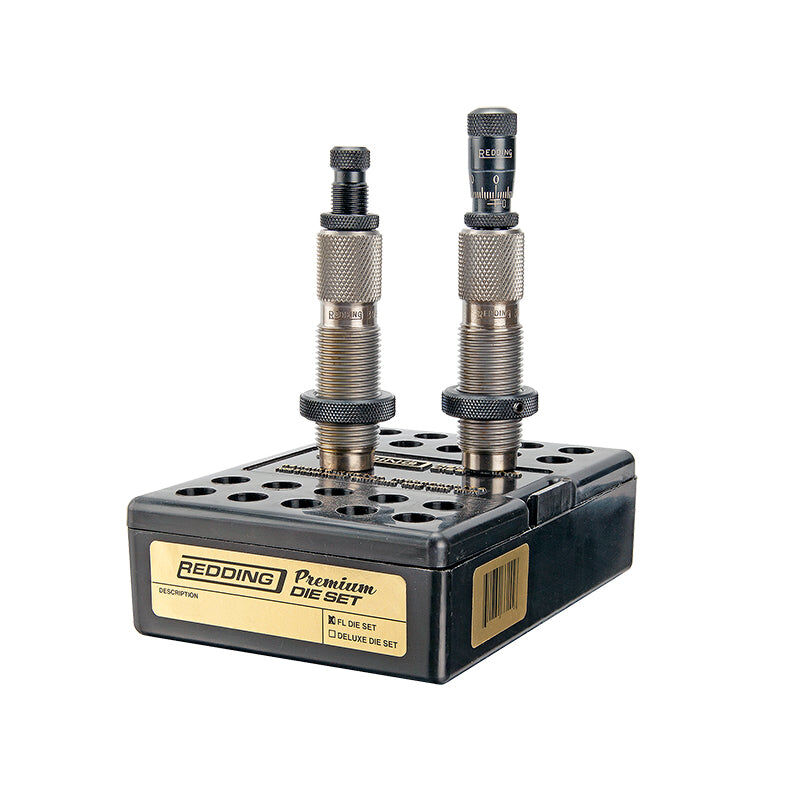

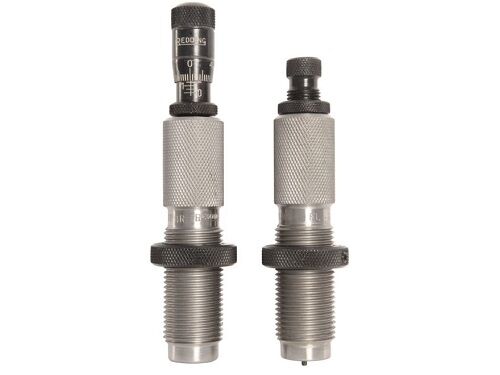

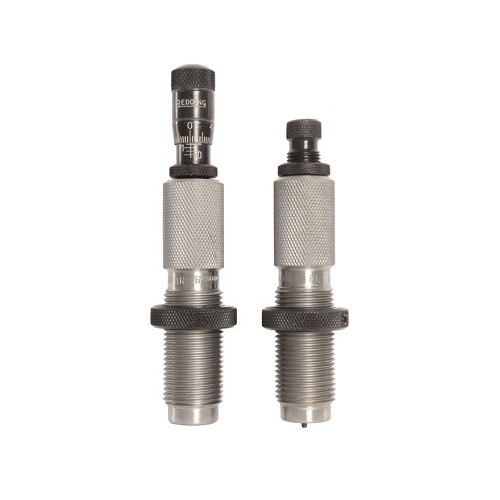

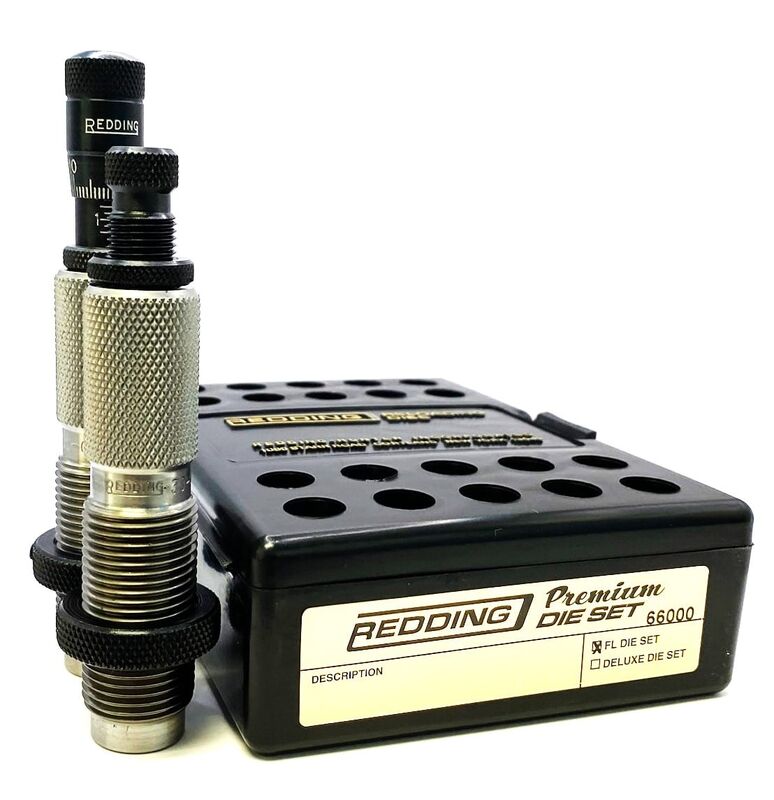

22 Creedmoor Die Set - Redding 66302

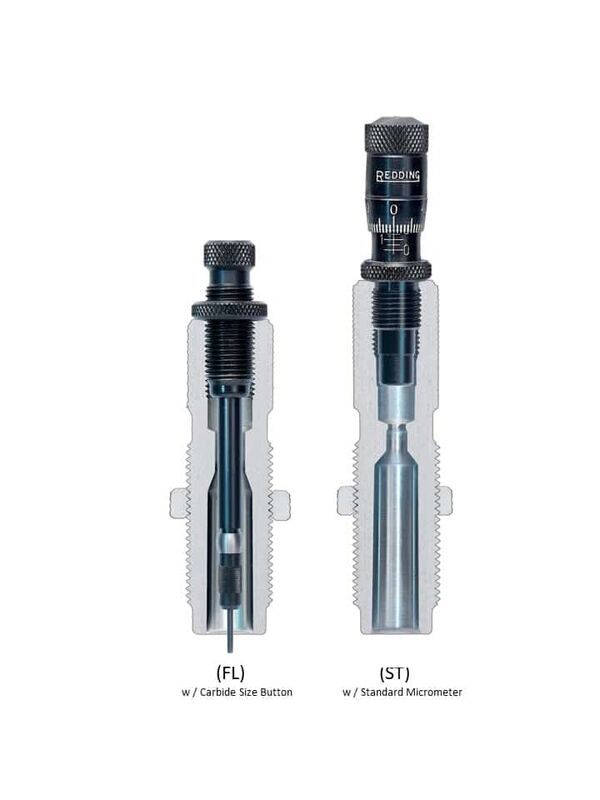

The Redding 22 Creedmoor Premium Series Full Length Die Set (MPN: 66302) is a precision 2-die mechanical reloading system engineered for resizing and seating bottleneck cartridges. Built to fit standard reloading presses via industry-standard 7/8"-14 threading, this set restores fired 22 Creedmoor brass back to factory dimensions across the body, neck, and shoulder headspace. The set includes a full-length sizing die equipped with a free-floating carbide expander button to reduce neck friction and stretch without inside-neck lube, alongside a dedicated bullet seating die integrated with a top-mounted seating micrometer graduated to 0.001" adjustments for precise cartridge overall length (COAL) control.

Key Features

Carbide Size Button: The free-floating carbide expander button glides through case necks smoothly, reducing brass stretch and eliminating the requirement for internal neck lubrication.
Bullet Seating Micrometer: Features direct micrometer adjustments graduated in 0.001" increments to fine-tune bullet seating depth and maintain consistent cartridge overall length.
VLD Projectile Compatibility: Accommodates modern high-BC and secant/Very Low Drag (VLD) bullet profiles without damaging or deforming the ogive during seating.
Full-Length Restoration: Resizes the cartridge case body, decaps spent primers, and bumps the shoulder back to SAAMI specifications for dependable feeding in bolt-action and semi-automatic rifles.

Specifications

Calibre Compatibility: 22 Creedmoor (.224" bullet diameter)
Die Threading: Industry-standard 7/8"-14 thread
Set Composition: 2-Die Set (Full-Length Sizer with Carbide Expander, Seating Die with Seating Micrometer)
Shellholder Compatibility: Standard Redding Shellholder #1 (Part #11001) or Competition Shellholder #1 (Part #11601) (sold separately)
Packaged Weight: Approximately 1.30 lbs (0.59 kg)
Packaged Length: Approximately 6.00 inches
Operation: Non-powered, manual mechanical press mounting

Who is the Redding 22 Creedmoor Premium Series Full Length Die Set for?

Precision rifle competitors — requires 0.001" graduated micrometer seating adjustments on standard 7/8"-14 threaded presses to achieve consistent cartridge overall length and bullet alignment when loading .224" diameter projectiles for match use.
Long-range varmint hunters — utilises a 22 Creedmoor reloading die set with a free-floating carbide expander button to streamline brass preparation and restore fired cases back to factory headspace dimensions for reliable cycling in high-velocity field shooting.

Less suitable for: Handloaders seeking to size other cartridge profiles such as 6mm or 6.5 Creedmoor, which require cartridge-specific dies, or reloaders needing exact, individual neck-tension adjustment without expander-button contact, who are better served by a dedicated bushing full-length sizing die system.

SKU	RD41707LP
Model #	66302
Brand	Redding
Shipping Weight	1.0000kg
