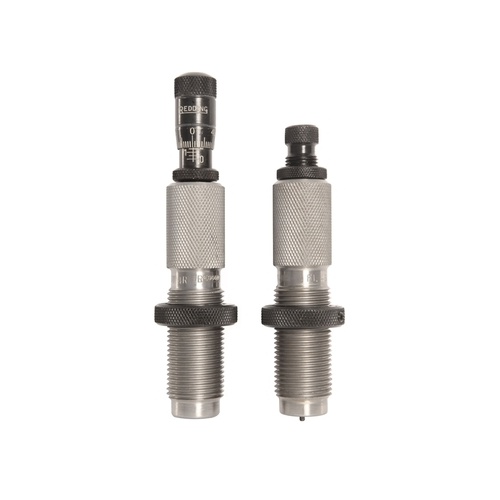

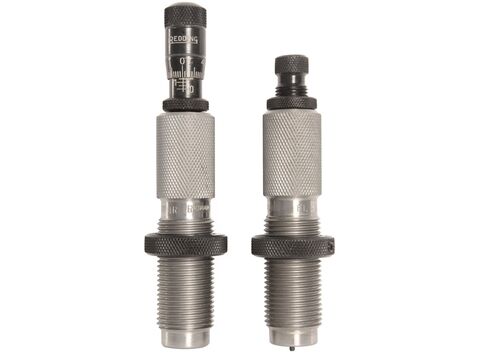

The Redding 6.5/284 Winchester Premium Die Set (Model 66415) is a precision 2-die reloading system engineered specifically for 6.5-284 Winchester and 6.5-284 Norma cartridges using .264-inch diameter bullets. Constructed from heat-treated alloy steel machined to tight tolerances, the set includes a full-length sizing die equipped with a free-floating carbide neck expander button and a dedicated bullet seating die featuring an integrated micrometer top. This setup allows handloaders to perform full-length case sizing with reduced internal neck drag while maintaining precise, repeatable control over bullet seating depth.

Key Features

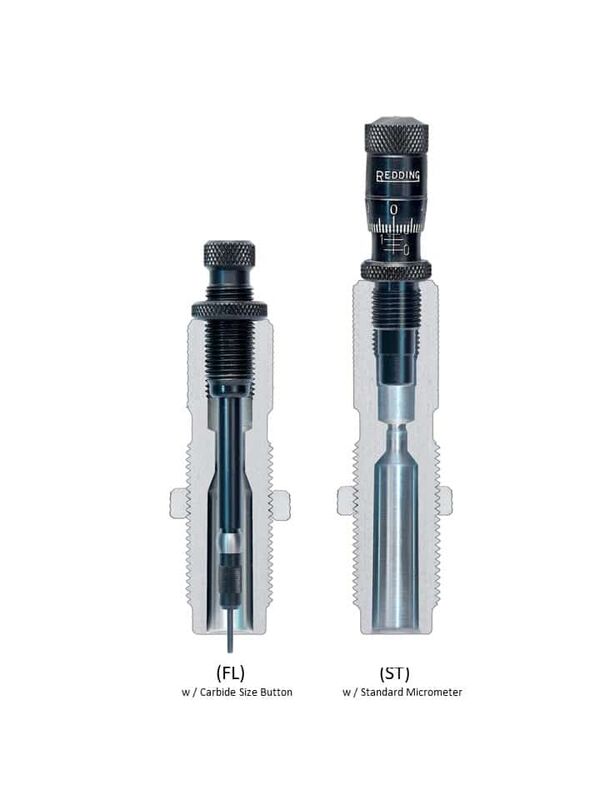

• Full-Length Sizing Die with Carbide Expander: Features a factory-fitted, free-floating carbide sizing button that minimizes neck drag, reduces brass stretching, and eliminates the need for inside-neck lubrication during sizing.
• Micrometer Seating Die: Integrates a top-mounted Bullet Seating Micrometer with explicit 0.001-inch graduated adjustments for precise, repeatable projectile seating depth.
• Standard Threading: Built with industry-standard 7/8"-14 threads to mount directly into standard single-stage, turret, or progressive reloading presses.
• Shellholder Compatibility: Designed for use with standard Redding Shellholder #1 (Part #11001) or Redding Competition Shellholder #11601.

Product Specifications

• Calibre Compatibility: 6.5-284 Winchester / 6.5-284 Norma (.264" bullet diameter)
• Die Thread Size: 7/8"-14
• Material: Heat-treated alloy steel with a carbide expander button
• Seating Adjustment Graduations: 0.001-inch increments
• Set Configuration: 2-die set (Full-Length Sizer and Micrometer Seating Die)
• Box Dimensions: Standard Redding case (~15.2 × 11.4 × 4.5 cm)
• Approximate Shipping Weight: 0.6 kg to 0.7 kg

Who is the Redding 6.5/284 Winchester Premium Die Set for?

• Precision handloaders loading 6.5-284 Winchester — who require industry-standard 7/8"-14 press threading and a free-floating carbide expander to full-length resize cartridge cases without inducing excessive neck stretch or requiring inside-neck lube.
• F-Class and long-range target shooters — who rely on micro-adjustable seating control, utilizing the integrated seating micrometer graduated in 0.001-inch increments to dial in exact bullet jump and cartridge overall length for competition.
• Precision hunters reloading 6.5-284 Norma — who need consistent full-length brass sizing to guarantee smooth chambering in bolt-action hunting rifles while using 0.001-inch seating depth adjustments to optimize accuracy for factory and custom loads.

Less suitable for: Handloaders who require neck-only sizing instead of full-length sizing (better served by a 3-die neck-sizing deluxe set) or reloaders who need precise brass neck tension management without work-hardening the case neck (better served by a dedicated bushing-style die system). It is also incompatible with standard .284 Winchester (7mm) or 6.5mm Creedmoor cases.
