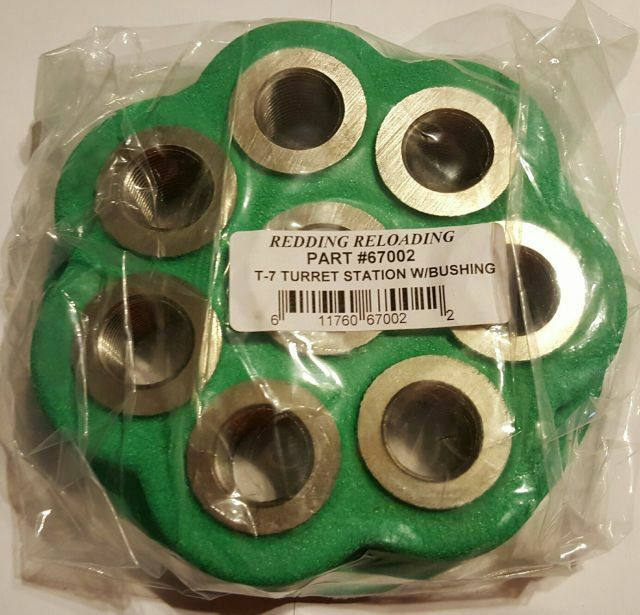

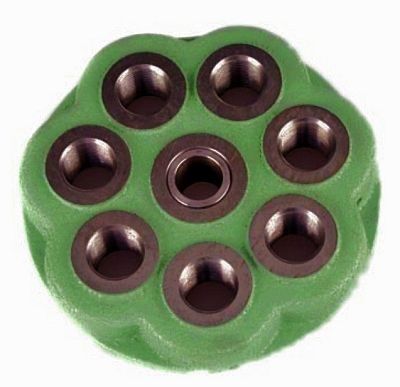

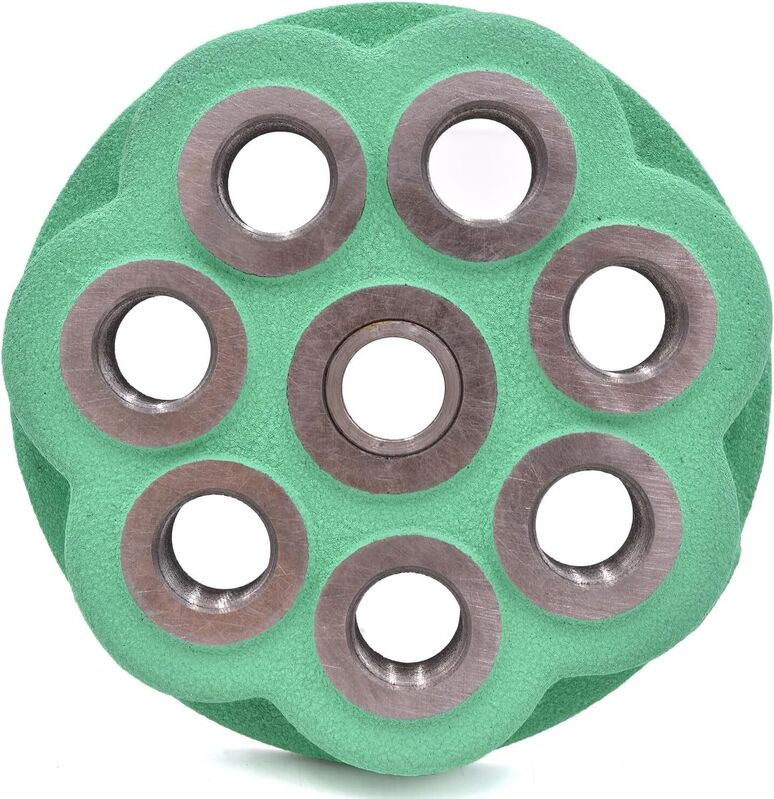

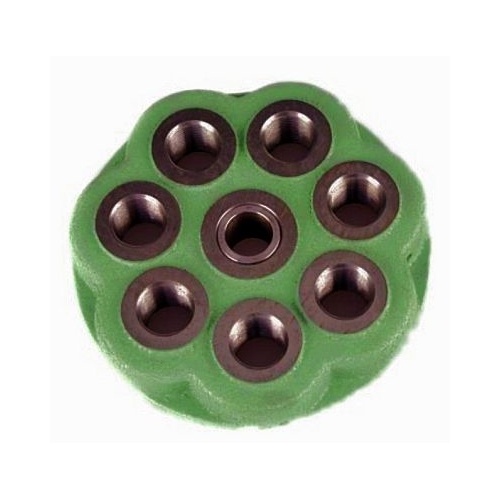

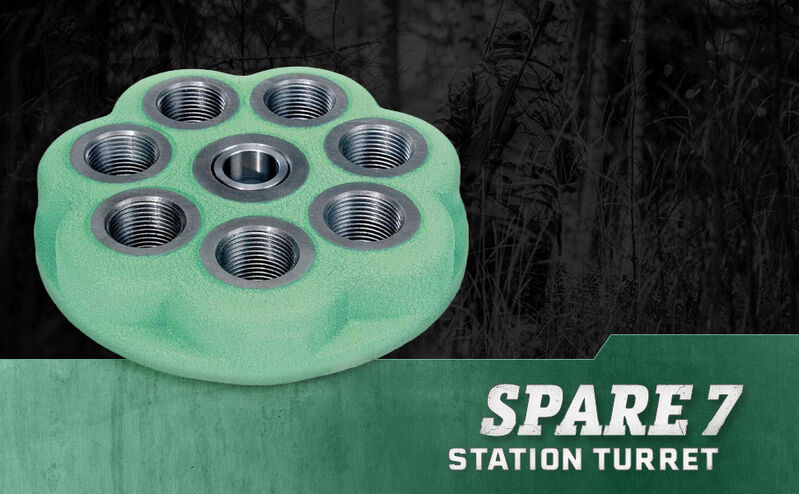

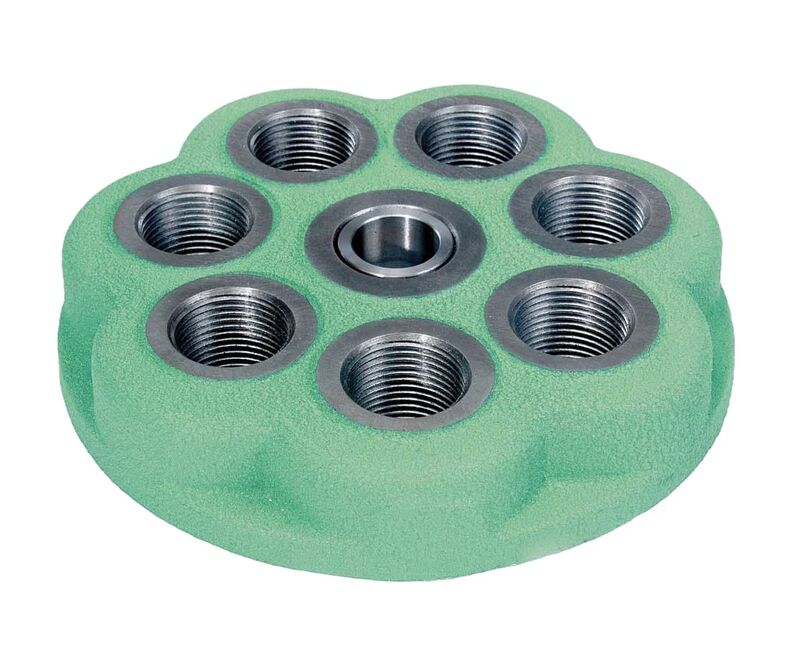

The Redding Seven Station Turret with Bushing for T-7 Press (Manufacturer Part Number: 67002) is an OEM cast-iron replacement turret head engineered specifically for the Redding T-7 Turret Press. Weighing approximately 5.79 lbs (2.63 kg), this heavy-duty cast-iron component provides 7 tapped stations configured with a standard 7/8"-14 thread pitch. It allows handloaders to mount, adjust, and permanently retain complete sets of sizing, seating, expanding, and crimping dies alongside auxiliary tools. Each turret head includes a factory-mated centre pivot bushing designed to maintain alignment when secured to the press using a central stud torqued to 45 ft-lbs.

Key Features

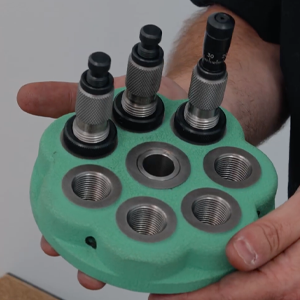

• 7-Station Tool Capacity: Accommodates full 2-die or 3-die sets for multiple calibres simultaneously, or dedicated single-calibre setups with powder measures, decappers, and compression dies.
• Standard Die Interface: Features 7/8"-14 tapped threading across all 7 stations, accepting standard rifle and handgun reloading dies.
• Factory-Mated Bushing: Includes a dedicated centre pivot bushing specifically matched at the factory to the individual turret head for consistent alignment.
• Solid Cast-Iron Construction: Weighs ~5.79 lbs to deliver rigidity and eliminate deflection under heavy sizing operations.
• Rapid Calibre Switching: Enables toolhead changeovers on the Redding T-7 press using a standard 5/16" hex wrench without losing established die calibrations.

Product Specifications

• Product: Redding Seven Station Turret with Bushing
• Part Number: 67002
• Material: Cast iron
• Station Count: 7 tapped stations
• Thread Pitch: 7/8"-14 standard thread
• Shipping Weight: ~5.79 lbs (~2.63 kg)
• Included Hardware: Turret head, factory-fitted centre bushing
• Press Compatibility: Redding T-7 Turret Press exclusively
• Operation: Manual / mechanical

Who is the Redding Seven Station Turret for T-7 Press for?

• High-volume precision handloaders — requires 7 tapped stations with standard 7/8"-14 thread pitch to set up and batch-load multiple sporting calibres like .223 Rem, .308 Win, and 6.5 Creedmoor on a single Redding replacement turret head without re-indexing dies between steps.
• Competitive target shooters and hunters — utilizes the 5.79 lbs heavy-duty cast-iron reloading press replacement turret head to keep complete multi-die configurations and specialty tools permanently installed and calibrated for rapid switchovers on the Redding T-7 press.

Less suitable for: Reloaders running oversized large-bore cartridges requiring 1"-14 threaded dies, who require a dedicated 1"-14 large-calibre turret head, or high-output progressive operations exceeding several hundred rounds per hour, which are better served by a dedicated multi-station progressive reloading press.
