The Redding Premium Deluxe 3-Die Set for .243 Winchester (MPN: 68114) is a precision handloading system engineered to resize brass cases and seat bullets to match-grade tolerances. Built around the standard 7/8"-14 thread pitch, this three-die set allows reloaders to alternate between full-length sizing and dedicated neck sizing. The full-length sizing die features a free-floating carbide size/expander button to minimise neck friction and enhance concentricity, while the included seating die incorporates a calibrated micrometer head for direct, fine-depth adjustments.

Key Features

• Carbide Size/Expander Button: Integrated into the full-length resizing die, the free-floating carbide button self-centers on the decapping rod to improve neck-to-case concentricity while eliminating the need for inside-neck lubrication.
• Bullet Seating Micrometer: Features direct-reading micrometer calibrations marked in 0.001" increments, allowing handloaders to precisely dial cartridge overall length (COAL) across different bullet profiles.

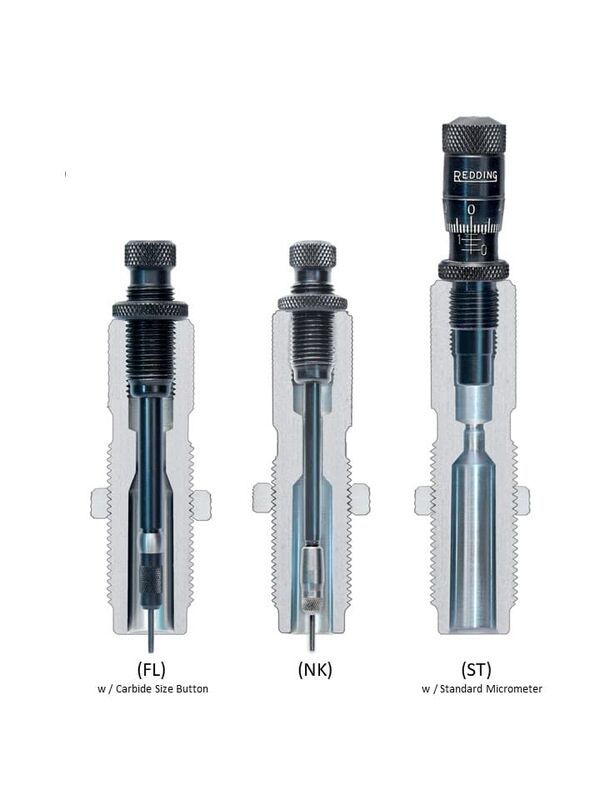

• Versatile 3-Die Configuration: Includes a Full Length Sizing Die, a standard Series A Neck Sizing Die, and a Micrometer Seating Die to accommodate both mixed field brass and fire-formed cases dedicated to a single bolt-action rifle.
• Mechanical Compatibility: Machined with industry-standard 7/8"-14 threads to mount seamlessly into standard single-stage and turret reloading presses.

Specifications

• Calibre Compatibility: .243 Winchester (0.243" / 6mm bullet diameter)
• Thread Interface: 7/8"-14 thread pitch
• Linear Seating Adjustability: 0.001" increments
• Included Components: Full Length Sizing Die with carbide expander, Neck Sizing Die, Micrometer Seating Die, spare decapping pin, and storage box
• Packaging Dimensions: Approximately 15 cm × 12 cm × 5 cm
• Total Shipping Weight: Approximately 0.70 kg (1.54 lbs)
• Power Requirements: Non-powered manual tooling

Who is the Redding Premium Deluxe .243 Winchester 3-Die Set for?

• Australian deer and pig hunters — requires a 7/8"-14 thread reloading die set capable of full-length resizing standard .243 Winchester (0.243" / 6mm bullet diameter) cases to ensure smooth cycling and reliable chambering in field conditions.
• Varmint and predator shooters — benefits from seating die adjustments calibrated in 0.001" linear increments to precisely control bullet jump and achieve sub-MOA precision from factory and custom .243 Winchester rifles.

Less suitable for: Firearm owners shooting non-standard or blown-out wildcat cases such as the .243 Ackley Improved; these configurations exceed standard factory case dimensions and require dedicated wildcat or chamber-specific custom reloading dies.
