Will the Redding 270 Win Premium Deluxe Die Set work with other .270 calibres like the .270 WSM or .270 Weatherby Magnum?

No, this die set is strictly engineered for standard .270 Winchester cases using .277" diameter bullets. It is not compatible with .270 WSM, .270 Weatherby Magnum, or any other non-.270 Winchester cartridges.

What is included in the Redding 3-die set, and how precise is the bullet seating adjustment?

This 3-die set includes a full-length sizing die with a free-floating carbide expander button, a neck sizing die, and a seating die equipped with a micrometer head. The bullet seating stem features laser-engraved 0.001-inch gradations, allowing for micro-fine and repeatable adjustments to your overall cartridge length.

Can I use the neck sizing die for ammunition intended to be fired in a semi-automatic or lever-action rifle?

The neck sizing die is designed for fire-formed brass used exclusively in bolt-action rifles to extend brass life and preserve chamber fit. For semi-automatic, lever-action, or pump-action rifles where guaranteed chambering is critical, you should use the full-length sizing die included in the set.

Do I need any special electrical adapters or regulatory certifications to use these dies in Australia?

No electrical compliance, 240V compatibility, or SAA/RCM certifications are required because this is a purely mechanical steel reloading tool. However, due to humid Australian coastal conditions, standard maintenance and anti-corrosion care should be applied to the heat-treated alloy steel components.

.270 Win Die Set - Redding 68135

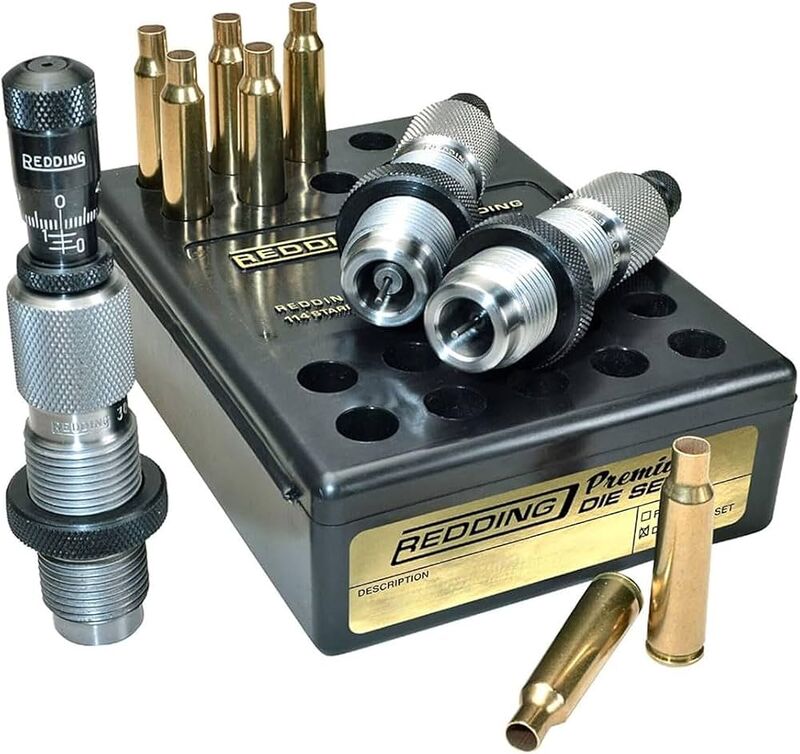

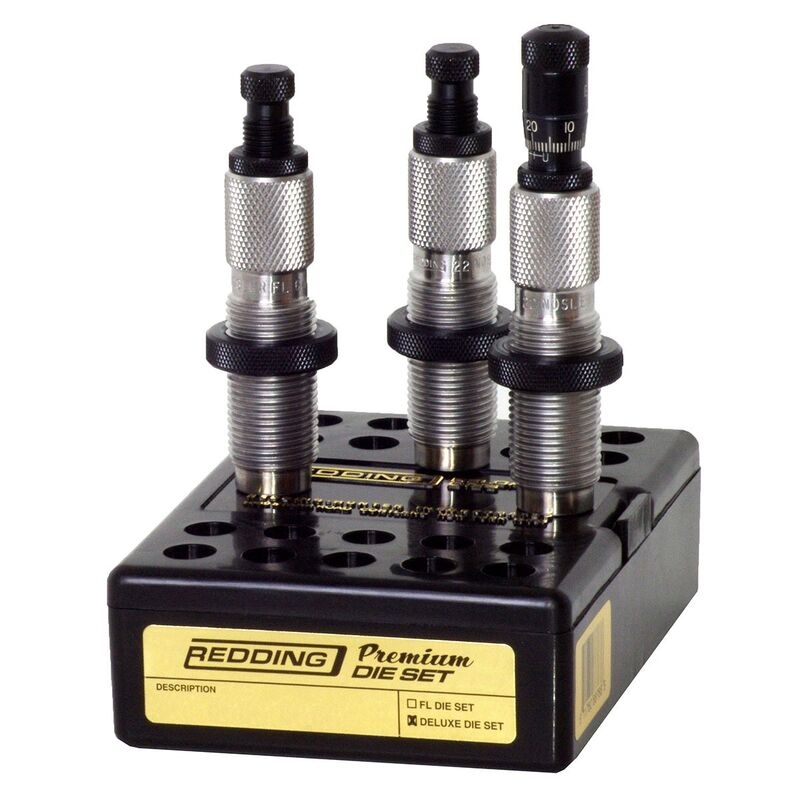

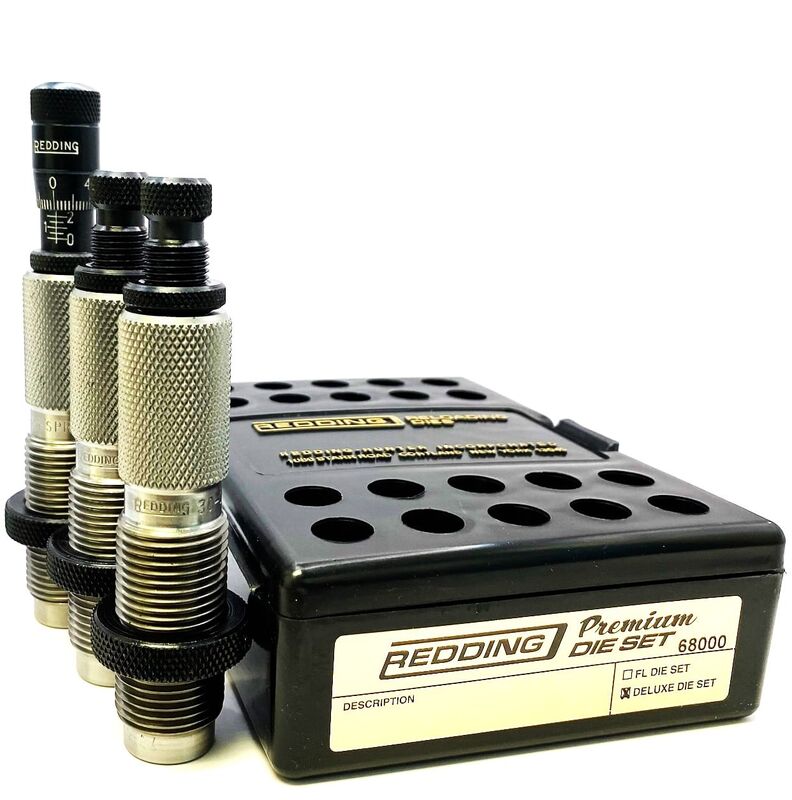

The Redding Premium Series Deluxe 3-Die Set for .270 Winchester (MPN: 68135) is a precision reloading set engineered for resizing cartridge brass and seating .277" diameter bullets. Machined from heat-treated alloy steel with industry-standard 7/8"-14 threading, this 3-die set includes a Full-Length Sizing Die with a free-floating carbide expander button, a dedicated Neck Sizing Die, and a Seating Die equipped with a Bullet Seating Micrometer head calibrated in 0.001" increments. It delivers benchrest-level consistency, reduced neck runout, and dual sizing options for standard reloading presses.

Key Features

Bullet Seating Micrometer: Features laser-engraved 0.001" gradations on the seating stem, enabling repeatable, fine adjustments to cartridge overall length (COAL) and bullet jump.
Free-Floating Carbide Expander Button: Eliminates the need for inside-neck lubricant while reducing internal neck friction and drag during full-length sizing.
Dual Sizing Versatility: Contains both a full-length sizing die for universal feeding reliability and a dedicated neck sizing die for extending the case life of fire-formed brass.
Heat-Treated Steel Construction: Built from polished, hand-inspected alloy steel designed to maintain tight internal tolerances across high-volume reloading sessions.

Product Specifications

Calibre Compatibility: .270 Winchester (.277" bullet diameter)
Thread Interface: 7/8"-14 thread pitch

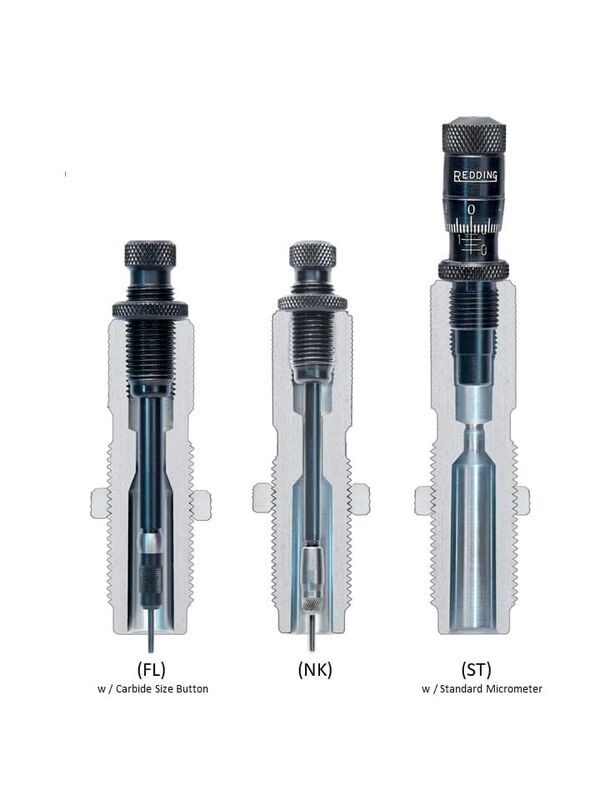

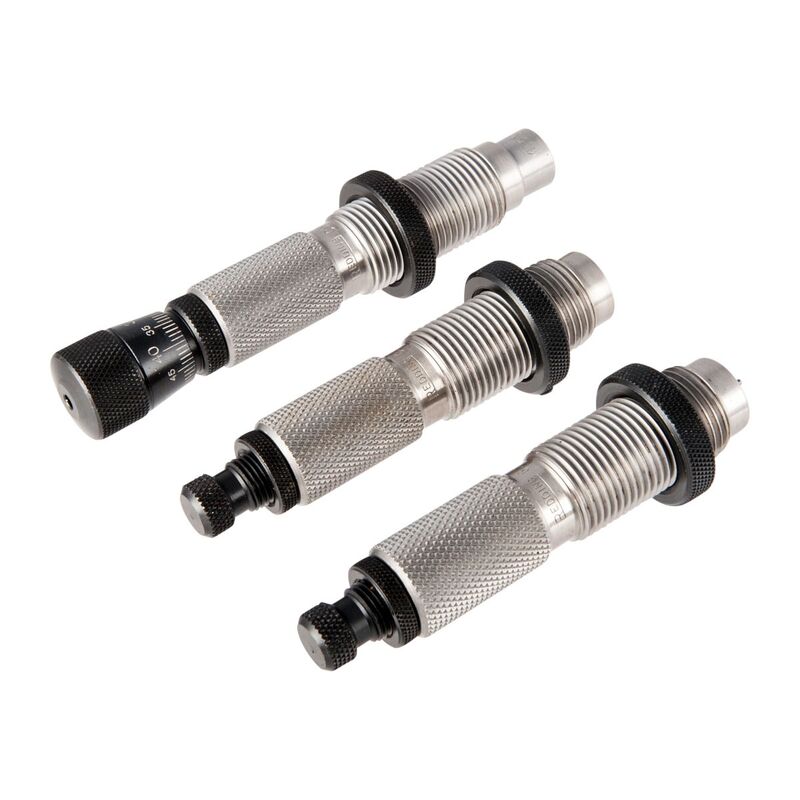

Die Set Contents: Full-Length Sizing Die (with carbide expander), Neck Sizing Die, and Seating Die (with micrometer head)
Adjustment Gradations: 0.001-inch seating depth increments
Shellholder Requirement: Standard Redding #1 shellholder (sold separately)
Operation: Manual, unpowered mechanical press operation

Who is the Redding 270 Win Premium Deluxe Die Set for?

Precision handloaders loading .270 Winchester for bolt-action rifles — provides a dedicated neck sizing die and a seating stem adjustable in 0.001" increments within this 3-die set to maximise brass longevity and fine-tune bullet seating depth for fire-formed cases.
Hunters seeking benchrest-level seating consistency and reduced neck runout — utilises a standard 7/8"-14 threaded full-length sizing die equipped with a free-floating carbide expander button to ensure smooth chambering and minimal internal neck drag for .270 Winchester hunting loads.

Less suitable for: Handloaders reloading non-standard or magnum cartridges such as .270 WSM or .270 Weatherby Magnum, which require calibre-matched die sets, or those running lever-action, pump-action, and semi-automatic rifles that require dedicated full-length or small-base sizing dies rather than neck sizing.

SKU	RD41713LP
Model #	68135
Brand	Redding
Shipping Weight	1.0000kg
