Will the Redding 68223 Premium Series Deluxe Die Set work on my standard single-stage reloading press purchased in Australia?

Yes, this die set features the industry-standard 7/8"-14 thread, making it fully compatible with all standard reloading presses sold in Australia, including models from Redding, RCBS, Hornady, and Lee. As a purely mechanical reloading tool, it does not require electrical compliance or SAA/RCM certifications.

Does this die set include everything needed out of the box, or do I need to purchase additional components separately?

The 3-die set includes a full-length sizing die with a carbide expander button, a neck sizing die, and a bullet seating die with a micrometer. However, you will need to separately acquire a standard #6 Redding Shellholder (or equivalent brand #6 shellholder) to secure your .300 WSM brass into the press.

Can I use the full-length sizing die in this set to resize standard .300 Winchester Magnum brass?

No, this die set is strictly engineered to exact SAAMI tolerances for .300 Winchester Short Magnum (.300 WSM) brass only. It will not resize standard .300 Winchester Magnum, .300 RUM, or other .30-calibre magnum cases.

How precise is the bullet seating adjustment on the Redding 68223 set?

The bullet seating die features a pre-installed micrometer top calibrated in precise 0.001-inch increments. This allows handloaders to reliably fine-tune and repeat bullet seating depth and jump to optimize accuracy for long-range precision shooting.

How should I maintain these steel dies to protect them from corrosion during humid Australian conditions?

Because the dies are constructed from heat-treated alloy steel, they require standard indoor bench care in humid environments. It is recommended to wipe down the exterior metal surfaces with a light gun oil or rust preventative after reloading sessions to prevent oxidation and ensure long-term longevity.

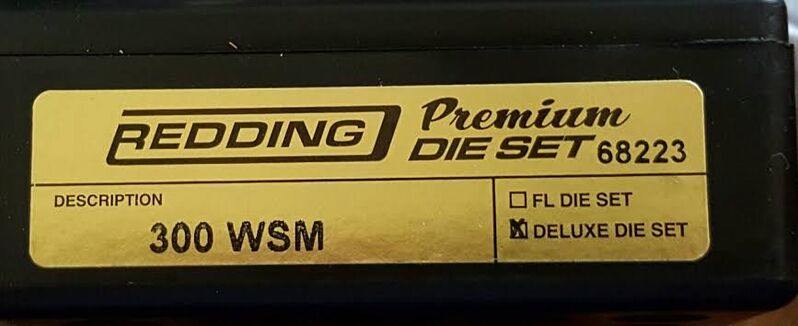

300 WSM Die Set - Redding 68223

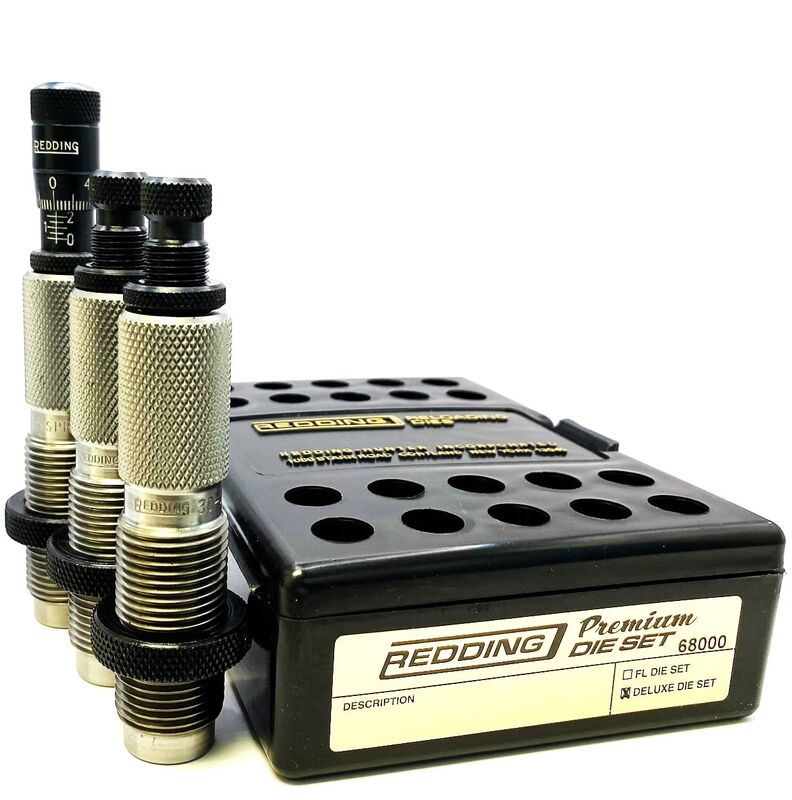

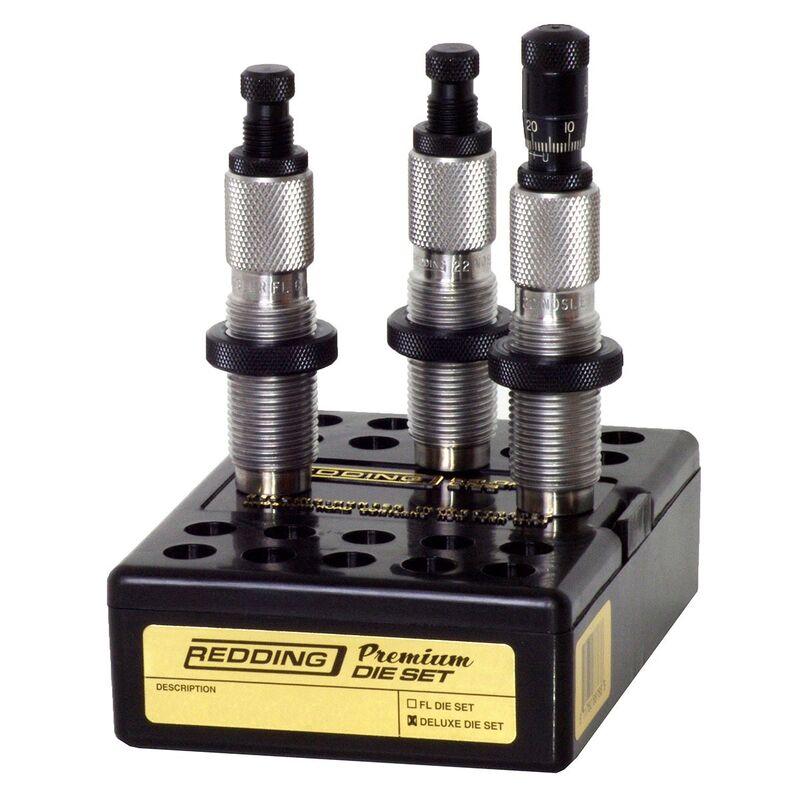

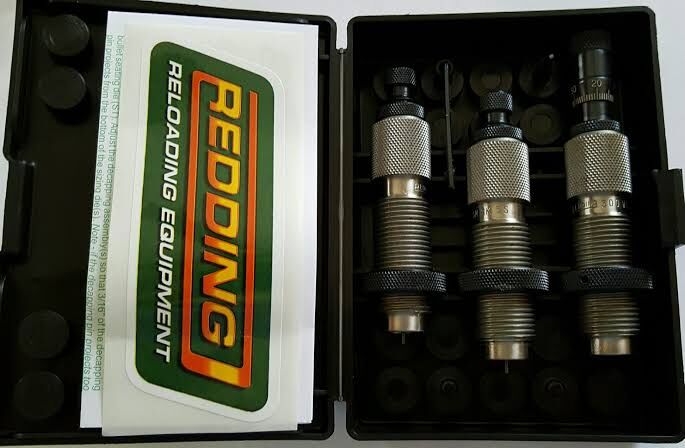

The Redding 300 Wsm Premium Series Deluxe Die Set (MPN: 68223) is a precision three-die reloading system designed specifically for the .300 Winchester Short Magnum (.300 WSM) cartridge. Machined from heat-treated alloy steel to tight SAAMI tolerances, this set provides the tools necessary to process fired brass and assemble accurate ammunition on any standard reloading press utilizing industry-standard 7/8"-14 threading.

Key Features

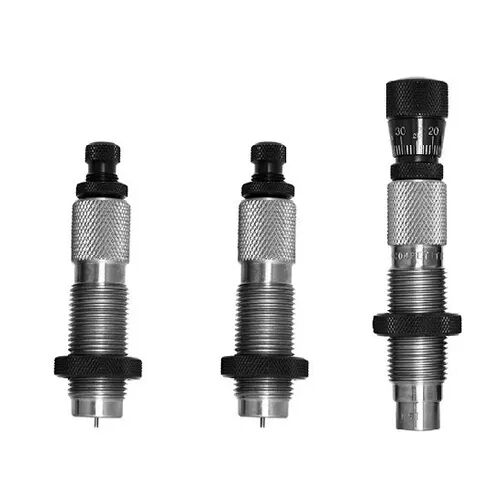

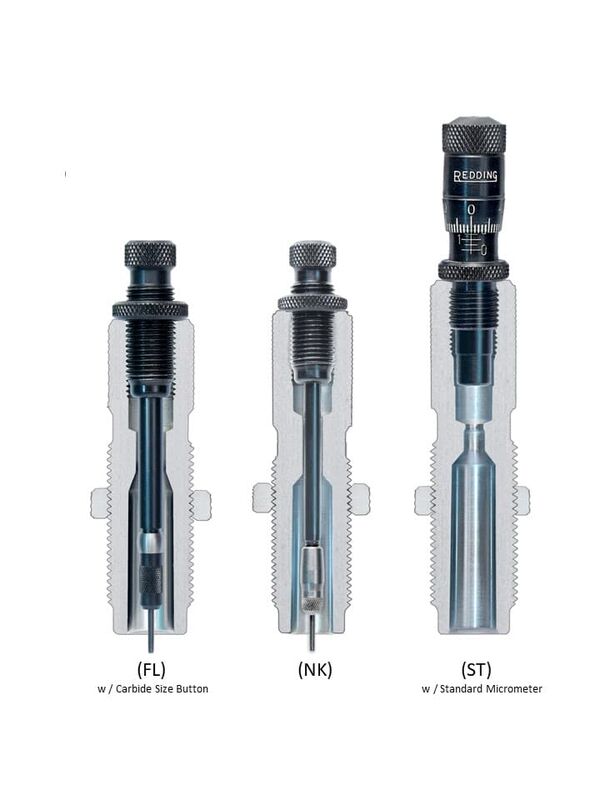

Full-Length Sizing Die: Returns fired brass to factory SAAMI dimensions for reliable cycling in any chamber, featuring a pre-installed carbide expander button that reduces friction and neck stress while eliminating the need for inside-neck lubrication.
Neck Sizing Die: Resizes only the case neck of fire-formed brass to extend cartridge life and preserve chamber-matched fire-forming in dedicated bolt-action rifles.
Bullet Seating Die with Micrometer: Equipped with a factory-installed seating micrometer calibrated in precise 0.001-inch increments for repeatable seating depth and bullet jump adjustments.

Specifications

Calibre Compatibility: .300 Winchester Short Magnum (.300 WSM) (0.308" bullet diameter)
Die Threading: 7/8"-14 thread
Material: Heat-treated alloy steel with a carbide expander button
Adjustment Resolution: 0.001-inch micrometer increments
Approximate Shipping Weight: 0.65 kg to 0.75 kg (including storage case)
Shellholder Required: Redding #6 or equivalent (sold separately)

Who is the Redding 300 WSM Premium Series Deluxe Die Set for?

Bolt-action precision long-range shooters — Achieves exact bullet jump and consistent headspacing with this 300 WSM reloading die set by using the seating micrometer adjustable in 0.001-inch increments alongside a neck sizing die that preserves fire-formed case dimensions.
Handloaders requiring both full-length and neck sizing — Combines a neck sizing die for dedicated brass longevity with a full-length sizing die on standard 7/8"-14 thread presses, allowing reloaders to switch between bench accuracy and dependable field feeding for .300 Winchester Short Magnum (.300 WSM) rifles.

Less suitable for: Handloaders reloading standard length .300 Winchester Magnum, .300 RUM, or other non-short magnum .30-calibre cartridges, which require full-length magnum dies designed for longer cartridge case geometries.

SKU	RD41716LP
Model #	68223
Brand	Redding
Shipping Weight	1.0000kg
