What specific calibre range does the Redding Large Universal Decapping Die support, and can I use it for .223 Remington cases?

The Redding Large Universal Decapping Die (Model 69200) is built specifically for cartridges with neck diameters from 7mm (.284 calibre) up to .50 calibre with a maximum case length of 3.0 inches. It will not accommodate neck diameters under .25 calibre. Therefore, you cannot use this large variant for .223 Remington cases, which require the Redding Small Universal Decapping Die instead.

Will this decapping die fit onto my standard Australian-market reloading press?

Yes, the Redding Large Universal Decapping Die features the industry-standard 7/8"-14 TPI threading. It is fully compatible with all common single-stage, turret, and progressive reloading presses sold in the Australian market that utilize this standard thread pitch, including brands like RCBS, Hornady, Lee, Lyman, and Redding.

Do I need to apply case lubricant to my brass before running them through this decapping die?

No case lubrication is necessary when using the Redding Large Universal Decapping Die. Because the die body is designed exclusively to punch out spent primers without touching or resizing the case walls or neck, friction is minimal and case lube is completely bypassed in your pre-cleaning workflow.

Are there any specific safety warnings regarding live primers with this decapping tool?

Yes, the manufacturer explicitly warns that you must never attempt to decap live primers using the Redding Large Universal Decapping Die. This tool is engineered strictly for safely punching out spent, fired primers from brass rifle and pistol cartridge cases during your wet-tumbling or ultrasonic cleaning preparation.

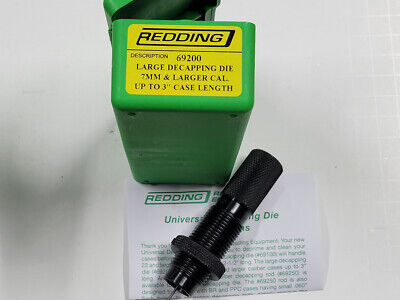

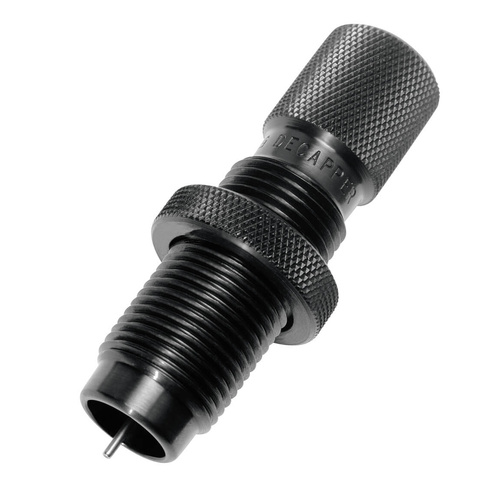

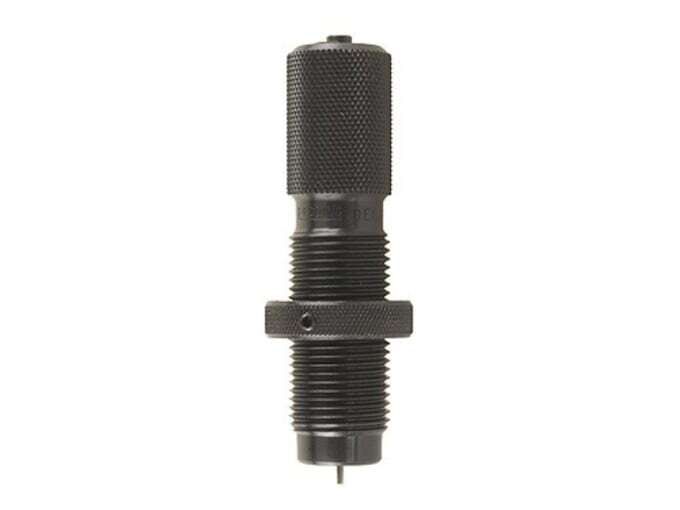

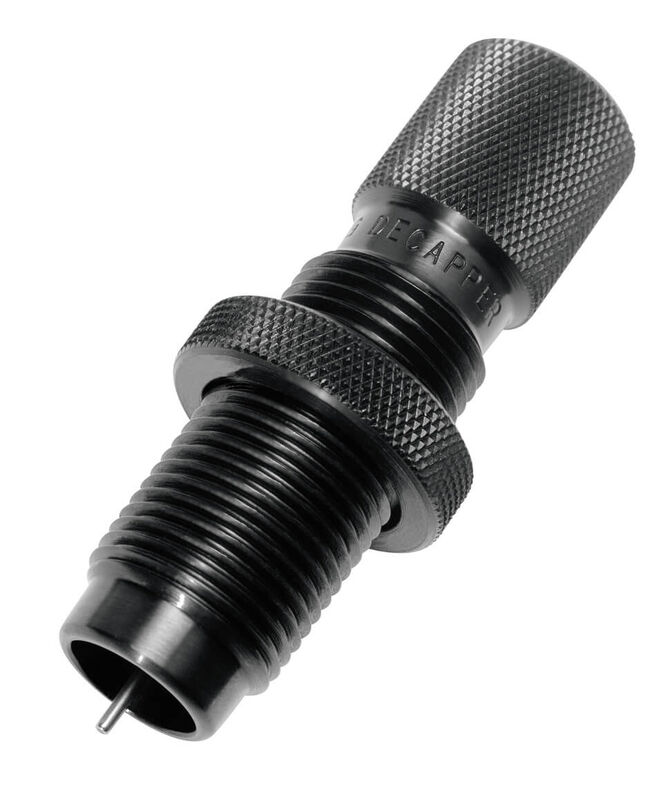

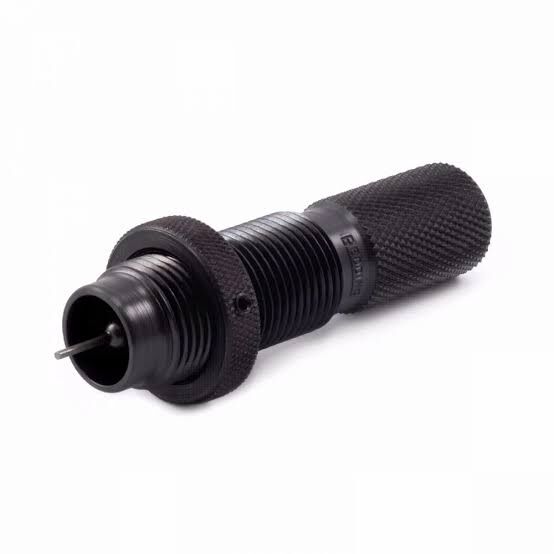

Large Universal Decapping Die - Redding 69200

The Redding Large Universal Decapping Die is a dedicated reloading tool designed to punch spent primers out of brass cartridge cases without touching, sizing, or expanding the case neck and body. Machined from heat-treated alloy steel, it fits standard reloading presses using industry-standard 7/8"-14 TPI threading. Because the die body does not contact the brass, depriming requires no case lubrication, keeping dirty range brass from fouling full-length sizing dies during pre-cleaning workflows.

Key Features

Resizing-Free Depriming: Removes spent primers independently of the sizing process, preventing dirty carbon and grit from scratching expensive sizing dies.
No Lubrication Required: Eliminates the need for case lube prior to depriming, streamlining pre-wash brass preparation.
Broad Calibre Capability: Accommodates rifle and handgun cartridges from 7mm (.284 calibre) up to .50 calibre.
Extended Case Length Handling: Accepts cartridges with overall case lengths measuring up to 3.0 inches (76.2 mm).
Standard Press Integration: Features 7/8"-14 TPI threads to mount directly into standard single-stage, turret, or progressive reloading presses.

Specifications

Product: Redding Large Universal Decapping Die
Manufacturer Part Number (MPN): 69200
Thread Standard: 7/8"-14 TPI
Calibre Range: 7mm (.284 cal) up to .50 calibre
Maximum Case Length: 3.0 inches (76.2 mm)
Material: Heat-treated alloy steel
Packaged Weight: Approximately 200–250 g
Power Requirements: None (manual mechanical operation)
Replacement Rod Assembly: Large Decapping Rod (Part #69300)

Who is the Redding Large Universal Decapping Die for?

Handloaders cleaning brass prior to sizing — Deprimes spent primers without case lube or body contact, allowing thorough primer pocket cleaning in cases up to 3.0 inches in length before cases enter sizing dies.
Reloaders processing large-calibre cases — Provides a dedicated decapping die assembly specifically sized to clear neck diameters ranging from 7mm up to .50 calibre.

Less suitable for: Cartridges with a neck diameter under .25 calibre, which require a dedicated small-calibre decapping die or sub-calibre rod assembly to properly clear the smaller case neck.

SKU	RD41723LP
Model #	69200
Brand	Redding
Shipping Weight	1.0000kg
