Which specific die models are compatible with the Redding 69250 decapping rod?

The Redding 69250 decapping rod is designed exclusively for use with the Redding Small Universal Decapping Die (Item #69100) or as part of the Complete Universal Decapping Die Kit (#69500). Please note that it does not fit or function inside the Redding Large Decapping Die (#69200), which requires rod #69300 instead.

Can this decapping rod handle small flash hole brass like BR and PPC cases?

Yes, this rod is specifically engineered to accommodate small .060-inch (1.52 mm) flash holes commonly found on precision benchrest brass such as 6mm BR, 6 PPC, and small-primer 6.5 Creedmoor cases. The pin is sized to prevent the bending or jamming often experienced when using standard .080-inch pins on undersized flash holes.

What is the maximum case length supported when using this rod in my decapping setup?

The operating envelope is restricted by the Redding Small Die body, which handles case lengths up to 2.625 inches (66.68 mm). For longer cartridges exceeding 2.625 inches up to 3.000 inches, you will need to switch to the Large Decapping Die system.

Are there any specific Australian electrical or regulatory compliance requirements for this tool?

No electrical compliance such as 240V, SAA, or RCM certifications are required because this is a purely mechanical, non-powered reloading component. It is also an unrestricted accessory under Australian firearms laws and can be legally shipped to your home across all states and territories.

What maintenance is required to ensure the longevity of the hardened steel rod?

Constructed from durable hardened steel, the rod requires very little maintenance beyond keeping it clean and free of carbon buildup or grit from spent primers. Storing it in a dry reloading environment will protect it from corrosion during long-term storage.

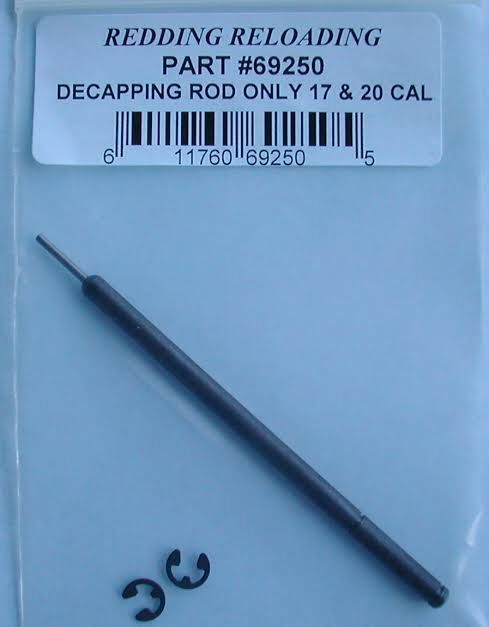

Decapping Rod - Redding 69250

The Redding Universal Decapping Rod for .17–.20 Caliber Casings (Item #69250) is a hardened steel replacement and conversion rod engineered specifically for dedicated, non-sizing depriming of sub-calibre and small flash hole brass. Designed as a direct drop-in component for the Redding Small Universal Decapping Die (Item #69100), this rod allows reloaders to punch out spent primers prior to wet or ultrasonic case cleaning without damaging narrow case mouths or undersized flash holes. Weighing approximately 21 g (0.046 lb), it provides precise mechanical depriming for case lengths up to 2.625 inches (66.68 mm).

Key Features

Sub-Calibre Clearance: Calibrated specifically to enter .17 to .20 calibre case necks without catching or dragging on the case mouth.
Small Flash Hole Compatibility: Features an undersized decapping pin engineered to clear .060-inch (1.52 mm) flash holes without binding or bending.
Direct Drop-In Fit: Installs into the Redding Small Universal Decapping Die body by swapping out the standard assembly via the top retaining clip.
Hardened Steel Construction: Machined from hardened steel to resist bending under continuous mechanical reloading press operation.

Product Specifications

Material: Hardened steel
Product Weight: ~21 g (0.046 lb)
Supported Calibre Range: .17 to .20 calibre
Flash Hole Diameter: Accommodates small .060-inch (1.52 mm) flash holes
Maximum Supported Case Length: Up to 2.625 inches (66.68 mm)
Die Compatibility: Exclusively fits the Redding Small Universal Decapping Die (#69100); included in the Complete Universal Decapping Die Kit (#69500)
Operational Limit: For spent primers only; do not use to decap live primers

Who is the Redding Universal Decapping Rod for .17–.20 Caliber Casings for?

Varmint Hunters — Need to deprime .17 to .20 calibre cartridge cases such as .17 Hornet and .204 Ruger up to 2.625 inches (66.68 mm) in length without causing mouth deformation before ultrasonic or wet tumbling.
Precision Benchrest Reloaders — Require this universal decapping rod to clear small .060-inch (1.52 mm) flash holes found in precision brass such as 6mm BR and 6 PPC without bending or jamming standard-diameter decapping pins.

Less suitable for: Reloaders processing cases longer than the 2.625-inch (66.68 mm) threshold up to 3.000 inches, or cases running standard .25 calibre and larger necks in a large-body decapping die, who require a large-calibre decapping die rod assembly instead.

SKU	RD102720LP
Model #	69250
Brand	Redding
Shipping Weight	0.1000kg
