Does the Redding 7mm PRC Type S Neck Die come with sizing bushings included?

No, the interchangeable neck sizing bushings are sold separately to allow you to precisely select the exact neck tension required for your loads, such as a 0.333-inch bushing. The die does include a standard decapping rod assembly with an expander button and a lock ring.

What reloading presses are compatible with the 71936 neck sizing die?

The die features a standard 7/8"-14 thread pitch, making it fully compatible with all standard single-stage and progressive reloading presses commonly available through Australian shooting and hunting retailers.

When should I transition from this neck sizing die to a full-length sizing or body die?

Because neck sizing dies only work the case neck and do not bump the shoulder or resize the case body, you must switch to a full-length sizing die or dedicated body die once your fire-formed 7mm PRC brass begins to cause heavy bolt closure or stiff chambering in your rifle.

Can this die be used with non-turned brass as well as neck-turned brass?

Yes, the die can be run with the included standard steel expander button for regular non-turned brass. Alternatively, you can configure it without the expander button by using the decapper retainer to minimise case runout and neck stretch when using uniform, neck-turned brass.

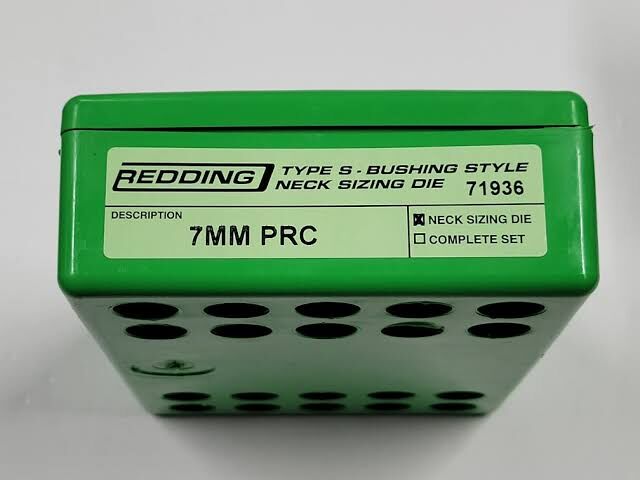

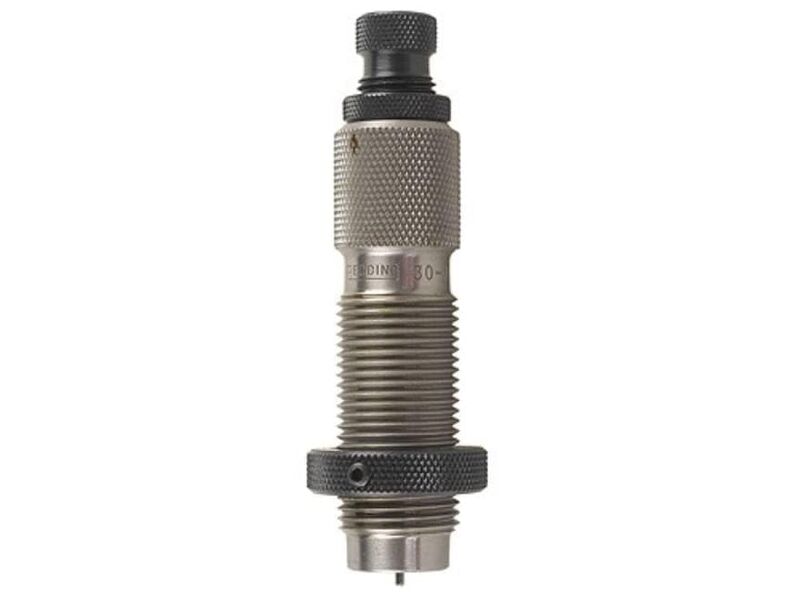

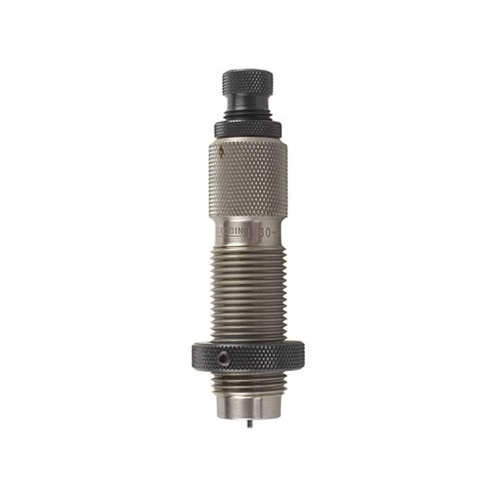

7mm PRC Neck Die - Redding 71936

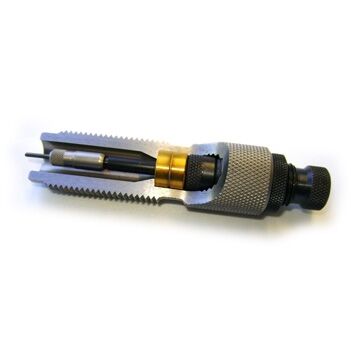

The Redding Type S – Bushing Neck Sizing Die (MPN: 71936) is a precision reloading tool engineered specifically for the 7mm Precision Rifle Cartridge (7mm PRC). Designed for use with .284 in (7.21 mm) diameter projectiles, this die sizes only the case neck to preserve the fire-formed dimensions of brass fired from a specific bolt-action rifle chamber. By utilising interchangeable sizing bushings (sold separately), handloaders can precisely set case neck tension while preventing the excessive work-hardening associated with standard non-bushing dies.

Key Features

Interchangeable Bushing System: Utilises freely floating, interchangeable neck sizing bushings (available in 0.001" increments) to adjust neck tension without over-working the brass.
Adjustable Sizing Depth: Features an adjustable decapping rod assembly that allows users to size the full neck length or set partial neck sizing depth.
Dual Configuration Decapping Assembly: Can be run with the included steel expander button for standard brass, or configured without the expander button using the decapper retainer to reduce runout on uniform, neck-turned cases.
Universal Press Compatibility: Threaded to the industry-standard 7/8"-14 thread pitch to fit standard metallic cartridge reloading presses.

Specifications

Brand: Redding Reloading Equipment
Manufacturer Part Number (MPN): 71936
Calibre: 7mm Precision Rifle Cartridge (7mm PRC)
Compatible Projectile Diameter: .284 in (7.21 mm)
Thread Interface: Standard 7/8"-14 thread pitch
Compatible Shellholder: Redding #6 (Part #11006)

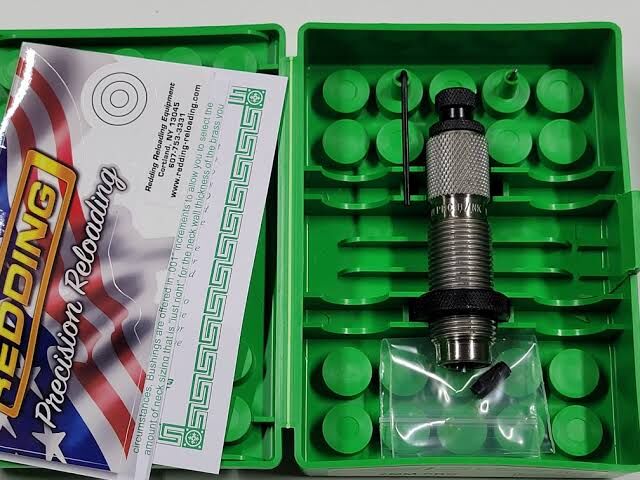

Included Assemblies: Decapping rod assembly (#22288), size button (#40283), lock ring (#01016)
Weight: Approximately 0.25–0.35 kg

Who is the Redding 7mm PRC Type S Neck Die for?

Long-range target shooters — provides neck-only sizing for 7mm PRC cases to achieve precise neck tension between 0.001" and 0.003" for .284 in (7.21 mm) projectiles, maintaining fire-formed chamber alignment for single-fed and magazine-fed bolt-action rifles without over-working the brass.
Precision hunters — maintains fire-formed case dimensions for 7mm PRC handloads while sizing case necks using interchangeable bushings to ensure consistent 0.002" to 0.003" neck tension for reliable feeding from rifle magazines.

Less suitable for: Reloaders whose fired brass exhibits heavy bolt closure or stiff chambering due to case body and shoulder expansion, which requires transitioning to a full-length sizing die or dedicated body die, or those loading different 7mm cartridges such as the 7mm Remington Magnum or 28 Nosler.

SKU	RD41742LP
Model #	71936
Brand	Redding
Shipping Weight	1.0000kg
