What dies are compatible with the Redding .199 Heat-Treated Steel Neck Sizing Bushing?

This bushing is fully compatible with all Redding Type S Bushing Full Length Dies, Type S Neck Sizing Dies, and Redding Competition Bushing Neck Sizing Dies. It is also completely interchangeable with any standard Wilson-style bushing dies.

How do I determine if the 0.199-inch size is correct for my cartridge?

Redding advises measuring the outside neck diameter of a fully loaded cartridge with a micrometer and subtracting 0.001 to 0.002 inches to account for brass springback and proper bullet grip. This specific 0.199-inch size is primarily used for precision .17 calibre cartridges like the .17 Remington, .17 Hornet, or .17 Fireball, as well as tight-neck wildcat cases.

Can I use this steel bushing without case neck lubrication?

No, Redding explicitly recommends using case neck lubrication during operation with standard heat-treating steel bushings to reduce friction and prevent galling. The internal sizing surface is hand-polished and hardened to Rockwell C 60-62 to minimise effort, but proper lubrication remains essential for smooth reloading.

Are there any limitations on how much I can reduce the neck diameter in a single pass?

Yes, sizing case necks down in increments greater than 0.004 to 0.005 inches in a single pass can cause unwanted neck distortion. If your brass requires a larger reduction, Redding recommends stepping down through intermediate bushing sizes to protect the brass.

Does this reloading component require any Australian electrical certifications or a firearms licence?

No electrical certifications such as SAA or RCM/C-Tick are required since this is a completely unpowered mechanical component with a negligible weight of around 10 to 15 grams. Furthermore, it can be freely purchased and shipped across Australia without needing a firearms licence.

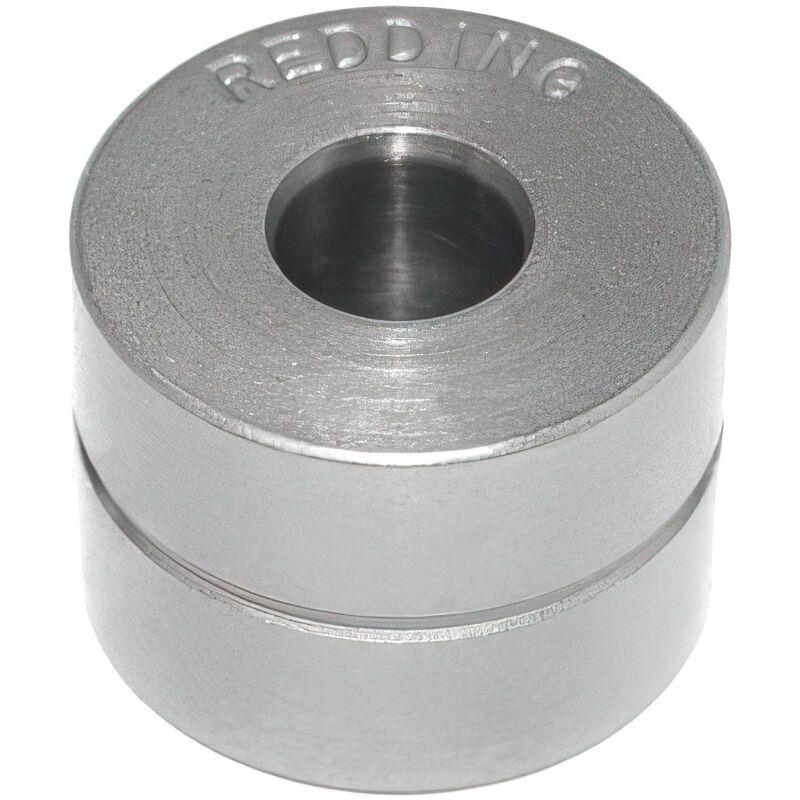

Neck Sizing Bushing - Redding 73199

The Redding .199 Heat-Treated Steel Neck Sizing Bushing is a precision reloading component engineered to size cartridge case necks to an exact outside dimension without over-working the brass. Built from heat-treated tool steel hardened to Rockwell C 60–62 (Rc 60–62), this bushing features a hand-polished internal sizing surface to minimise friction and prevent galling. It enables handloaders to achieve precise neck tension and maintain cartridge concentricity without relying on standard expander balls, helping to extend overall brass life.

Key Features

Precise Neck Tension: Accurately sizes case necks to an exact 0.199-inch inside diameter, providing controlled bullet grip without excessive work-hardening.
Hardened Tool Steel Construction: Heat-treated to Rockwell C 60–62 (Rc 60–62) for long-term wear resistance under repetitive sizing pressure.
Hand-Polished Interior: Features a smooth internal finish that reduces sizing effort and protects brass surfaces when used with standard case neck lubricant.
Standardised Sizing Dimensions: Manufactured with industry-standard 1/2-inch (0.500-inch) outside diameter and 3/8-inch (0.375-inch) length dimensions for broad die compatibility.
Universal System Compatibility: Fully interchangeable across Redding Type S Neck Sizing Dies, Type S Full Length Dies, Competition Bushing Neck Sizing Dies, and standard Wilson-style bushing dies.

Specifications

Product Name: Redding .199 Heat-Treated Steel Neck Sizing Bushing
Manufacturer Part Number (MPN): 73199
Inside Sizing Diameter: 0.199 inches
Outside Diameter: 0.500 inches (1/2 inch)
Length: 0.375 inches (3/8 inch)
Material: Heat-treated tool steel
Surface Hardness: Rockwell C 60–62 (Rc 60–62)
Die Compatibility: Redding Type S Neck & Full Length Dies, Redding Competition Bushing Dies, Wilson-style bushing dies

Who is the Redding .199 Heat-Treated Steel Neck Sizing Bushing for?

Precision target shooters — Requires precise 0.199-inch outer neck dimensions on sub-calibre target brass, utilising this neck sizing bushing's Rockwell C 60–62 hardened steel construction to maintain uniform bullet release and tight concentricity.
Varmint hunters — Sizes small-capacity brass for cartridges like the .17 Hornet, .17 Fireball, and .17 Remington, relying on this 0.199-inch inside diameter neck bushing to set exact neck tension without over-working thin case necks.
Wildcat handloaders — Forming custom tight-neck sub-calibre cases that require a specific 0.199-inch finished neck diameter within standard 0.500-inch outside diameter die channels.

Less suitable for: High-volume continuous reloading runs where reduced surface friction is critical (which are better served by Titanium Nitride / TiN coated neck bushings), or operations requiring brass neck reduction greater than 0.004 to 0.005 inches in a single pass (which require intermediate step-down sizing bushings to prevent neck distortion).

SKU	RD41754LP
Model #	73199
Brand	Redding
Shipping Weight	1.0000kg
