What dies are compatible with the Redding 73202 .202 Heat-Treated Steel Neck Sizing Bushing?

The Redding 73202 bushing features standard dimensions with a 0.500-inch outer diameter and a 0.375-inch length. It freely interchanges with all Redding Type S Bushing Dies, Redding Competition Bushing Dies, and standard L.E. Wilson-style bushing dies.

Do I need to use case neck lubricant with the Redding 73202 heat-treated steel bushing?

Yes, Redding strongly recommends using case neck lubricant when resizing brass with this heat-treated steel bushing to prevent brass galling or sticking. If you require resizing without case lubrication, you should consider stepping up to a Titanium Nitride-coated bushing.

How do I calculate the correct bushing size when using the Redding 73202 for precision reloading?

To establish the proper neck tension, measure the outside neck diameter of a loaded cartridge using calipers or a micrometer and subtract 0.001 to 0.002 inches. This 0.202-inch inner diameter bushing is typically suited for sub-calibre rounds like .17 Remington depending on your brass wall thickness.

Are there any electrical compliance requirements or Australian safety certifications needed for this product?

No electrical compliance, SAA, or RCM certifications are required for the Redding 73202. This is a purely mechanical, non-powered reloading accessory with no mains power requirements for use in your workshop.

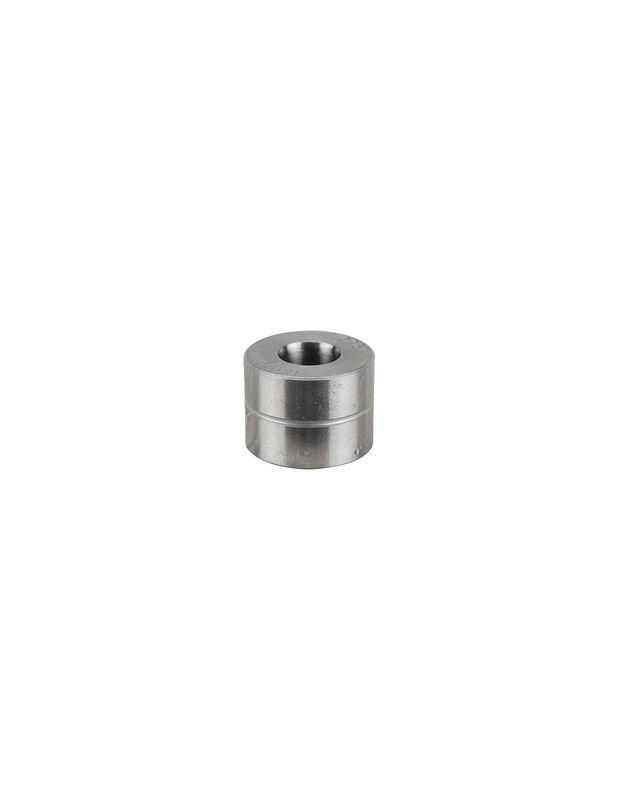

Neck Sizing Bushing - Redding 73202

The Redding .202 Heat-Treated Steel Neck Sizing Bushing (MPN 73202) is a precision reloading component engineered to control cartridge neck diameter and bullet tension. Designed for use in Redding Type S Bushing Full Length and Neck Sizing Dies, Redding Competition Dies, and standard L.E. Wilson-style dies, this mechanical bushing resizes the case neck to an exact dimension without overworking the brass. Heat-treated to a hardness of Rockwell C 60–62, the bushing features a hand-polished internal bore to reduce friction and sizing effort during the reloading stroke.

Key Features

Precise Neck Tension: Accurately sizes case necks to an exact 0.202-inch internal dimension, extending brass working life by eliminating unnecessary neck sizing.
Hand-Polished Interior: Features a hand-polished inner surface that reduces sizing resistance and minimises brass galling when used with standard case neck lubricants.
Durable Construction: Manufactured from high-grade steel hardened to Rockwell C 60–62 for long-term dimensional stability during high-volume bench reloading.
Universal Compatibility: Freely interchanges across all Redding Type S Bushing Dies, Redding Competition Bushing Dies, and standard 1/2-inch outer diameter bushing die systems.

Specifications

Internal Diameter (Bushing Size): 0.202 inches
Outer Diameter: 0.500 inches (1/2 inch)
Length / Height: 0.375 inches (3/8 inch)
Material: Heat-treated steel
Hardness Rating: Rockwell C 60–62 (Rc 60–62)
Manufacturer Part Number (MPN): 73202
Power Requirements: None (manual mechanical tool)

Who is the Redding .202 Heat-Treated Steel Neck Sizing Bushing for?

Precision handloaders tuning .17 calibre rifle ammunition — Requires a 0.202-inch inner diameter steel neck sizing bushing to achieve exact neck tension on sub-calibre brass cases, such as .17 Hornet, .17 Fireball, or .17 Remington, based on specific case wall thicknesses.
Varmint reloaders seeking consistent bullet grip and minimal runout — Utilises the Rockwell C 60–62 hardened steel construction and 0.500-inch outer diameter standard form factor to maintain tight concentricity across high-volume cartridge batch processing.

Less suitable for: Handloaders who require resizing case necks without applying case lubrication; stepping up to a Titanium Nitride (TiN) coated bushing provides a self-lubricating surface finish that eliminates the need for neck lube.

SKU	RD41757LP
Model #	73202
Brand	Redding
Shipping Weight	1.0000kg
