What dies are compatible with the Redding 73243 Neck Sizing Bushing?

The Redding 73243 bushing is compatible with all Redding bushing-style dies, including Type S Neck Sizing Dies, Type S Full Length Sizing Dies, and Competition Bushing Neck Sizing Dies. Additionally, it is fully interchangeable with standard Wilson-style neck sizing dies. It features standard external dimensions of 1/2 inch outer diameter by 3/8 inch length.

How do I calculate the correct bushing size and what are the brass wall thickness limits?

To determine the proper bushing diameter, measure the outside neck diameter of a loaded cartridge and subtract 0.001 inches to account for brass spring-back and achieve standard neck tension. If your case neck wall thickness varies by more than 0.002 inches, standard bushing sizing without an expander button can result in inconsistent internal tension, meaning cases may need to be neck-turned.

Do I need to use case neck lubrication with this heat-treated steel bushing?

Yes, Redding recommends applying a light case neck lubricant when using heat-treated steel bushings to prevent galling and reduce friction during the sizing stroke. If you are looking for an alternative that requires minimal to zero lubricant for high-volume reloading, Redding also manufactures Titanium Nitride-coated bushings which feature an increased surface hardness.

What is the material composition and internal finish quality of the Redding 73243 bushing?

The Redding 73243 is manufactured from heat-treated steel and features a hand-polished internal surface rated at approximately Rockwell Rc 60-62. This mirror polish minimizes friction and sizing effort while extending the overall tool life of the bushing.

Neck Sizing Bushing - Redding 73243

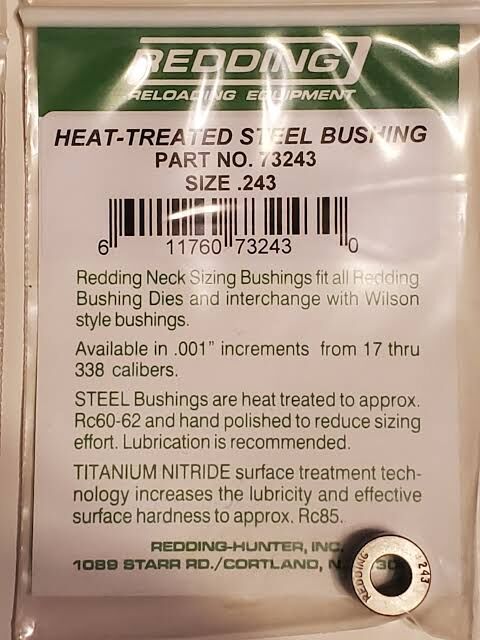

The Redding .243 Heat-Treated Steel Neck Sizing Bushing (MPN: 73243) is a precision reloading component designed to accurately size the outside neck diameter of cartridge brass. Featuring an internal sizing diameter of 0.243 in, this bushing regulates neck tension without overworking brass case necks. Built with standard external dimensions of 1/2 in (12.7 mm) outer diameter by 3/8 in (9.525 mm) length, it floats freely within Redding bushing-style dies to self-centre along the cartridge neck axis during the sizing stroke.

Key Features

Internal Sizing Dimension: Precision-machined to a 0.243 in inside diameter to set specific neck tension and chamber neck clearance.
Heat-Treated Steel Construction: Hardened to Rockwell Rc 60–62 with a hand-polished internal surface to minimise sizing friction and prevent premature tool wear.
Self-Centring Profile: Designed with standard 1/2 in O.D. by 3/8 in length dimensions to freely float and self-align in compatible sizing dies.
Die Interface Compatibility: Fully compatible with Redding Type S Neck Sizing Dies, Type S Full Length Sizing Dies, Competition Bushing Neck Sizing Dies, and standard Wilson-style neck sizing dies.
Lubrication Requirement: Standard heat-treated steel construction is designed for use with case neck lubricant to ensure smooth sizing strokes and prevent brass galling.

Product Specifications

Inside Diameter (Sizing Diameter): 0.243 in
Outer Diameter: 1/2 in (12.7 mm)
Length: 3/8 in (9.525 mm)
Material: Heat-treated steel
Surface Hardness: Rockwell Rc 60–62 (hand-polished internal finish)
Part Number (MPN): 73243

Who is the Redding .243 Heat-Treated Steel Neck Sizing Bushing for?

Precision Long-Range Match Rifle Reloaders — requires an exact 0.243 in internal diameter to establish uniform bullet grip and consistent release tension on match-grade cartridge cases.
Benchrest Handloaders — benefits from the hand-polished Rc 60–62 heat-treated steel finish and self-centring 1/2 in outer diameter body to maintain minimal runout across brass sizing cycles.

Less suitable for: Cartridge brass where neck wall thickness varies by more than 0.002 in, which requires neck-turning equipment or sizing dies equipped with an internal expander button to maintain consistent internal neck tension.

SKU	RD41763LP
Model #	73243
Brand	Redding
Shipping Weight	1.0000kg
