What die systems are compatible with the Redding 73289 .289 bushing?

The Redding 73289 bushing features a standard 1/2 inch outer diameter by 3/8 inch length, allowing it to freely interchange across all Redding bushing-style dies including Type S Neck Sizing Dies, Type S Full Length Sizing Dies, and Competition Bushing Neck Dies. It is also fully compatible with standard Wilson-style neck sizing dies for seamless integration into your reloading setup.

Do I need to lubricate case necks when using this standard heat-treated steel bushing?

Yes, case neck lubrication is strictly required when using this standard heat-treated steel bushing to prevent brass binding or scratching during the sizing stroke. If you prefer non-lubricated neck sizing, you should instead consider Redding's Titanium Nitride coated series, such as Model 76289, which features a lower friction coefficient.

What is the recommended sizing limit when stepping down brass with the 0.289 inch bushing?

Redding recommends that if a case neck requires more than 0.004 to 0.005 inches of total diameter reduction, sizing should be completed in multiple progressive bushing steps to prevent brass distortion or dented case shoulders. This 0.289 inch bushing is ideally suited for precision rifle calibres where loaded case neck diameters measure around 0.290 to 0.291 inches to achieve optimal 0.001 to 0.002 inch neck tension.

Are there any special firearm licensing endorsements required to purchase this bushing in Australia?

No special firearms licensing endorsements are required to purchase or own this bushing in any Australian state or territory. As a non-powered, mechanical reloading accessory, electrical compliance such as 240V mains power and SAA/RCM certifications are also not applicable.

Neck Sizing Bushing - Redding 73289

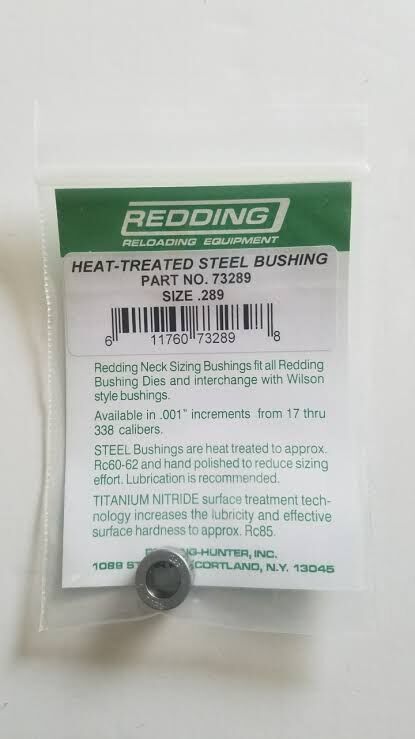

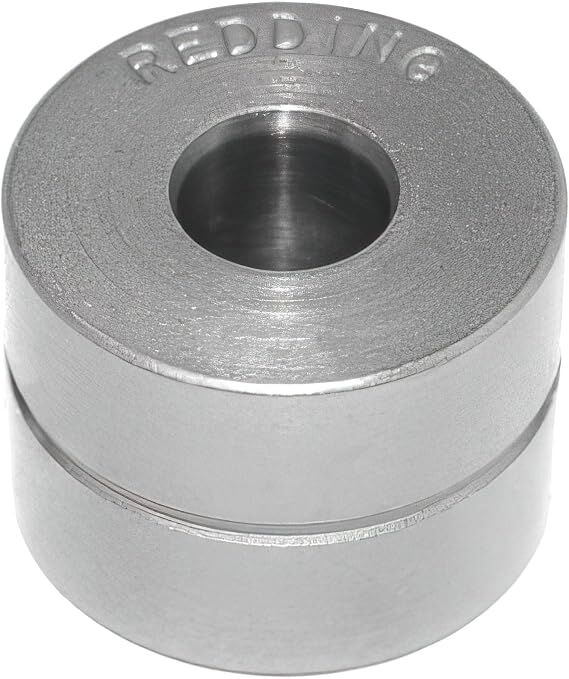

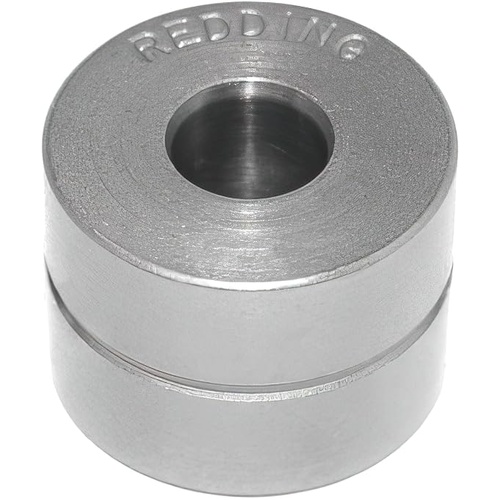

The Redding .289 Heat-Treated Steel Neck Sizing Bushing (MPN: 73289) is a precision reloading component engineered to size cartridge case necks to precise outer dimensions. By sizing only the outside diameter of the case neck, it eliminates the need for an expander ball to pull through the brass, controlling neck tension while preventing excessive working of the metal. Manufactured from hardened, heat-treated steel with a hand-polished interior bore, it minimizes sizing resistance and brass runout during operation.

Key Features

Precise Neck Tension Control: Directly sizes the outer case neck diameter down to 0.289 inches to yield uniform bullet release consistency and reduce neck runout.
Extended Brass Longevity: Prevents over-working of the cartridge brass by avoiding internal expander balls during the sizing stroke.
Hand-Polished Interior Bore: Finished with a polished internal surface to reduce friction and eliminate galling on lubricated case necks.
Broad Die Compatibility: Freely interchanges with all Redding Type S Neck Sizing Dies, Type S Full Length Sizing Dies, Redding Competition Bushing Neck Dies, and standard Wilson-style neck sizing dies.

Specifications

Internal Diameter (Sizing Size): 0.289 inches (stamped with size I.D.)
Outer Diameter: 1/2 inch (standard bushing O.D.)
Length: 3/8 inch
Material: Heat-treated steel
Surface Hardness: Approximately Rockwell C 60–62
Weight: Approximately 10–15 grams
Die Fitment: Redding Type S and Competition Bushing Dies, Wilson-style neck dies

Who is the Redding .289 Heat-Treated Steel Neck Sizing Bushing for?

Precision 6.5mm Handloaders — Requires a 0.289 inch internal sizing diameter to achieve precise 0.001 to 0.002-inch neck tension on loaded cartridges measuring 0.290 to 0.291 inches, commonly used for calibres such as 6.5 Creedmoor, 6.5x47 Lapua, and .260 Remington using this steel neck sizing bushing.

Less suitable for: Reloaders seeking a lubrication-free sizing process, who should use a Titanium Nitride (TiN) coated bushing, or cases requiring more than 0.004 inches to 0.005 inches of total neck diameter reduction, which requires intermediate stepping using multiple progressive bushing sizes to prevent brass distortion.

SKU	RD41769LP
Model #	73289
Brand	Redding
Shipping Weight	1.0000kg
