What dies are compatible with the Redding 73337 steel neck sizing bushing?

The Redding 73337 bushing features standard external dimensions of 1/2-inch outer diameter by 3/8-inch height. It is fully compatible with all Redding Type S Bushing Full Length and Neck Sizing Dies, Competition Neck Sizing Dies, and standard Wilson-style neck bushing dies.

Do I need to use case neck lubrication with this heat-treated steel bushing?

Yes, standard heat-treated steel bushings require external case neck lubrication, such as sizing wax or spray lube, prior to sizing to ensure smooth operation and prevent brass scuffing. If you prefer sizing without lubrication, you would instead want to look at Redding's Titanium Nitride coated bushing alternatives.

How do I determine if the 0.337-inch sizing diameter is correct for my specific brass?

Proper bushing selection relies on measuring the outside neck diameter of a loaded cartridge with your specific brass brand and bullet, then subtracting 0.001 to 0.002 inches. This 0.337-inch size is typically selected when your finished loaded neck diameter falls around 0.338 to 0.339 inches.

Are there any electrical compliance or SAA/RCM approvals required for use in Australia?

No electrical certifications or SAA/RCM approvals are needed for this product. The Redding 73337 is a completely unpowered, hand-operated mechanical reloading tool that can be freely imported and used on reloading benches across Australia.

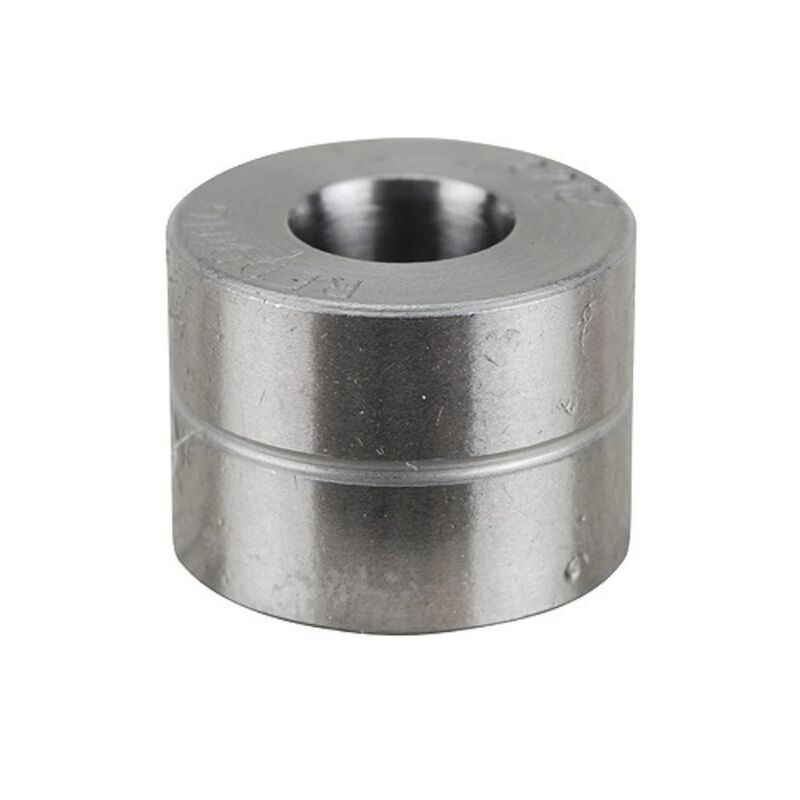

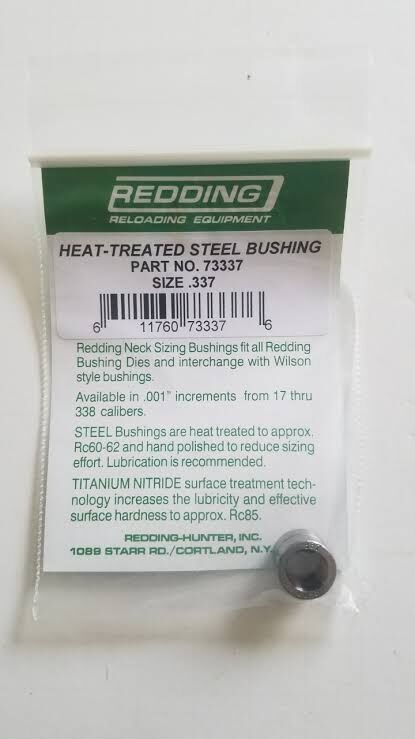

Neck Sizing Bushing - Redding 73337

The Redding .337 Heat-Treated Steel Neck Sizing Bushing (MPN: 73337) is a precision reloading component designed to regulate case neck tension with minimal brass fatigue. By sizing cartridge case necks down to an exact 0.337-inch nominal inside diameter, it eliminates the need to overwork brass or rely on standard expander buttons, reducing concentricity runout and extending case life. It is standardly sized to fit all Redding Type S Bushing Full Length and Neck Sizing Dies, Redding Competition Neck Sizing Dies, and standard Wilson-style neck bushing dies, commonly serving .30-calibre cartridges such as .308 Winchester, .30-06 Springfield, and .300 Winchester Magnum.

Key Features

Precise Neck Tension Control: Applies a precise 0.337-inch nominal sizing diameter to case necks to establish consistent bullet grip and uniform velocity.
Wear-Resistant Hardened Construction: Manufactured from heat-treated steel hardened to approximately Rockwell C 60–62 (Rc 60–62) for long-term dimensional stability.
Hand-Polished Interior: Minimises friction during case neck entry and withdrawal to preserve concentricity and prevent brass galling when used with proper case neck lubrication.
Standardised External Dimensions: Built to industry-standard 1/2-inch (12.7 mm) outer diameter and 3/8-inch (9.53 mm) height specifications for broad compatibility across bushing die platforms.

Specifications

Product Type: Steel neck sizing bushing
Model / MPN: 73337
Inside Sizing Diameter: 0.337 inches
External Dimensions: 1/2 in (0.500 in / 12.7 mm) outer diameter x 3/8 in (0.375 in / 9.53 mm) height
Material & Hardness: Heat-treated steel, Rockwell C 60–62 (Rc 60–62)
Die Compatibility: Redding Type S Full Length and Neck Sizing Dies, Competition Neck Sizing Dies, Wilson-style bushing dies
Lubrication Requirement: External neck lubricant required

Who is the Redding .337 Heat-Treated Steel Neck Sizing Bushing for?

Benchrest and F-Class precision reloaders — requiring exact tension management via an inside sizing diameter of 0.337 inches to minimise velocity spread without overworking brass necks.
PRS and long-range hunting reloaders — seeking durable heat-treated steel hardened to Rockwell C 60–62 to maintain concentric neck alignment across high-volume cartridge preparation in standard 1/2-inch outer diameter dies.

Less suitable for: Reloaders who require dry sizing without case lubrication, who should select a Titanium Nitride (TiN) coated bushing; cases with neck-wall thickness variations exceeding 0.002 inches, which require neck-turning tools or an expander mandrel; or loaded cartridge dimensions outside 0.338 inches to 0.339 inches, which require a different nominal bushing diameter.

SKU	RD41779LP
Model #	73337
Brand	Redding
Shipping Weight	1.0000kg
