Do I need a separate decapping tool when using the Redding 74111 Small Base Body Die?

Yes, this die features a hollow, non-decapping construction with zero internal moving parts, meaning it has no decapping pin or expander ball. You will need to complete depriming using a separate dedicated decapping die or hand tool prior to resizing your .223 Remington cases.

Is a small base body die necessary if I am reloading .223 Remington for a standard factory bolt-action rifle?

Generally, no. Standard bolt-action rifles with typical SAAMI factory chambers do not require a small base die, and you would be better served by a standard Redding Body Die or Full-Length Sizing Die to avoid unnecessary brass working.

What shellholders are compatible with the Redding 223 Rem Small Base Body Die on a standard reloading press?

This die utilizes an industry-standard 7/8"-14 thread interface to fit most reloading presses. For shellholder compatibility, it pairs with a standard Redding Shellholder #10 (Part #11010) or the Redding Competition Shellholder Set #11610, which are sold separately.

Are there any special lubrication requirements for operating the Redding 74111 die?

Yes, because small base dies exert higher sizing pressure over a broader surface area to reduce the case diameter near the web/base, high-pressure case lubrication is strictly required. Proper lubrication prevents cases from becoming stuck inside the hardened heat-treated steel die during the sizing stroke.

223 Rem Small Base Die - Redding 74111

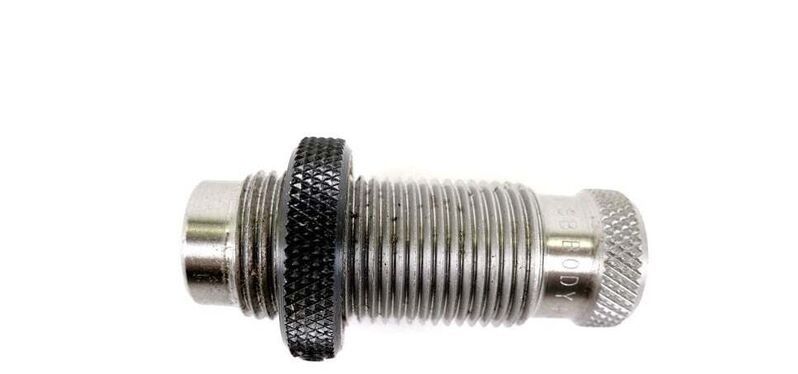

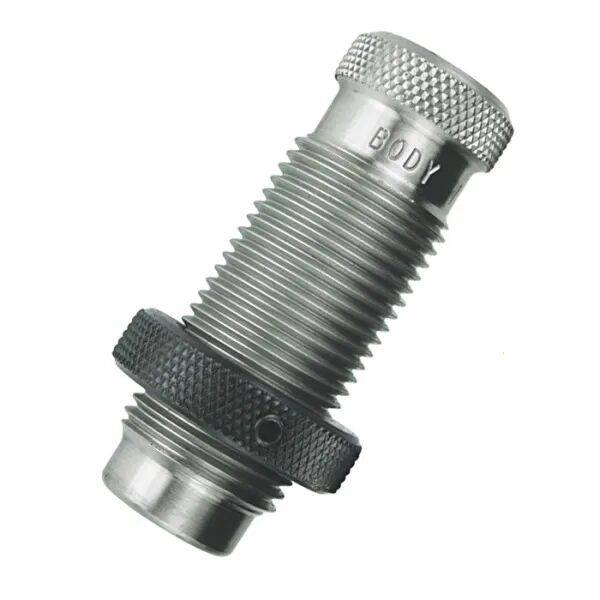

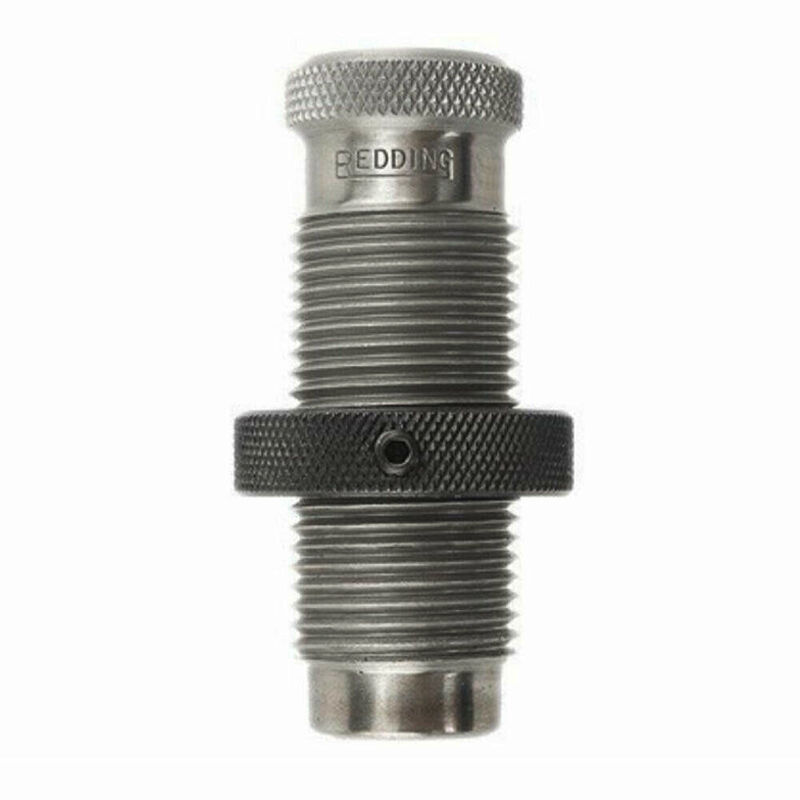

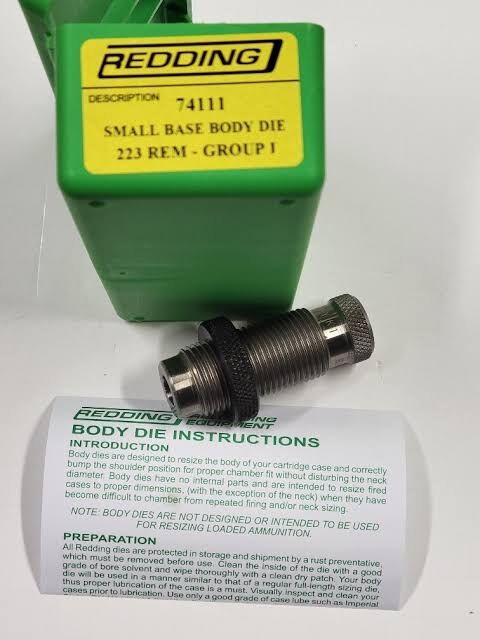

The Redding 223 Rem Small Base Body Die (MPN: 74111) is a dedicated metallic reloading die engineered to full-length resize the cartridge case body and bump back the shoulder position for .223 Remington and 5.56×45mm NATO brass. Designed specifically for tight-tolerance, custom match, semi-automatic, pump-action, or straight-pull chambers, it sizes the lower case diameter near the web slightly smaller than standard SAAMI-specification dies to ensure smooth feeding and reliable chambering. Built without an internal decapping pin or expander ball, this tool reshapes the case body and sets the headspace without contacting or altering the case neck.

Key Features

Targeted Body and Shoulder Resizing: Restores critical case body dimensions and bumps the shoulder back to maintain proper headspace while leaving the case neck untouched, making it an ideal companion tool for neck-sizing dies.
Small Base Geometry: Reduces the lower case body diameter fractions of a thousandth of an inch below standard full-length dies to eliminate chambering resistance and extraction failures in tight-fitting actions.
Hollow, Non-Decapping Construction: Features a solid, heat-treated steel internal profile without internal moving parts or decapping assemblies, requiring depriming to be completed separately.
Universal Press Mounting: Fits standard single-stage and progressive reloading presses using the industry-standard 7/8"-14 thread interface.

Specifications

Calibre Compatibility: .223 Remington / 5.56×45mm NATO
Manufacturer Part Number (MPN): 74111
Press Thread Interface: 7/8"-14 thread
Shellholder Compatibility: Standard Redding Shellholder #10 (Part #11010) or Competition Shellholder Set #11610
Product Weight: Approximately 230 g to 320 g (0.5–0.7 lbs)
Packaged Dimensions: Approximately 12.7 × 7.6 × 3.8 cm to 14.0 × 6.4 × 3.8 cm
Operation Type: Manual, mechanical reloading die (requires high-pressure case lubrication)

Who is the Redding 223 Rem Small Base Body Die for?

Semi-automatic and tight-chamber .223 Rem handloaders — provides critical clearance near the case web by sizing .223 Remington / 5.56×45mm NATO brass below standard SAAMI base dimensions using standard 7/8"-14 threaded reloading presses, ensuring reliable cycling and effortless extraction in restricted chambers without altering the neck.

Less suitable for: Standard factory-spec bolt-action rifles with typical SAAMI chambers that do not experience feeding resistance near the case head, where a standard body die or standard full-length sizing die is preferable to prevent unnecessary working of the brass.

SKU	RD41786LP
Model #	74111
Brand	Redding
Shipping Weight	1.0000kg
