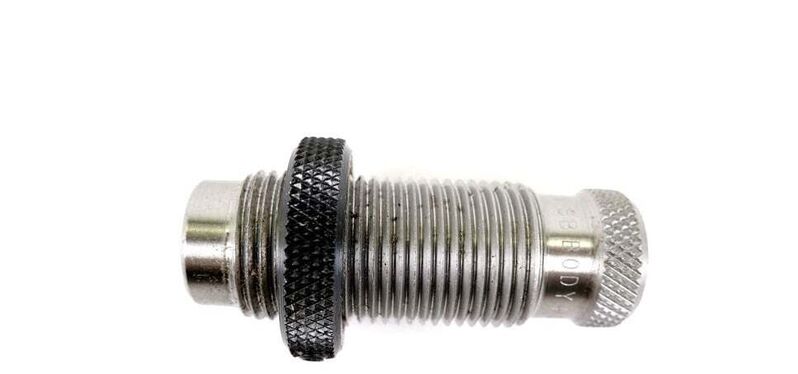

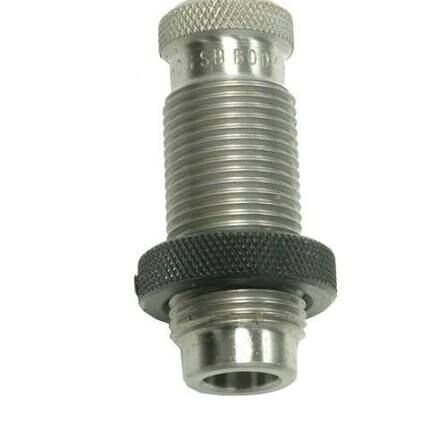

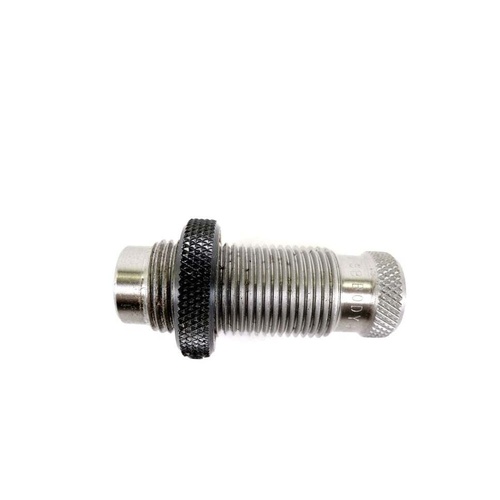

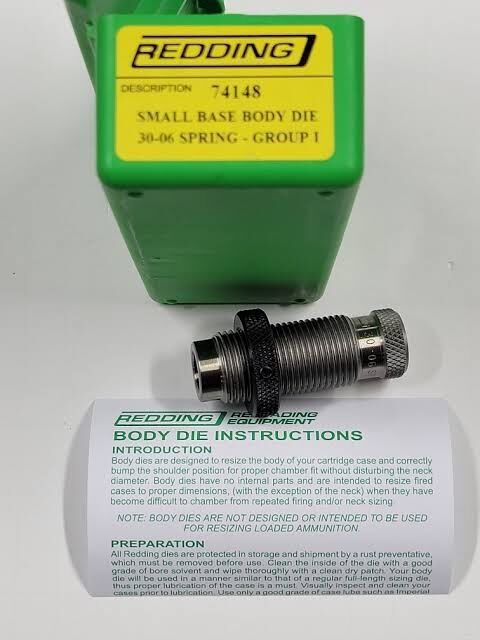

The Redding Small Base Body Die for .30-06 Springfield (Part #74148) is a precision-machined, heat-treated steel reloading die designed to resize case bodies and restore correct shoulder headspace without contacting or modifying the case neck. Sized slightly below standard SAAMI body dimensions, it provides additional clearance along the cartridge sidewalls to ensure reliable feeding and extraction. Constructed without an internal decapping assembly or expander ball, this die is engineered for modular reloading workflows where depriming and neck tension sizing are handled with dedicated secondary dies.

Key Features

• Small Base Resizing: Compresses the .30-06 Springfield case body slightly tighter than standard dimensions to eliminate chambering resistance in tight or non-bolt mechanisms.
• Neck-Free Body & Shoulder Sizing: Bumps the shoulder back to maintain headspace without touching case neck geometry or disturbing established neck tension.
• No Decapping Assembly: Contains no internal expander ball or decapping rod, preventing case neck stretch and allowing streamlined integration with separate neck-bushing dies.
• Standard Thread Mounting: Precision-threaded with an industry-standard 7/8"-14 thread for direct compatibility with standard single-stage and progressive reloading presses.

Specifications

• Cartridge Compatibility: .30-06 Springfield (0.308 in / 7.62 mm bullet diameter)
• Die Thread: 7/8"-14 thread
• Material: Heat-treated, precision-machined steel
• Shellholder Compatibility: Redding Shellholder #1 (Part #11001) or Redding Competition Shellholder #1 (Part #11601)
• Internal Assembly: Neck-free body sizing cavity without decapping pin or expander ball

Who is the Redding Small Base Body Die for .30-06 Springfield for?

• Handloaders reloading .30-06 Springfield for semi-automatic or pump-action rifles — requires small base reduction across the .30-06 Springfield case body to prevent feeding jams and stiff extraction in pump-action or semi-automatic actions using standard 7/8"-14 thread reloading presses.
• Precision shooters reloading .30-06 Springfield for custom-chambered bolt-action rifles — utilizes this small base body die to bump the shoulder and reduce sidewall diameter on .30-06 Springfield brass down to tight-tolerance match chamber dimensions without altering case neck geometry.

Less suitable for: Handloaders whose brass chambers smoothly and extracts without excess resistance in standard factory bolt-action rifle chambers; a standard body die or standard full-length resizing die should be used instead to avoid working the brass sidewalls unnecessarily and reducing case life.
