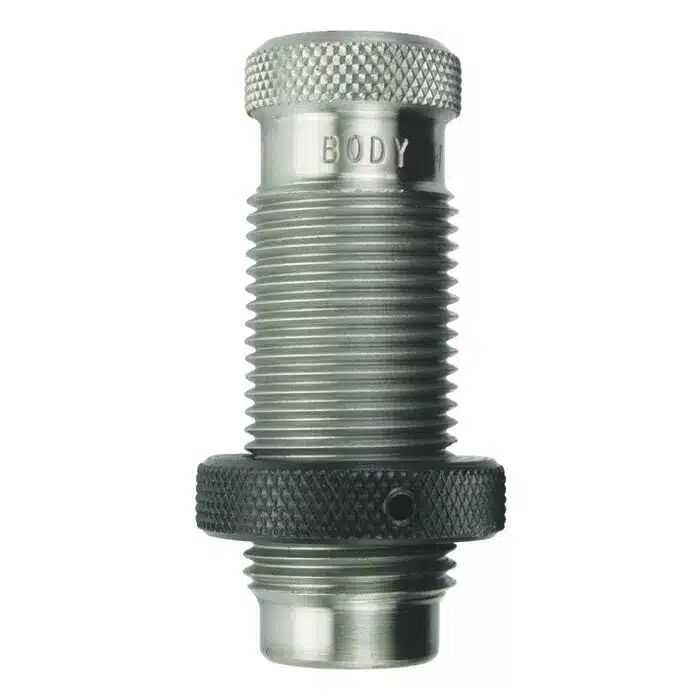

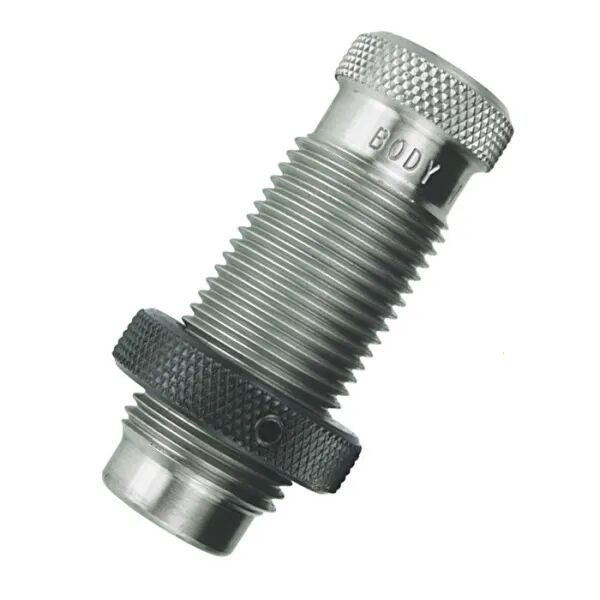

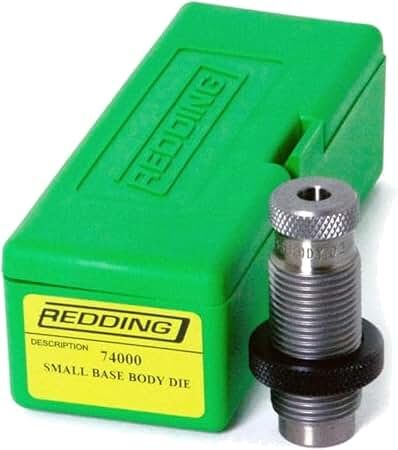

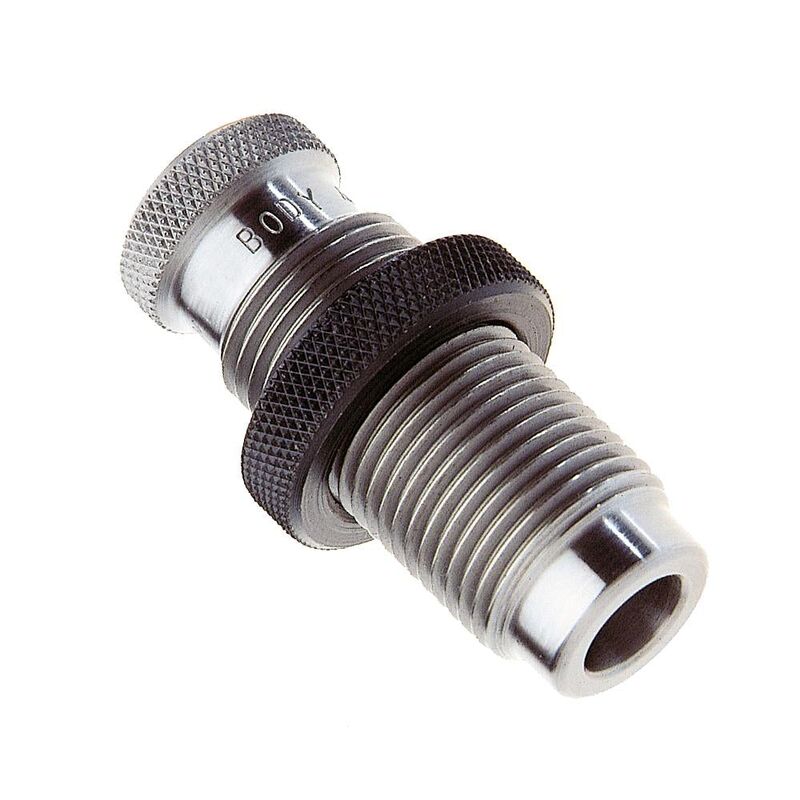

The Redding 6mm Creedmoor Small Base Body Die (MPN: 74443) is a specialised reloading tool precision-machined from heat-treated alloy steel. It is engineered to full-length resize the case body and bump the shoulder back to restore correct headspace on 6mm Creedmoor cartridge cases without contacting or altering case neck geometry. Designed with slightly tighter dimensions across the lower body and base than standard dies, it reduces case base diameter by an additional 0.001 to 0.002 inches relative to standard SAAMI full-length dies to eliminate base expansion hang-ups. The die features no internal decapping rod or expander ball, making it an ideal companion for standalone bushing neck dies when brass requires body sizing after repeated firings.

Key Features

• Dedicated Body Resizing: Restores factory headspace and resizes the case body without touching or disturbing the neck diameter or alignment.
• Small Base Dimensions: Sizes the lower case body 0.001 to 0.002 inches tighter than standard dies to ensure smooth chambering in tight configurations.
• Bushing Die Companion: Designed to work alongside neck-sizing dies, allowing reloaders to bump shoulders and size bodies only when brass becomes stiff to chamber.
• Precision Steel Construction: Built from heat-treated, precision-machined alloy steel fitted with a standard steel lock ring for durability.
• Mechanical Simplicity: Contains no internal expander ball or decapping rod, requiring depriming to be completed as a separate auxiliary operation.

Specifications

• Manufacturer Part Number (MPN): 74443
• Calibre: 6mm Creedmoor (.243 in bullet diameter)
• Press Thread: Standard 7/8"-14 thread
• Compatible Shellholders: Redding Standard Shellholder #1 (Part #11001) or Competition Shellholder Set #1 (Part #11601)
• Die Type: Small Base Body Die (non-decapping, non-neck-sizing)
• Operation: Manual, mechanical reloading press tool

Who is the Redding 6mm Creedmoor Small Base Body Die for?

• Semi-Automatic Rifle Handloaders — requires guaranteed feeding clearance and complete chamber closure in gas-operated rifles chambered in 6mm Creedmoor by sizing the lower case wall an extra 0.001 to 0.002 inches tighter than standard dimensions using standard 7/8"-14 thread reloading presses.
• Custom Match Bolt-Action Shooters — restores shoulder headspace and base dimensions on fire-formed 6mm Creedmoor brass for custom bolt-action rifles featuring match chambers cut tighter than standard SAAMI minimum specifications without altering established neck tension.

Less suitable for: Handloaders running standard factory SAAMI-spec bolt-action chambers where a standard full-length sizing die or standard body die avoids over-working brass, or reloaders needing decapping, body sizing, and neck expansion combined in a single-step operation where a standard full-length sizing die or full-length bushing die fits better.
