Will the Redding 6.5 Creedmoor Small Base Body Die resize the case neck or decap primers?

No, this die is strictly designed to resize the case body and bump the shoulder back without touching the neck. It also contains no internal decapping hardware or expander ball, meaning you will need to handle decapping as a separate step or use it in conjunction with a dedicated neck sizing die like the Redding Type S.

What shellholder do I need to use with the Redding 74446 Small Base Body Die on my reloading press?

This die requires either a standard Redding Shellholder #1 or a Redding Competition Shellholder Set #1, both of which are sold separately. It features an industry-standard 7/8"-14 thread interface making it fully compatible with all common single-stage and progressive presses used by Australian handloaders.

When should I choose this small base body die over a standard full-length sizing die for my 6.5 Creedmoor brass?

You should use this small base variant if you are reloading for a semi-automatic rifle or a tight custom match chamber where standard-sized brass fails to chamber or extract smoothly. It sizes the lower case wall slightly tighter than standard SAAMI specs, though standard full-length dies are still recommended for normal factory bolt-action rifles to avoid over-working the brass.

Does this mechanical reloading die require any electrical compliance certifications for use in Australia?

No, the Redding 6.5 Creedmoor Small Base Body Die is a completely manual, mechanical tool requiring no electrical power, batteries, or SAA/RCM certifications. It is built entirely from heat-treated steel and is ready for manual setup on your bench right out of the box.

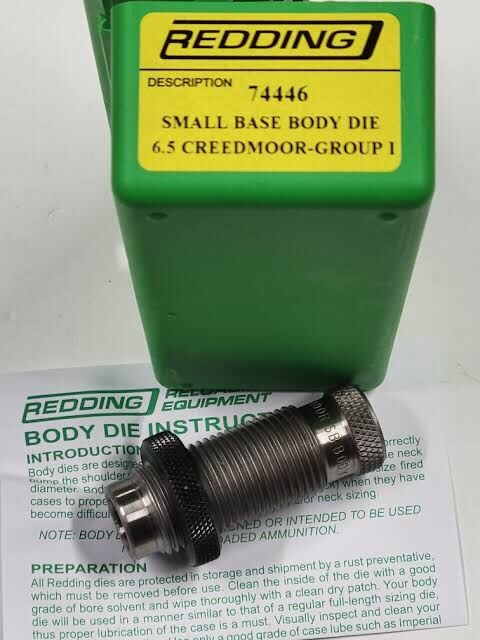

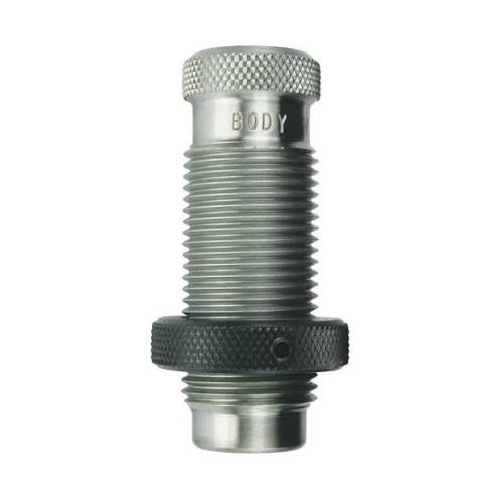

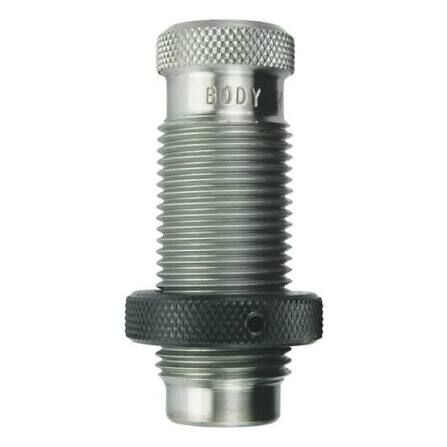

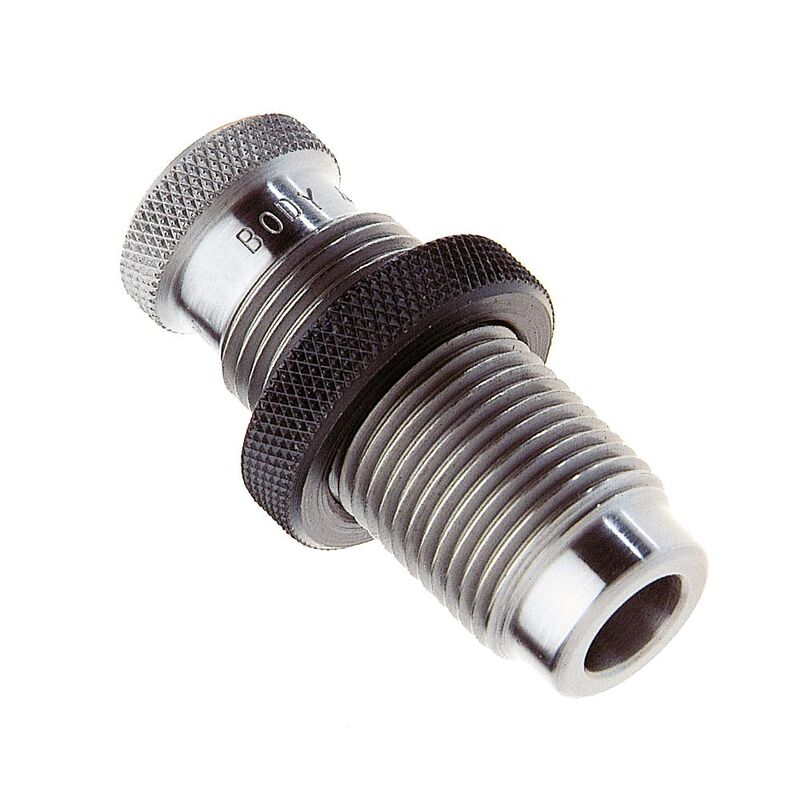

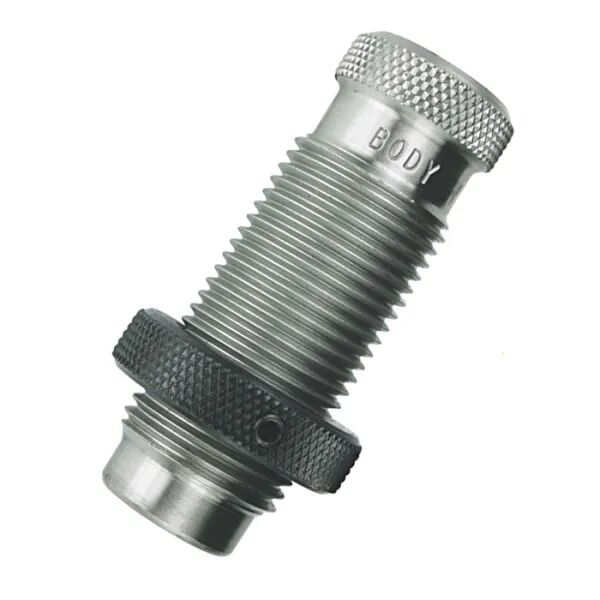

6.5 Creedmoor Body Die - Redding 74446

The Redding 6.5 Creedmoor Small Base Body Die is a dedicated metallic reloading die engineered to resize the case body and bump the shoulder back to correct headspace dimensions without contacting or altering the case neck. Designed specifically for 6.5mm Creedmoor cases, it features a small base profile that sizes slightly tighter along the lower case wall and web area compared to standard full-length dies. Built with an industry-standard 7/8"-14 thread interface, this manual reloading tool contains no internal decapping assembly or expander ball, allowing handloaders to control case dimensions without disturbing tuned neck tension.

Key Features

Body and Shoulder Sizing: Restores factory headspace and resizes the case body without touching the case neck or altering tuned neck dimensions.
Small Base Dimensioning: Delivers tighter sizing along the lower case wall and web area to ensure smooth feeding and reliable extraction.
Non-Decapping Design: Built without an internal decapping rod or expander ball, leaving primer removal as a separate, isolated step.
Universal Press Compatibility: Features standard 7/8"-14 threading to fit all standard single-stage and progressive reloading presses.

Specifications

Manufacturer Part Number (MPN): 74446
Calibre Compatibility: 6.5mm Creedmoor (0.264" bullet diameter)
Thread Interface: 7/8"-14 standard reloading thread
Shellholder Requirement: Standard Redding Shellholder #1 (Part #11001) or Redding Competition Shellholder Set #1 (Part #11601); sold separately
Tool Type: Mechanical non-powered small base body die
Shipping Weight: Approximately 0.2–0.3 kg

Who is the Redding 6.5 Creedmoor Small Base Body Die for?

Semi-Automatic and Match-Chamber Shooters — Provides tighter lower-web sizing on 6.5mm Creedmoor cases using standard 7/8"-14 threaded presses, ensuring reliable chambering and smooth extraction in tight custom chambers or semi-automatic actions where standard-dimension brass may fail to chamber fully.
Precision Handloaders Using Bushing Neck Dies — Allows isolated body sizing and shoulder bumping for 6.5mm Creedmoor cases across a 7/8"-14 press without touching the neck, making this small base body die ideal for integration into multi-step sizing routines alongside dedicated bushing neck dies.

Less suitable for: Handloaders working with other 6.5mm calibres (such as 6.5 PRC, 6.5x47 Lapua, or 6.5x55 Swedish), shooters requiring an all-in-one single-step resizing and decapping operation, or standard bolt-action shooters who do not need tight base reduction; a standard full-length sizing die or calibre-specific standard body die fits those requirements better.

SKU	RD41789LP
Model #	74446
Brand	Redding
Shipping Weight	1.0000kg
