What reloading press threading and shellholders are compatible with the Redding 243 Win Body Die?

The Redding 243 Win Body Die features industry-standard 7/8"-14 threading, making it fully compatible with almost all single-stage and turret reloading presses available in Australia. For shellholder compatibility, it requires a standard Redding Shellholder #1 (Part #11001) or Redding Competition Shellholders, which are sold separately.

Does this body die resize the cartridge neck or deprime fired .243 Winchester brass?

No, this die is constructed without an expander ball, depriming stem, or decapping assembly, meaning it does not touch or work-harden the cartridge neck. You must perform depriming using an independent universal decapping tool or die, and pair this product with a neck sizing die such as the Redding Type S Bushing Neck Die to maintain precise neck tension.

Are there any electrical compliance requirements or special import regulations for this tool in Australia?

As a purely mechanical and manually operated reloading tool, the Redding 75114 requires no mains electricity, batteries, or external motors, so 240V compatibility and SAA/RCM certifications do not apply. Additionally, reloading dies are classified as non-controlled accessories and can be imported and purchased without restriction across all Australian states and territories.

When should I choose this standard Body Die versus the Small Base Body Die (#74114) for my .243 Winchester?

The standard Redding Body Die (Model 75114) is designed to resize fired cartridge case bodies and bump shoulders for normal chamber tolerances without touching the neck. However, if you are reloading for tight custom chambers or semi-automatic auto-loaders that experience chambering resistance, Redding recommends using their Small Base Body Die (#74114) instead.

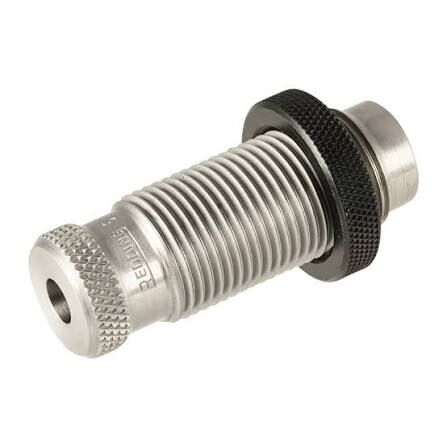

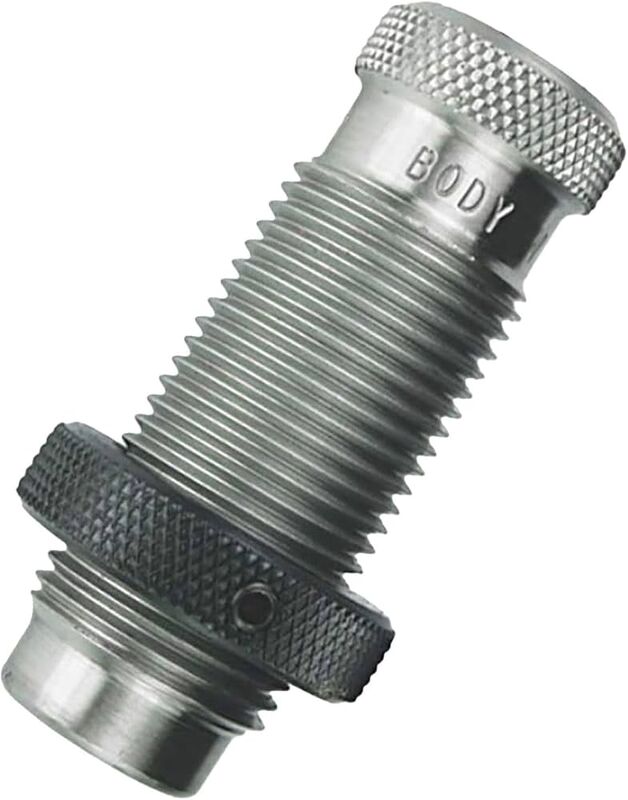

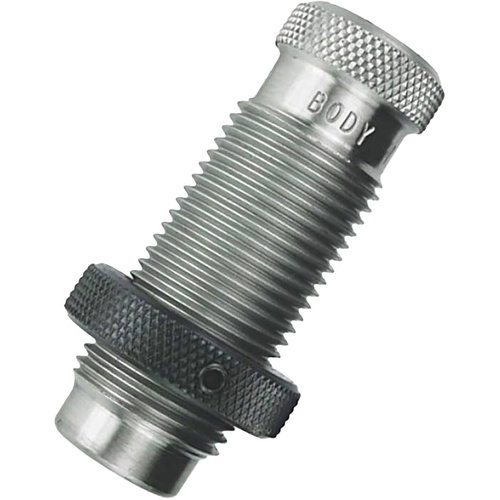

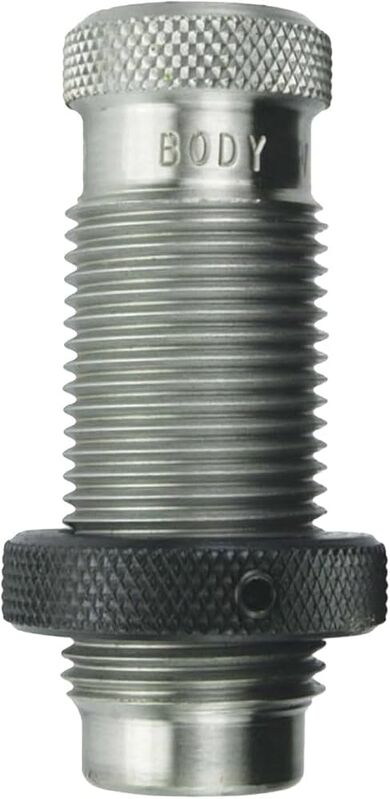

.243 Win Body Die - Redding 75114

The Redding .243 Winchester Body Die is a dedicated reloading die designed to resize the case body and bump the shoulder back to correct headspace dimensions without contacting or working the case neck. Engineered for fired .243 Winchester cartridge brass, it contains no internal depriming assembly or expander ball. This allows handloaders to restore chambering reliability on brass that exhibits bolt-closure resistance while preserving established neck tension. It mounts to manual reloading presses using standard 7/8"-14 threads and requires case lubrication prior to sizing.

Key Features

Body Resizing and Shoulder Bumping: Restores factory case body tolerances and pushes the shoulder back to maintain SAAMI headspace without touching or work-hardening the case neck.
Internal Neck Clearance: Machined with excessive internal clearance at the neck section, preventing any resizing of the neck diameter during the press stroke.
No Internal Components: Operates without an expander ball, depriming stem, or decapping assembly to eliminate drag through the neck.
Companion Die Workflow: Designed to pair with bushing-style neck sizing dies or universal decapping dies, enabling separate control over neck tension, decapping, and case body dimensions.

Specifications

Calibre: .243 Winchester
Thread Standard: 7/8"-14 standard press threading
Shellholder Compatibility: Redding Shellholder #1 or Redding Competition Shellholders
Product Weight: Approximately 0.4 lbs (181 g)
Overall Length: Approximately 5.30 inches
Operation: Manual press-mounted (unpowered)
Manufacturer Part Number: 75114

Who is the Redding 243 Win Body Die for?

Precision handloaders using .243 Winchester match brass — provides a dedicated reloading body sizing die to bump the shoulder and reduce outer case dimensions back to specification on fired .243 Winchester cases without disturbing fine neck-tension adjustments.
Reloaders pairing neck sizing dies with separate body sizing steps — delivers an independent 0.4 lbs sizing tool threaded in 7/8"-14 to correct bolt-close resistance on fired brass only when required, isolating body dimensioning from the neck sizing process.

Less suitable for: Handloaders seeking single-step sizing and depriming (a standard full-length sizing die with an integrated decapping assembly fits better), shooters resizing brass for tight custom or semi-automatic chambers experiencing chambering resistance (a small base body die fits better), or any application involving live, loaded ammunition.

SKU	RD41791LP
Model #	75114
Brand	Redding
Shipping Weight	1.0000kg
