Does the Redding 6.5x55 SE Body Die also resize the case neck or deprime my brass?

No, this is a dedicated body die designed strictly to resize the cartridge body and bump the shoulder back to SAAMI-standard headspace without touching the case neck. It also contains no internal moving parts like an expander ball or decapping rod, meaning decapping must be performed in a separate step prior to sizing.

What shellholders do I need to use with the Redding 75132 Body Die on my reloading press?

This die features an industry-standard 7/8"-14 thread and requires a Redding #7 Standard Shellholder (Part #11007) or a Redding Competition Shellholder (#11607) to operate correctly. These shellholders are sold separately and ensure proper alignment in single-stage or turret presses.

Does this reloading tool require any Australian electrical or regulatory compliance?

No, the Redding 75132 Body Die is a 100% mechanical reloading tool with no electrical components. Therefore, requirements for 240V power, Australian AC mains plugs, and SAA/RCM regulatory electrical certifications are not applicable.

What prep work is required before running fire-formed 6.5x55 brass through this body die?

You must apply a high-grade sizing wax or case lubricant, such as Imperial Sizing Die Wax, to the brass prior to resizing to prevent cases from sticking inside the die. Additionally, please note that body dies are strictly prohibited from being used on live or loaded ammunition.

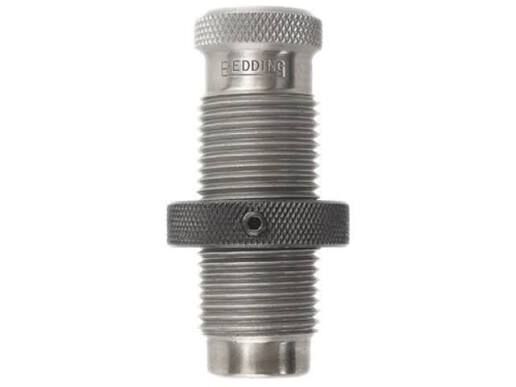

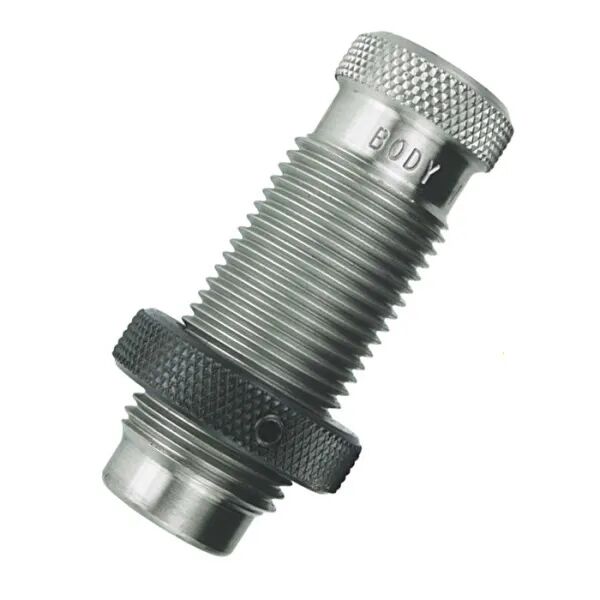

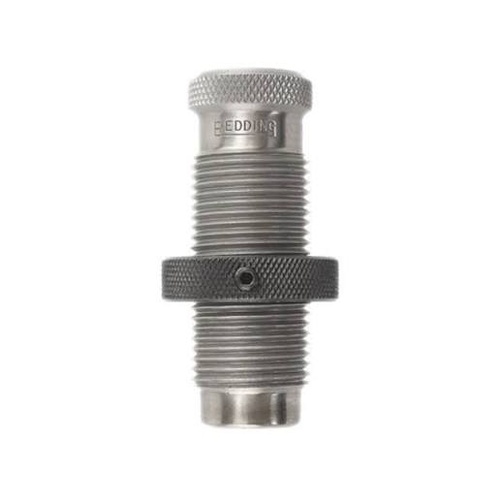

6.5x55 Body Die - Redding 75132

The Redding 6.5x55 Se Body Die is a precision reloading tool designed specifically for the 6.5x55mm Swedish Mauser cartridge. It full-length resizes the cartridge body and bumps the case shoulder back to standard factory headspace dimensions without sizing, contacting, or altering the case neck. Built from heat-treated alloy steel that is precision machined and hand polished, this die contains no internal moving parts, decapping rod, or expander ball. It serves as a dedicated companion die to be paired with neck-sizing dies, allowing handloaders to maintain precise neck tension and concentricity while restoring chamber clearance on repeatedly fired brass.

Key Features

Dedicated Body Resizing: Restores body dimensions and bumps the shoulder back without touching or working the neck diameter.
No Internal Assembly: Features no decapping pin or expander ball, requiring decapping to be conducted in a separate reloading stage.
Modular System Compatibility: Designed to complement neck-sizing tools, including bushing and competition neck dies, for isolated case preparation.
Precision Steel Construction: Machined from heat-treated alloy steel and hand polished for smooth mechanical operation.

Specifications

Calibre Compatibility: 6.5x55mm Swedish (6.5x55 SE / 6.5x55 Swede)
Press Threading: Industry-standard 7/8"-14 thread
Required Shellholder: Redding #7 Standard Shellholder (Part #11007) or Redding Competition Shellholders (#11607) (sold separately)
Material: Heat-treated, hand-polished alloy steel
Die Weight: Approximately 200–250 g (package weight with storage case ~0.3–0.4 kg)
Operating Mechanism: Manual mechanical reloading die

Who is the Redding 6.5x55 Swedish Body Die for?

Precision long-range match competitors loading 6.5x55 Swedish — mounts via standard 7/8"-14 thread to bump case shoulders back to SAAMI headspace specifications on fire-formed brass without altering tuned neck tension, making this 6.5x55 Swedish reloading body die ideal for modular match-prep routines.
Hunters and target shooters reloading for vintage military rifles — pairs with 7/8"-14 thread single-stage or turret presses to restore reliable feeding and bolt closure in Carl Gustaf M96 or M38 actions by sizing the body without overworking the case brass.

Less suitable for: Handloaders who need to deprime, neck-size, and body-size brass in a single operation without separate steps; a standard full-length sizing die fits that workflow better. It is also not suitable for loaded ammunition, and operating without case lubricant risks stuck cases.

SKU	RD41793LP
Model #	75132
Brand	Redding
Shipping Weight	1.0000kg
