Does the Redding 284 Winchester Body Die resize the case neck or deprime my brass?

No, this is a dedicated body die that features an oversized neck cavity, meaning it leaves the case neck completely untouched. It also contains no internal moving parts, decapping rod, or expander ball, so you must deprime your brass separately using a universal decapping tool or die before processing.

What shellholder do I need to use with the Redding 75141 body die on my reloading press?

The Redding 75141 features an industry-standard 7/8"-14 threaded die body that fits most standard reloading presses. It requires a standard shellholder #1, such as the Redding Part #11001, or the Redding Competition Shellholder #11601, which are sold separately.

Can I use this body die if I shoot with a custom tight chamber in my 284 Winchester?

The Model 75141 is engineered to size cases to standard SAAMI chamber tolerances. If you are firing brass through a custom match or tight chamber where standard cases fail to chamber easily, you will need to step up to the Redding Small Base Body Die (Model 74141) instead.

Are there any electrical compliance marks or special Australian safety certifications required for this tool?

No electrical compliance marks, SAA approvals, or RCM certifications are required because the Redding 75141 is a completely manual, mechanical reloading component that operates without electricity. It is well-suited for the Australian workbench, provided you apply a rust-preventative cleaning before first use and store it in standard atmospheric conditions to prevent corrosion.

Redding 75141 Body Die - Redding 75141

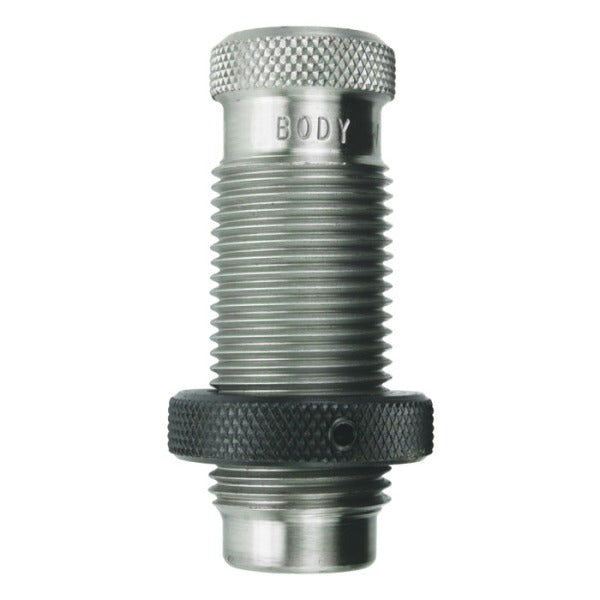

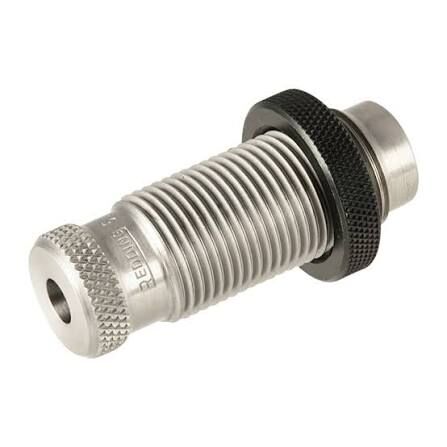

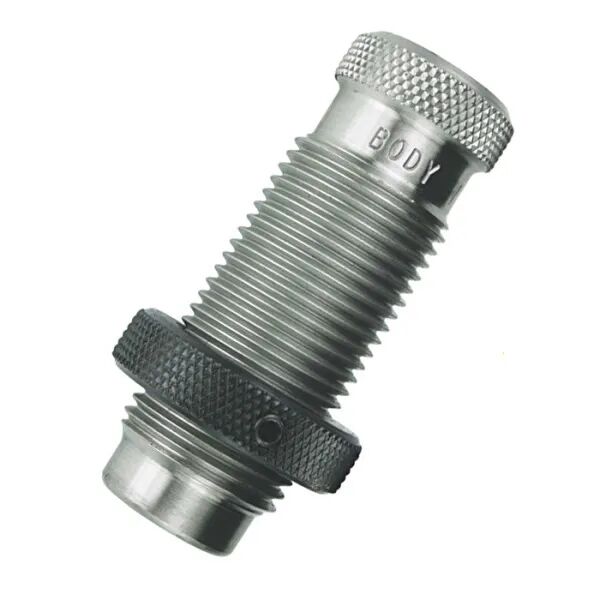

The Redding .284 Winchester Body Die is a precision reloading tool engineered to resize the cartridge case body and bump the shoulder datum line without making contact with the case neck. Built from heat-treated, case-hardened alloy steel that is precision-machined and hand-polished, this non-decapping die restores proper headspace and guarantees smooth chambering for fired brass. It functions without an internal expander ball or decapping assembly, making it an ideal companion tool for handloaders who use separate neck-sizing or bushing dies to isolate neck tension from body dimensions.

Key Features

Shoulder and Body Sizing: Full-length resizes the case body and bumps the shoulder back to maintain SAAMI headspace tolerances.
Untouched Case Neck: Features an enlarged neck cavity diameter that bypasses the case neck entirely, preventing unwanted work-hardening or alteration of neck tension.
Solid Non-Decapping Design: Operates without an expander ball or decapping rod, requiring spent primers to be removed with a separate decapping tool.
Press Compatibility: Built with standard 7/8"-14 threads to mount directly into standard single-stage and turret reloading presses.
Complete Setup: Supplied with a 7/8"-14 lock ring and a protective plastic storage box.

Specifications

Product Model: Redding 75141
Calibre Compatibility: .284 Winchester (standard SAAMI chamber specifications)
Thread Interface: 7/8"-14 TPI
Shellholder Compatibility: Redding #1 Shellholder (Part #11001) or Redding Competition Shellholder #11601
Material: Heat-treated, case-hardened alloy steel
Power Requirements: None (manual mechanical operation)

Who is the Redding 284 Winchester Body Die for?

F-Class competition shooters — requires precise shoulder bump control across fired .284 Winchester brass without disturbing carefully tuned neck tension, integrating seamlessly into existing presses via standard 7/8"-14 threading.
Long-range precision benchrest shooters — handloads .284 Winchester cases using separate bushing dies, utilising the Redding .284 Winchester Body Die alongside a #1 shellholder to independently resize the case body and set back the shoulder datum line.
Handloaders using standard SAAMI chambers — restores fired .284 Winchester cartridge dimensions to factory headspace specifications on standard reloading presses utilising industry-standard 7/8"-14 thread interfaces.

Less suitable for: Handloaders sizing fired brass for custom tight-tolerance match chambers (which require a dedicated small-base body die), cases requiring integrated neck sizing or expander mandrel work (which require a standard full-length sizing die), or loaded ammunition, as resizing live rounds in this die is strictly prohibited.

SKU	RD41795LP
Model #	75141
Brand	Redding
Shipping Weight	1.0000kg
