What specific function does the Redding 75153 Body Die perform on .300 Winchester Magnum brass?

The Redding 75153 Body Die is precision-machined from heat-treated hardened alloy steel to resize the cartridge case body and bump back the shoulder angle. It restores your fire-formed brass to proper SAAMI chambering dimensions to ensure smooth feeding and extraction, all without altering the neck diameter.

Does this body die decap spent primers or size the case neck during the reloading stroke?

No, this die contains no internal parts and features no internal decapping pin, expander ball, or bushing mechanisms. If you need to decap cases in the same stroke or size the neck, you will need to use a separate full-length sizing die or a dedicated neck-sizing die such as the Redding Type S Bushing Neck Die.

What reloading press threads and shellholders are required to use the Redding 75153?

The Redding 75153 is built with an industry-standard 7/8"-14 thread, making it fully compatible with popular single-stage and progressive reloading presses commonly used in Australia, such as the Redding Big Boss or RCBS Rock Chucker. It requires a Redding #6 Standard Shellholder (PN 11006) or #6 Competition Shellholder (PN 11606) to properly seat your .300 Win Mag brass.

Are there any electrical or regulatory certifications needed for this tool in Australia?

No electrical compliance or regulatory certifications are required for the Redding 75153. Because this is a purely mechanical reloading tool with a shipping weight of approximately 0.40 to 0.45 lb, 240V mains power, Australian power plugs, and SAA or RCM certifications do not apply.

How do I prevent sticky cases or chambering issues when using this die in outback workshop conditions?

To ensure flawless performance across standard ambient workshop and outback reloading bench temperatures, always apply an appropriate, high-quality case lubricant to your .300 Winchester Magnum brass before running them into the hardened alloy steel die. This prevents brass from sticking and preserves the longevity of the precision-machined interior.

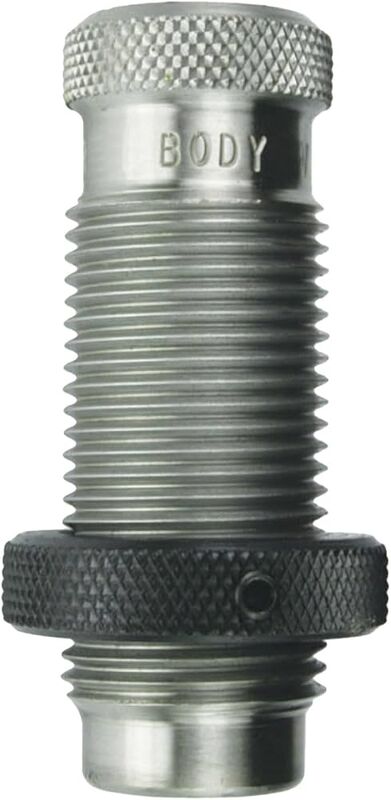

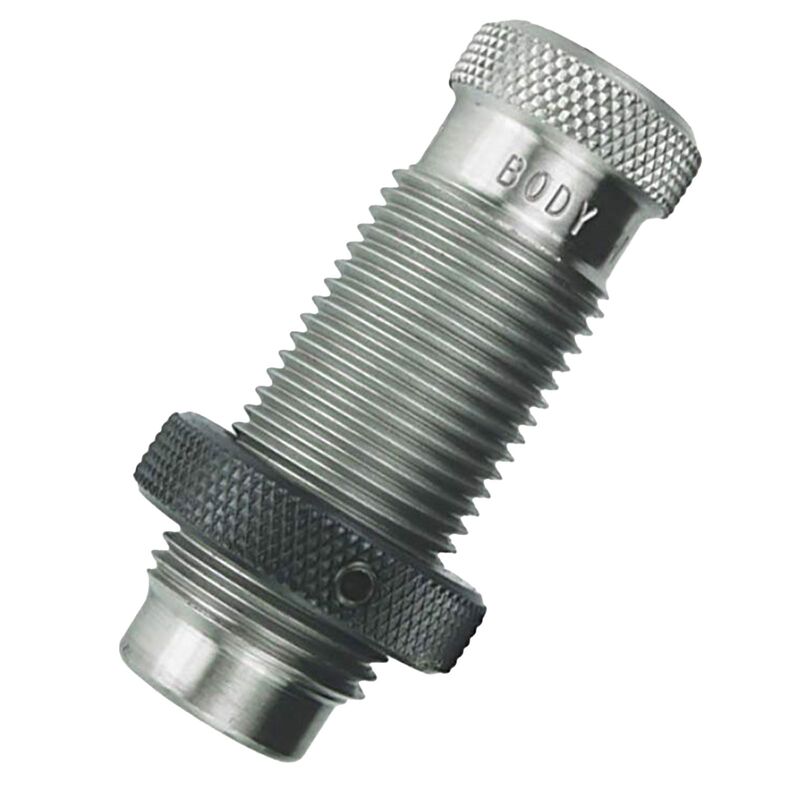

300 Win Mag Body Die - Redding 75153

The Redding 75153 Body Die for .300 Winchester Magnum is a dedicated reloading die machined from heat-treated hardened alloy steel. Designed to thread into standard 7/8"-14 reloading presses, it resizes the cartridge case body and bumps the shoulder back to correct headspace dimensions without contacting, sizing, or altering the neck diameter. Because it contains no internal expander ball, decapping assembly, or bushing mechanism, it serves as a companion tool for handloaders who use separate neck-sizing dies but need to restore smooth chambering on fire-formed brass.

Key Features

Targeted Body and Shoulder Resizing: Restores factory headspace and case body dimensions for .300 Winchester Magnum brass without touching the neck.
No Internal Mechanisms: Features a smooth internal bore without a decapping rod or expander ball, preventing unintended alteration of neck tension.
Hardened Steel Construction: Precision-machined from heat-treated alloy steel for long-term wear resistance under mechanical sizing pressure.
Standard Press Compatibility: Features an industry-standard 7/8"-14 thread interface to fit standard single-stage and turret reloading presses.

Specifications

Product Name: Redding Body Die for .300 Winchester Magnum
Manufacturer Part Number: 75153
Calibre: .300 Winchester Magnum (.308" bullet diameter)
Thread Interface: 7/8"-14 thread
Shellholder Compatibility: Redding #6 Standard Shellholder (PN 11006) or #6 Competition Shellholder (PN 11606)
Material: Heat-treated hardened alloy steel
Shipping Weight: Approximately 0.40–0.45 lb (~180–200 g)
Operation: Manual mechanical operation

Who is the Redding Body Die for .300 Winchester Magnum for?

Long-range precision shooters — require this reloading body die to bump the shoulder and resize case bodies on .300 Winchester Magnum brass while using separate bushing neck dies, fitting directly into standard 7/8"-14 thread presses.
Big-game hunters targeting sambar deer — need reliable chambering from fire-formed .300 Winchester Magnum handloads without overworking brass necks, pairing the die with a Redding #6 Standard Shellholder (PN 11006) across sizing cycles.

Less suitable for: Handloaders who need to decap spent primers and size the case neck in a single mechanical stroke, who require a standard full-length sizing die or a full-length bushing die, as well as reloaders sizing different cartridge families such as .30-06, .308 Winchester, .300 WSM, or 7mm Remington Magnum.

SKU	RD102875LP
Model #	75153
Brand	Redding
Shipping Weight	0.2000kg
