What reloading presses are compatible with the Redding 75317 6mm BR Remington Body Die?

The Redding 75317 body die features an industry-standard 7/8"-14 thread interface, making it fully compatible with all single-stage and turret reloading presses commonly used in Australia, including models from Redding, RCBS, Hornady, Lyman, and Lee.

Does this die resize the case neck or punch out fired primers?

No, this is a dedicated body die containing no internal moving parts, meaning it does not touch the case neck or remove fired primers. It is specifically designed to full-length resize the case body and bump the shoulder, requiring you to use a separate neck-sizing or bushing die—such as the Redding Titanium Nitride Neck Sizing Bushing in the appropriate size—alongside a separate depriming tool.

Which shellholder do I need to use with the Redding 75317?

This die requires a standard Redding Shellholder #1 (Part #11001) or a Redding Competition Shellholder #1 (Part #11601), which must be purchased separately to correctly seat and extract the 6mm BR Remington brass during the operation.

Can I use the Redding 75317 body die with standard .243 Winchester or standard 6mm Remington cartridges?

No, the Redding 75317 is strictly engineered for standard 6mm BR Remington (Bench Rest) cartridge cases. It is incompatible with standard .243 Winchester or non-BR 6mm Remington cartridges due to significant differences in case dimensions and shoulder geometry.

Does this manual reloading tool require any electrical certification or compliance in Australia?

As an entirely manual, non-powered mechanical reloading tool, the Redding 75317 does not require mains power, an Australian 240V power plug, or SAA/RCM regulatory electrical compliance, allowing you to set it up immediately on your workshop bench.

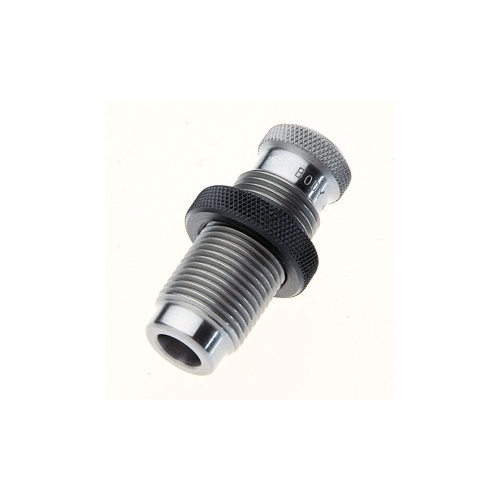

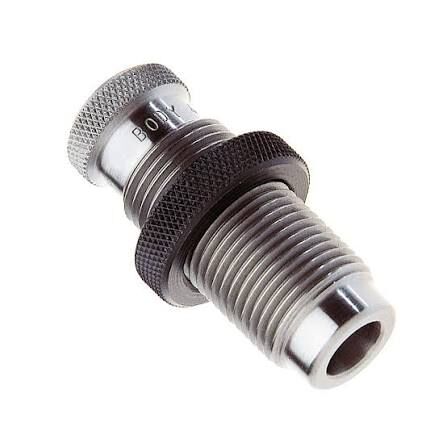

6mm BR Body Die - Redding 75317

The Redding 6mm BR Remington Body Die (Manufacturer Part Number: 75317) is a dedicated precision reloading tool engineered to resize the case body and bump the shoulder back to correct headspace dimensions on 6mm BR Remington brass. Machined from heat-treated steel, this die is designed with no internal decapping assembly or neck-sizing surfaces. This allows handloaders to restore smooth chambering and reliable bolt closure on repeated-firing cases without altering the neck diameter, working neck tension, or disrupting fire-formed case concentricity.

Key Features

Selective Case Resizing: Full-length resizes the cartridge body and sets back (bumps) the shoulder angle on 6mm BR Remington cases while leaving the neck entirely untouched.
Heat-Treated Steel Construction: Precision-machined from hardened alloy steel to withstand continuous reloading pressure and maintain exact internal dimensions.
Universal Press Threading: Built with industry-standard 7/8"-14 threads to mount directly into standard single-stage and turret reloading presses.
Separate Neck Tension Control: Allows handloaders to use dedicated bushing or neck-sizing dies independently to manage precise neck tension and preserve case life.

Specifications

Product: Redding 6mm BR Remington Body Die
Part Number: 75317
Calibre Compatibility: 6mm BR Remington (6mm Bench Rest Remington; 6mm / .243 in bullet diameter)
Die Thread Interface: 7/8"-14 standard thread
Shellholder Requirement: Standard Redding Shellholder #1 or Redding Competition Shellholder #1 (sold separately)
Material: Heat-treated, precision-machined steel
Internal Assembly: Non-decapping, non-neck-sizing solid body profile
Power Requirements: None (manual reloading equipment)

Who is the Redding 6mm BR Remington Body Die for?

Competitive benchrest reloaders — Requires exact cartridge headspace on 6mm BR Remington brass using standard 7/8"-14 thread presses to maintain effortless bolt closure during competition strings without overworking the brass.
Precision rifle handloaders — Needs a 6mm BR Remington body die to bump the shoulder and reduce body expansion while preserving custom fire-formed neck dimensions and concentricity established by separate neck-bushing dies.

Less suitable for: Handloaders seeking single-step reloading (this tool does not decap spent primers or size the case neck) or those chambered in standard .243 Winchester or full-length 6mm Remington cartridges; handloaders needing single-pass decapping and full sizing require a standard full-length resizing die with an integrated decapping rod assembly.

SKU	RD102857LP
Model #	75317
Brand	Redding
Shipping Weight	0.1000kg
