Can the Redding 75420 body die decap spent primers and resize the case neck at the same time?

No, this is a dedicated body die that contains no internal components, meaning it cannot decap spent primers or alter neck dimensions. It is specifically designed to work in conjunction with a separate neck-sizing tool, such as the Redding 73291 Neck Sizing Bushing, to preserve your preferred neck tension while bumping the shoulder.

Will this die work with standard, non-improved .243 Winchester factory brass?

No, the Redding 75420 is strictly engineered for the .243 Winchester Ackley Improved cartridge featuring a 40-degree shoulder. It is incompatible with standard, unformed .243 Winchester brass as it will not reform the body or shoulder correctly for a standard factory chamber.

What reloading press thread size and shellholder do I need to set up the Redding 75420?

This die features the industry-standard 7/8"-14 TPI thread interface, making it fully compatible with almost all single-stage and turret reloading presses. For proper operation with the .243 Winchester Ackley Improved case, it requires a Redding Standard Shellholder #1 (Part #11001) or a Redding Competition Shellholder #1 (Part #11601).

Do I need any special licensing to purchase and own this reloading die in Australia?

As a purely mechanical handloading accessory, the Redding 75420 body die is fully legal to own and distribute without a firearms licence in most Australian jurisdictions. Standard state or territory regulations only apply to the carriage and storage of live ammunition and powders, while electrical certifications like SAA/RCM do not apply to this non-powered tool.

Redding 75420 Body Die - Redding 75420

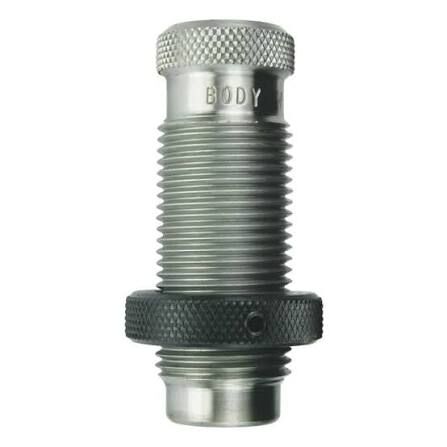

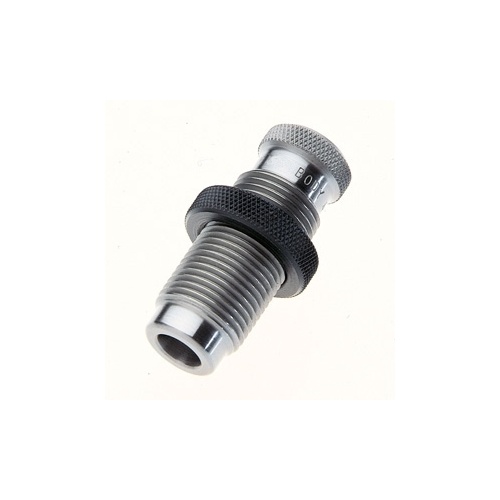

The Redding 75420 Ackley Improved Body Die is a dedicated handloading tool designed specifically for the .243 Winchester Improved 40° cartridge. Machined from heat-treated alloy steel, this die resizes the case body and bumps the 40-degree shoulder back to correct headspace dimensions without contacting, sizing, or overworking the case neck. Built with industry-standard 7/8"-14 TPI threads, it installs into standard single-stage and turret reloading presses to restore smooth chambering for fire-formed brass that has become tight after repeated firings.

Key Features

Neck-Free Body Sizing: Resizes case body diameters and sets back the 40° shoulder without touching the case neck, allowing handloaders to control neck tension independently using separate neck-sizing dies.
Chambering Restoration: Restores factory headspace dimensions on fire-formed cases to ensure reliable feeding and bolt closure in bolt-action chambers.
Standard Press Interface: Features standard 7/8"-14 TPI external threading for compatibility across standard reloading presses.
Shellholder Compatibility: Engineered to work alongside Redding Standard Shellholder #1 (Part #11001) or Competition Shellholder #1 (Part #11601).
Durable Construction: Precision-machined from heat-treated alloy steel for long-term dimensional consistency during high-volume case sizing.

Specifications

Manufacturer Model Number: 75420
Die Type: Body Die (Bushing & Specialty series)
Calibre Compatibility: .243 Winchester Improved 40° (Ackley Improved)
Press Thread Size: 7/8"-14 TPI
Material: Heat-treated alloy steel
Internal Assembly: Supplied without decapping rod, expander ball, or neck sizing surfaces

Who is the Redding .243 Winchester Ackley Improved Body Die for?

Precision long-range target shooters — needing to bump the 40-degree shoulder and resize the case body on .243 Winchester Ackley Improved handloads without inducing concentricity runout or altering existing neck tension, using standard 7/8"-14 TPI reloading presses.
Varmint hunters handloading bottleneck cartridges for bolt-action rifles — requiring reliable bolt closure and smooth feeding from repeatedly fired .243 Winchester Improved 40° brass by setting back the body and shoulder dimensions with a dedicated body die.

Less suitable for: Handloaders processing standard non-improved .243 Winchester brass with 20° shoulders, or reloaders wanting a single-step operation to decap spent primers and size the neck simultaneously; those workflows require a standard full-length sizing die equipped with a decapping rod and expander ball assembly.

SKU	RD102229LP
Model #	75420
Brand	Redding
Shipping Weight	0.2000kg
