What reloading dies are compatible with the Redding 76260 Titanium Nitride bushing?

This bushing is designed to fit all Redding Bushing-Style Sizing Dies, including Type S Bushing Full Dies, Type S Neck Sizing Dies, Competition Neck Sizing Dies, and standard Wilson-style neck sizing dies. It is built exclusively for standard 1/2-inch outer diameter die pockets and is not compatible with standard non-bushing full-length sizing dies or large-calibre oversized bushing dies.

How do I calculate the correct bushing size, and is this 0.260-inch model right for my brass?

The correct sizing diameter is typically calculated by measuring the neck diameter of a loaded dummy round with your chosen bullet seated, then subtracting 0.001 to 0.002 inches for proper tension. The 0.260-inch sizing diameter is primarily used for precision 6mm cartridges such as 6mm BR, 6mm Creedmoor, 6mm Dasher, or 6x47 Lapua, depending on your specific brass neck-wall thickness.

Does the Titanium Nitride (TiN) coating mean I can skip case neck lubrication during sizing?

No. While the ultra-hard gold TiN surface significantly reduces sizing drag, brass galling, and bushing wear compared to standard heat-treated steel, the manufacturer still explicitly recommends applying a light case neck lubricant during the sizing process to prevent brass from sticking.

Do I need any special permits, firearm licences, or electrical compliance approvals to purchase this bushing in Australia?

No permits or firearm licences are required to purchase or possess this reloading accessory, as it is classified as an unregulated mechanical component across all Australian states and territories. Furthermore, because it is an unpowered, manual reloading component with no electrical parts, it does not require mains power, 240V compatibility, SAA approval, or RCM compliance.

Neck Sizing Bushing - Redding 76260

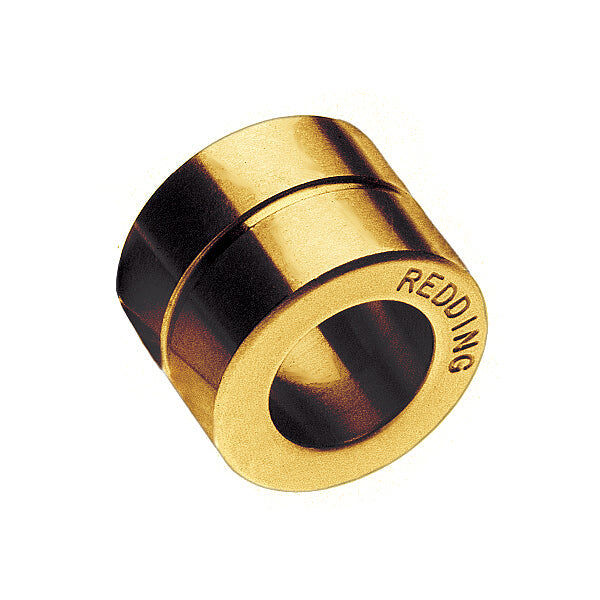

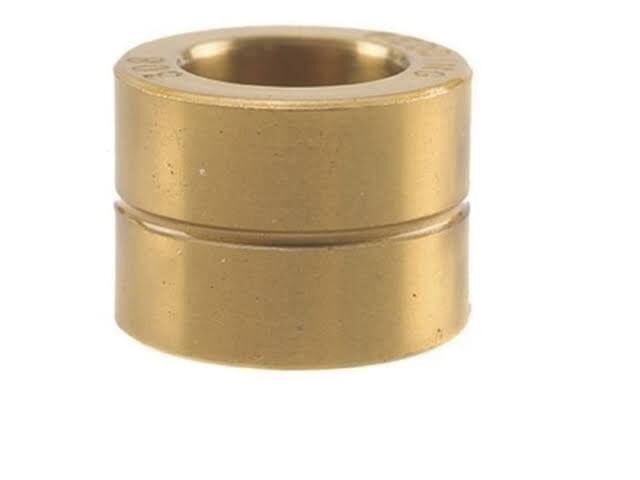

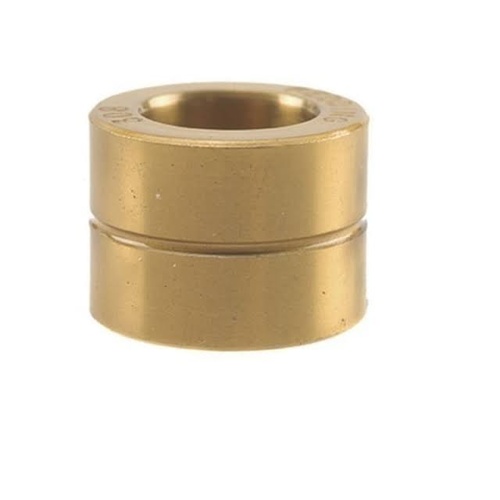

The Redding .260 Titanium Nitride Neck Sizing Bushing (MPN: 76260) is a precision metallic reloading component designed to control case neck sizing in exact increments. Built for standard bushing-style dies, it sizes case necks to an inside diameter of 0.260 inches without overworking brass or requiring standard expander balls, helping to minimise bullet runout. Constructed from heat-treated steel with a surface hardness of Rc 60–62, it features a durable Titanium Nitride (TiN) coating that reduces sizing friction and protects against brass galling.

Key Features

Titanium Nitride Coating: Low-friction gold TiN surface finish reduces sizing drag, brass resistance, and surface wear during repetitive sizing operations.
Precise Neck Tension Control: Directly sizes the exterior case neck to a precise 0.260-inch diameter to achieve uniform bullet release and seating tension.
Standard Fit Dimensions: Measures 1/2 inch (12.7 mm) in outer diameter by 3/8 inch (9.525 mm) in length for direct compatibility across standard bushing die pockets.
Clear Identification: Laser or roll-marked with size identity (.260) for rapid sorting and selection on the reloading bench.
Universal System Compatibility: Freely interchanges within Redding Type S Bushing Full Dies, Type S Neck Sizing Dies, Competition Neck Sizing Dies, and standard Wilson-style neck sizing dies.

Specifications

Inside Diameter (Sizing Diameter): 0.260 inches
Outer Diameter: 1/2 in (12.7 mm)
Length: 3/8 in (9.525 mm)
Base Material: Heat-treated steel (Rc 60–62 core hardness)
Surface Finish: Titanium Nitride (TiN) coating
Weight: Approximately 10–15 grams (unit weight)
Die Pocket Compatibility: Standard 1/2" OD bushing cavities (Redding Type S, Competition Neck, Wilson-style)

Who is the Redding .260 Titanium Nitride Neck Sizing Bushing for?

Long-range precision rifle competitors loading 6mm cartridges — requires the exact 0.260-inch inside diameter of this Titanium Nitride neck sizing bushing to achieve proper bullet seating tension on specific 6mm brass neck walls (such as 6mm Creedmoor, 6mm BR, or 6mm Dasher) without overworking the case brass.
Handloaders seeking exact neck tension control to reduce bullet runout — relies on the 1/2-inch (12.7 mm) outer diameter by 3/8-inch (9.525 mm) length footprint and Rc 60–62 core steel construction of this neck sizing bushing to eliminate the need for standard die expander buttons and ensure concentric case necks.

Less suitable for: Standard non-bushing full-length sizing dies or large-calibre oversized setups (such as .50 BMG or 1-1/4-inch die platforms); handloaders running those configurations require standard fixed-dimension sizing dies or dedicated large-calibre oversized bushing dies.

SKU	RD41809LP
Model #	76260
Brand	Redding
Shipping Weight	1.0000kg
