What reloading dies are compatible with the Redding 76263 Titanium Nitride Neck Sizing Bushing?

The Redding 76263 bushing features standard external dimensions of a 1/2 inch outer diameter (0.500") and a 3/8 inch height (0.375"). It is designed to freely interchange across all Redding Bushing-style dies, including Type S Neck Bushing Dies, Type S Full Length Bushing Dies, and Competition Bushing Neck Sizing Dies, as well as standard Wilson-style neck sizing dies.

How do I determine if the 0.263 inch size is correct for my 6mm cartridges?

The 0.263" inside diameter bushing is typically utilized for precision 6mm and .243 calibre cartridges such as 6mm Creedmoor, 6mm BR, 6mm DASHER, or .243 Winchester. Handloaders should measure their loaded cartridge outside neck diameter and subtract 0.001" to 0.002" to determine the optimal bushing size, which generally suits brass with a loaded neck wall measurement between 0.264" and 0.265".

Are there any specific Australian electrical or regulatory standards required for this reloading bushing?

No. The Redding 76263 is a purely mechanical, non-powered reloading tool component. Therefore, Australian 240V compatibility, SAA approvals, RCM certifications, and Australian power plugs are not applicable, and it is fully compliant for import and use across all Australian states and territories.

What are the sizing limits when using the Titanium Nitride Neck Sizing Bushing?

Manufacturer guidelines recommend resizing case necks in incremental single steps of 0.002" to 0.004" at a time. For brass requiring extreme neck reductions greater than 0.005", you should step down progressively through intermediate bushings or anneal the brass first to prevent shoulder collapse.

Redding Neck Bushing - Redding 76263

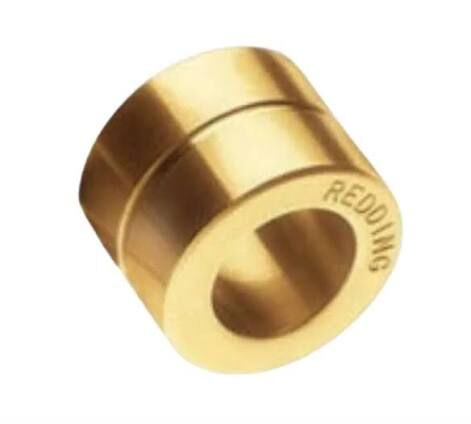

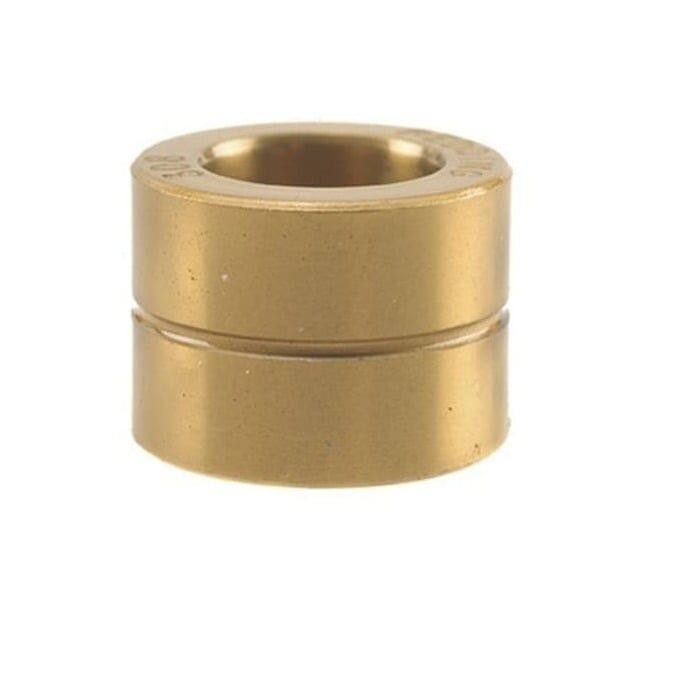

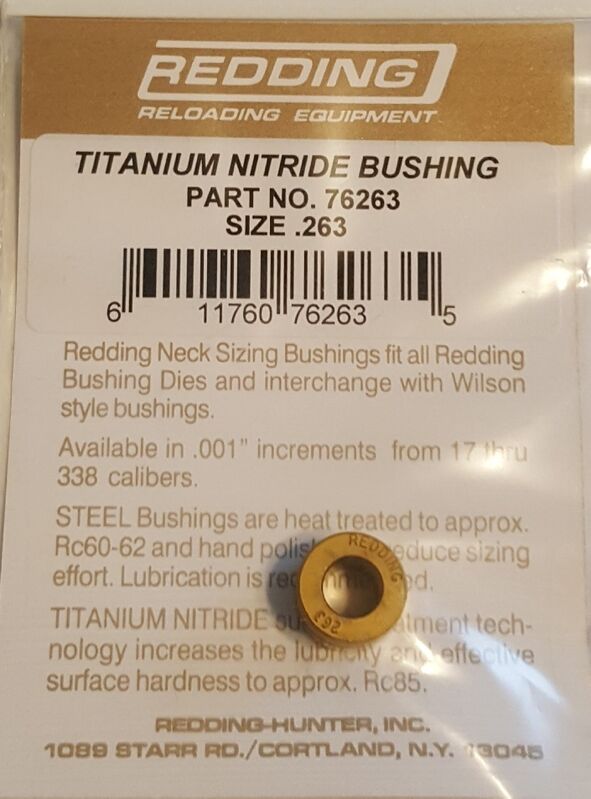

The Redding .263 Titanium Nitride Neck Sizing Bushing (MPN: 76263) provides precision handloaders with exact control over cartridge case neck tension and bullet grip. Machined from heat-treated steel and finished with a physical vapor deposition Titanium Nitride (TiN) coating, this bushing increases surface hardness and lowers friction during the sizing stroke to resist brass buildup and extend tool life. It is designed to interchange freely across all Redding Type S Neck Bushing Dies, Type S Full Length Bushing Dies, Competition Bushing Neck Sizing Dies, and standard Wilson-style neck sizing dies.

Key Features

Precise Neck Tension Sizing: Delivers an internal diameter of 0.263 inches, allowing handloaders to establish consistent bullet release without over-working the brass.
Titanium Nitride (TiN) Surface Coating: Reduces friction and required sizing effort while offering superior wear resistance against brass galling compared to standard steel bushings.
Universal Compatibility: Fits all die bodies accepting standard 1/2-inch outer diameter by 3/8-inch height bushing dimensions.
Clear Markings: Stamped clearly with its 0.263-inch sizing dimension for fast identification on the reloading bench.

Specifications

Manufacturer Part Number (MPN): 76263
Inside Sizing Diameter: 0.263 inches
Outer Diameter: 1/2 inch (0.500 inches)
Height / Length: 3/8 inch (0.375 inches)
Base Material: Heat-treated steel
Surface Finish: Titanium Nitride (TiN) coating
Unit Weight: Approximately 0.02–0.03 kg (0.8–1.0 oz)
Die Compatibility: Redding Type S Neck, Type S Full Length, and Competition Bushing Dies; Wilson-style neck sizing dies

Who is the Redding .263 Titanium Nitride Neck Sizing Bushing for?

Precision rifle handloaders loading 6mm cartridges — sizing brass for cartridges like 6mm Creedmoor, 6mm BR, 6mm DASHER, or .243 Winchester where loaded neck outside diameters measure between 0.264 inches and 0.265 inches, this titanium nitride neck sizing bushing provides the exact 0.263-inch inside diameter required to establish 0.001-inch to 0.002-inch of uniform neck tension.

Less suitable for: Cases requiring extreme neck diameter reductions greater than 0.005 inches in a single pass (which require progressive reduction using intermediate-sized bushings or case annealing), cartridges outside the nominal 6mm spectrum, or brass with loaded neck dimensions outside the 0.264"–0.265" range, which require alternative bushing sizes ranging from .185" through .368" or standard non-bushing full length sizing dies.

SKU	RD41810LP
Model #	76263
Brand	Redding
Shipping Weight	1.0000kg
