What dies are compatible with the Redding .272 Titanium Nitride Neck Sizing Bushing?

This bushing features a 1/2-inch outer diameter and a 3/8-inch length, making it fully compatible with all Redding bushing-style dies like the Type S Full Length and Competition Neck Sizing dies, as well as standard L.E. Wilson bushing dies. Note that it is not suitable for larger cartridge sizes requiring 5/8-inch outer diameter bushings.

How do I determine if the 0.272 inch bushing size is correct for my specific 6mm cartridge?

To ensure proper neck tension without overworking the brass, first measure the outside diameter of a fully loaded cartridge neck. Subtract 0.001 to 0.002 inches from that measurement to find your required bushing size, meaning this 0.272-inch model is ideal for loaded necks measuring between 0.273 and 0.275 inches commonly found in 6mm BR, Dasher, and Creedmoor loads.

Are there any specific Australian electrical or regulatory compliance requirements like SAA for this bushing?

No electrical compliance or SAA/RCM certification is required for this item because it is a completely non-powered, mechanical reloading component. It can be freely imported and used across Australia without needing any specialized regulatory permits.

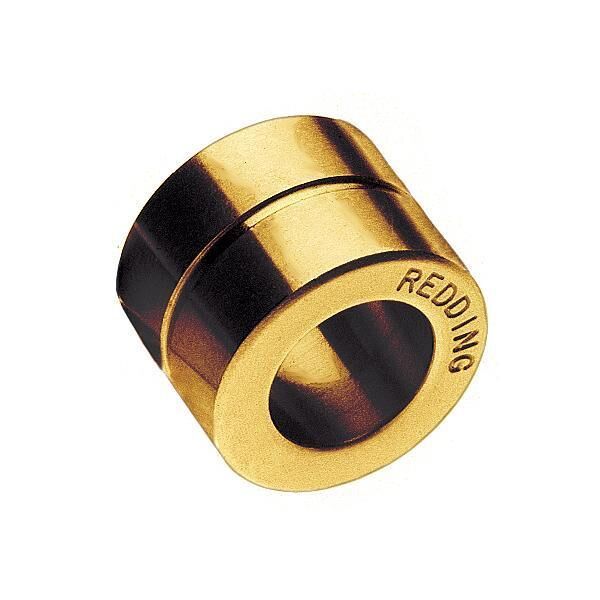

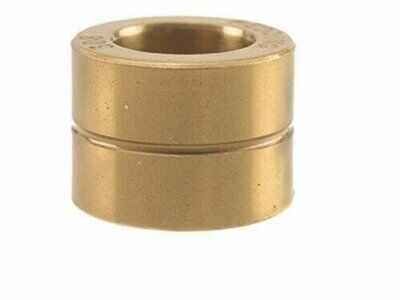

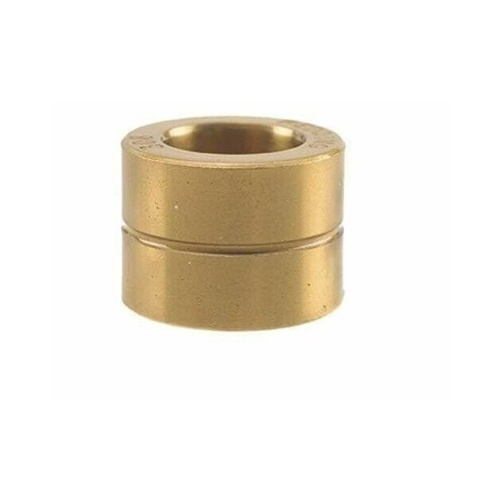

Neck Sizing Bushing - Redding 76272

The Redding .272 Titanium Nitride Neck Sizing Bushing allows handloaders to precisely set neck tension and bullet grip without using an internal expander ball. By eliminating the expander ball from the sizing process, this bushing helps prevent brass overworking and maintains cartridge concentricity. It features a heat-treated steel base coated with a micro-thin Titanium Nitride (TiN) surface layer, which increases surface hardness and provides a low coefficient of friction to reduce sizing resistance and minimise brass galling.

Key Features

Titanium Nitride Coating: Delivers a low-friction, high-hardness surface finish over a heat-treated steel base to reduce neck-sizing effort.
Precision Neck Tension Control: Sizes the case neck externally to a fixed internal diameter, eliminating the need for an expander button.
Standard Form Factor: Features a standard 1/2-inch outer diameter and 3/8-inch length to interchange freely across compatible bushing dies.
Etched Sizing Identification: Clearly marked with the .272 dimension for rapid identification on the reloading bench.

Specifications

Product Name: Redding .272" Titanium Nitride Neck Sizing Bushing
Manufacturer Part Number (MPN): 76272
Inside Diameter (Sizing Diameter): 0.272 inches
External Dimensions: 1/2 inch Outer Diameter (O.D.) x 3/8 inch Length (approx. 12.7 mm x 9.5 mm)
Material: Heat-treated steel with Titanium Nitride (TiN) surface coating
Die Compatibility: Redding Type S Bushing Full Length Dies, Type S Neck Sizing Dies, Redding Competition Neck Sizing Dies, and standard L.E. Wilson bushing dies

Who is the Redding .272 Titanium Nitride Neck Sizing Bushing for?

Precision rifle handloaders loading 6mm cartridges — sizing brass for cartridges such as 6mm BR, 6mm Dasher, 6mm Creedmoor, or 6x47 Lapua requires an inside diameter of 0.272 inches to achieve proper neck tension when loaded cartridge necks measure 0.273 to 0.274 inches.
Long-Range and F-Class competitive shooters — sizing cartridge necks without an internal expander using this Titanium Nitride Neck Sizing Bushing machined to a 1/2 inch Outer Diameter by 3/8 inch Length maintains precise cartridge concentricity.

Less suitable for: Handloaders working with cartridge cases where loaded neck measurements fall outside the 0.273 to 0.275 inch window (which require an alternative bushing size in .001-inch increments), or large-calibre setups requiring 0.367 to 0.405-inch sizing, which require a larger 5/8-inch O.D. neck sizing bushing.

SKU	RD41811LP
Model #	76272
Brand	Redding
Shipping Weight	1.0000kg
