What reloading dies are compatible with the Redding 0.282 Titanium Nitride Neck Sizing Bushing?

This bushing features standard external dimensions of 1/2-inch outer diameter and 3/8-inch length, allowing it to freely interchange across all Redding bushing-style dies, including Type S Bushing Neck Dies, Type S Full Length Dies, and Competition Bushing Neck Sizing Dies, as well as L.E. Wilson and other standard 1/2-inch bushing dies.

How does the Titanium Nitride (TiN) coating improve performance over standard steel bushings?

The Titanium Nitride surface treatment is applied over a precision-machined steel base heat-treated to Rc 60-62, significantly increasing surface hardness. This coating minimises friction and brass galling during the sizing process, reducing required sizing effort and extending the working lifespan of both your brass and the bushing.

What is the maximum single-pass reduction limit I can perform with this 0.282 inch bushing?

Redding advises against sizing down cartridge case neck diameters by more than 0.004 to 0.005 inches in a single pass with a single bushing. If you need to step down brass necks by a greater margin, you must use intermediate bushing sizes sequentially to avoid neck-shoulder concentricity defects or shoulder collapse.

Do I need any special permits or electrical compliance certifications to purchase this reloading component in Australia?

As a purely mechanical reloading tool, the Redding sizing bushing does not require 240V power, SAA/RCM electrical safety compliance, or any special firearm permits for purchase under Australian state and territory legislation.

Neck Sizing Bushing - Redding 76282

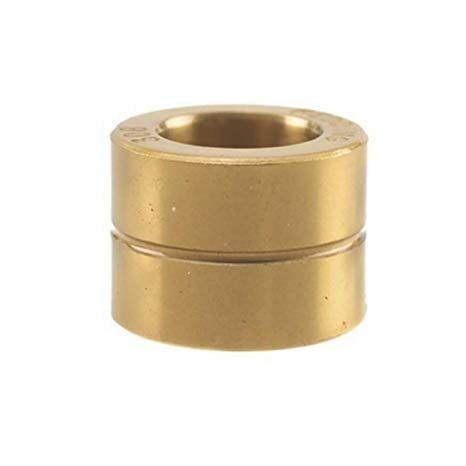

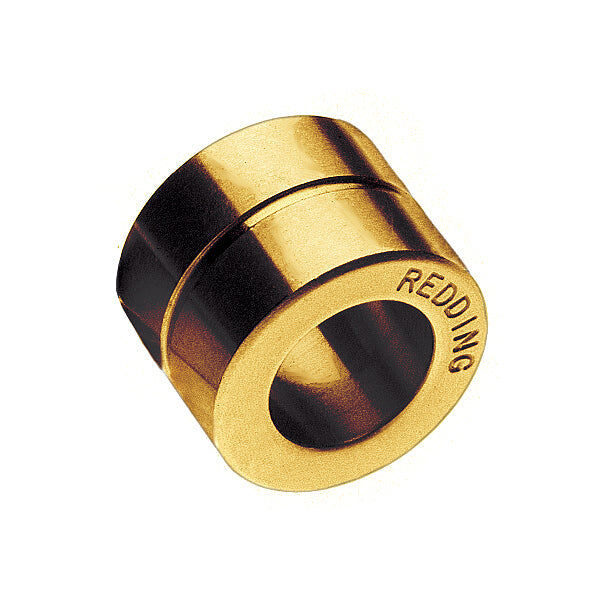

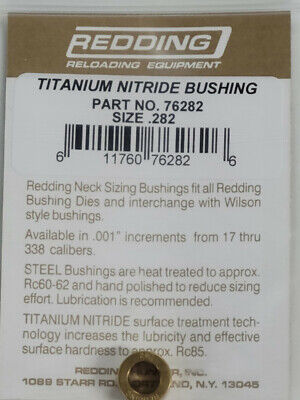

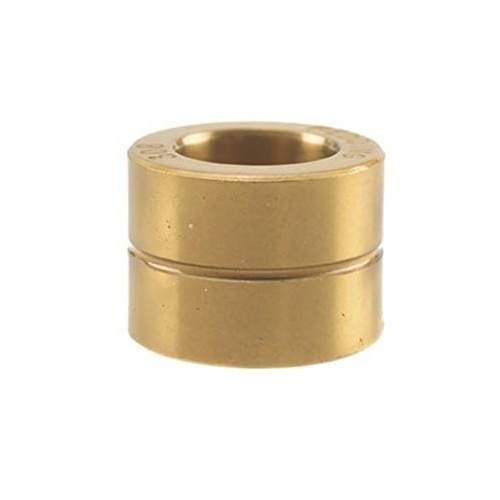

The Redding .282 Titanium Nitride Neck Sizing Bushing (MPN 76282) is a precision metallic reloading component engineered to size cartridge case necks to an exact dimension without overworking brass. Featuring an internal sizing diameter of 0.282 inches, this bushing establishes precise bullet grip and neck tension without requiring an expander ball. Built with standard 1/2-inch (0.500") outer diameter and 3/8-inch (0.375") length dimensions, it freely interchanges across all Redding Type S Bushing Neck Dies, Type S Full Length Dies, Competition Bushing Neck Sizing Dies, and standard 1/2-inch dies from brands such as L.E. Wilson.

Key Features

Titanium Nitride (TiN) Surface Treatment: Coated over a heat-treated steel base (heat-treated to approximately Rc 60–62) to increase surface hardness, reduce sizing friction, and minimise brass galling.
Neck Tension Customisation: Accurately sizes the neck down to 0.282 inches, letting handloaders set neck tension typically 0.001 to 0.003 inches under the loaded neck diameter.
Extended Brass Life: Eliminates excessive working of the case neck and minimises neck runout compared to standard full-length sizing dies with expander buttons.
Universal Outer Dimensions: Built with a 0.500-inch outer diameter and 0.375-inch height for compatibility across standard bushing reloading dies.

Specifications

Manufacturer: Redding Reloading Equipment
Model / MPN: 76282
Inner Diameter (Sizing Diameter): 0.282 inches
Outer Diameter: 1/2 inch (0.500 inches)
Length: 3/8 inch (0.375 inches)
Weight: Approximately 15–30 grams
Material & Finish: Heat-treated steel core (Rc 60–62) with Titanium Nitride (TiN) coating
Die Compatibility: Redding Type S Bushing Neck Dies, Type S Full Length Dies, Competition Bushing Neck Dies, and standard 0.500-inch die cavities

Who is the Redding .282 Titanium Nitride Neck Sizing Bushing for?

Handloaders loading 6.5mm precision rifle cartridges for benchrest and long-range shooting — requires a 0.282-inch inner diameter neck sizing bushing to achieve 0.001" to 0.003" neck tension on brass with loaded neck dimensions measuring approximately 0.283" to 0.285" (such as 6.5 Creedmoor, 6.5x47 Lapua, or .260 Remington).
Handloaders seeking to extend brass life and minimise neck runout using bushing-style reloading dies — relies on the 1/2-inch (0.500") outer diameter format to precisely control neck sizing without using an expander ball, preventing concentricity defects.

Less suitable for: Handloaders sizing neck diameters down by more than 0.005 inches in a single pass (which requires intermediate step-down bushings to prevent shoulder collapse), or calibres requiring outside neck dimensions other than 0.282 inches (which require alternative bushing diameters within Redding's .185" to .368" range).

SKU	RD41813LP
Model #	76282
Brand	Redding
Shipping Weight	1.0000kg
