What reloading dies are compatible with the Redding .285 Titanium Nitride Neck Sizing Bushing?

This bushing fits all Redding Type S Neck Sizing Dies, Type S Full Length Sizing Dies, and Redding Competition Bushing Neck Sizing Dies. It also physically interchanges with standard 1/2-inch outer diameter bushing-die systems from L.E. Wilson, Hornady, and RCBS. Please note that it will not fit Forster bushing dies due to their proprietary bushing dimensions.

Does this mechanical reloading accessory require any electrical compliance or SAA/RCM certification for use in Australia?

No electrical compliance or SAA/RCM certifications are required. The Redding .285 Titanium Nitride Neck Sizing Bushing is a purely mechanical tool component with zero electrical requirements, meaning it operates entirely independently of voltage or plug types in outback or home reloading benches.

How do I determine if the 0.285-inch sizing diameter is correct for my specific cartridge neck?

Redding specifies choosing a bushing diameter typically 0.001 to 0.002 inches smaller than the outside diameter of a loaded round's neck. This particular 0.285" model is engineered for loaded cartridge neck target windows around 0.286" to 0.287", commonly used with .257" or 6.5mm projectiles depending on your brass wall thickness.

Neck Sizing Bushing - Redding 76285

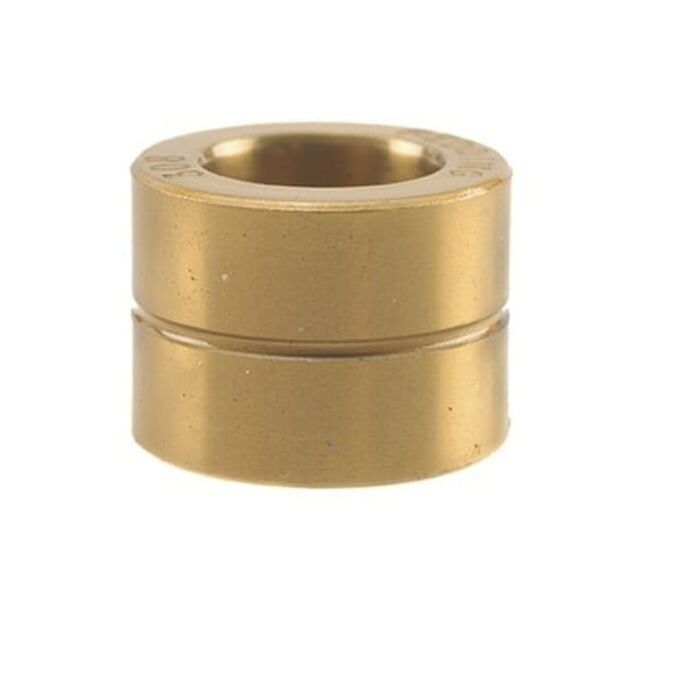

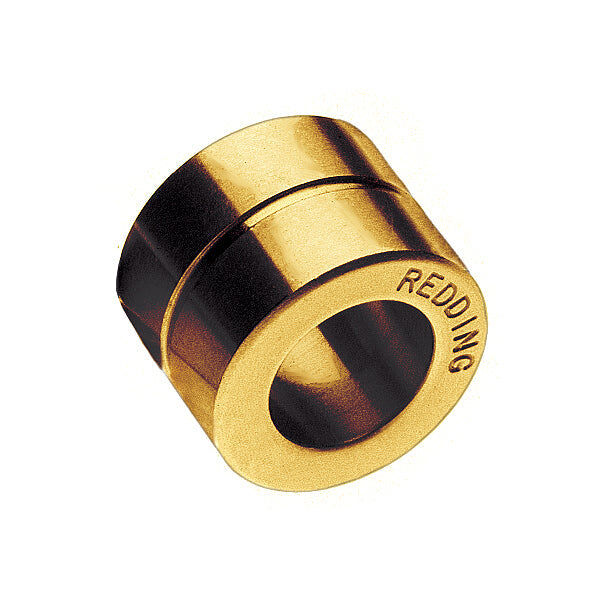

The Redding .285 Titanium Nitride Neck Sizing Bushing (MPN 76285) is a precision reloading component engineered to size cartridge case necks to an exact inside diameter of 0.285 inches. By sizing the exterior of the case neck without the use of a standard expander ball, it prevents unnecessary brass working, reduces neck runout, and extends overall cartridge brass life. Constructed from heat-treated steel coated in a durable Titanium Nitride (TiN) surface finish, this bushing reduces friction and resists brass galling during the sizing stroke. It features standard 0.500" outer diameter dimensions and a 0.375" length, making it compatible with Redding Type S Neck Sizing Dies, Type S Full Length Sizing Dies, and Redding Competition Bushing Dies, as well as standard 1/2-inch bushing-die systems from RCBS, Hornady, and L.E. Wilson.

Key Features

Precise Neck Tension: Establishes a controlled 0.285-inch outside neck dimension to optimize bullet grip and maximize concentricity across loaded rounds.
Titanium Nitride Coating: Hard TiN gold finish delivers high surface lubricity, minimizing sizing effort and lowering the risk of brass pickup.
Expander-Free Sizing: Eliminates the case-stretching effects of traditional internal expander balls to prevent brass fatigue and minimize neck runout.
Standardized Fit: Measures 0.500" in outer diameter and 0.375" in length for broad interchangeability across standard 1/2-inch bushing dies.
Size Stamped: Laser-etched or stamped with its 0.285" inside dimension for quick identification on the reloading bench.

Specifications

Manufacturer: Redding Reloading Equipment
Model / MPN: 76285
Inside Sizing Diameter: 0.285 inches
Outer Diameter: 0.500 inches (1/2")
Overall Length: 0.375 inches (3/8")
Material: Heat-treated steel with Titanium Nitride (TiN) coating
Compatible Die Systems: Redding Type S Neck, Type S Full Length, and Competition Bushing Dies; standard 0.500" O.D. bushing dies

Who is the Redding .285 Titanium Nitride Neck Sizing Bushing for?

Precision rifle competition handloaders — Sizes case necks to an exact 0.285-inch inside diameter within standard 0.500" outer diameter Type S dies, providing precise bullet tension control and eliminating expander ball runout for competition-grade concentricity.
Long-range hunting ammunition developers — Delivers a consistent 0.285-inch neck dimension using a low-friction 0.375" length Titanium Nitride neck sizing bushing, reducing brass work-hardening across repeated high-pressure reloads for field ammunition.

Less suitable for: Cartridge setups where the loaded outside neck diameter falls outside the ~0.286" to 0.287" target window (which requires selecting a different increment from an alternate-diameter bushing range) or reloaders using proprietary-dimension sizing dies that do not accept standard 0.500" outer diameter bushings.

SKU	RD41815LP
Model #	76285
Brand	Redding
Shipping Weight	1.0000kg
