What die bodies are compatible with the Redding .294 Titanium Nitride Neck Sizing Bushing?

This bushing is designed to fit any dedicated bushing-style die body featuring a standard 1/2 inch outer diameter pocket. This includes Redding Type S Neck Sizing Dies, Type S Full Length Dies, Competition Bushing Dies, and Wilson-style neck sizing dies that accept 1/2 inch O.D. bushings.

How do I determine if the 0.294 inch size is correct for my specific rifle cartridge?

Redding instructs handloaders to measure the outside neck diameter of a loaded cartridge and subtract 0.001 to 0.002 inches to account for brass spring-back and achieve the desired bullet grip tension. The 0.294 inch model is commonly suited for standard-wall 6.5mm or select turned 7mm brass requiring this precise finished outside neck diameter.

Does this reloading component require any Australian electrical certifications or special import permits?

No electrical compliance or SAA/RCM certification is required because this is an entirely mechanical, non-powered reloading tool. It is freely imported and sold within the Australian precision shooting market without any firearms licence restrictions on the tooling itself.

What maintenance is required to protect the Titanium Nitride coating and ensure long-term longevity?

The micro-thin Titanium Nitride surface provides a very low coefficient of friction and a core hardness of Rc 60-62 to resist wear. While the coating significantly reduces galling, Redding still recommends applying a light case neck lubrication during sizing to ensure optimal smoothness, protect your brass, and maximize the lifespan of the bushing.

Neck Sizing Bushing - Redding 76294

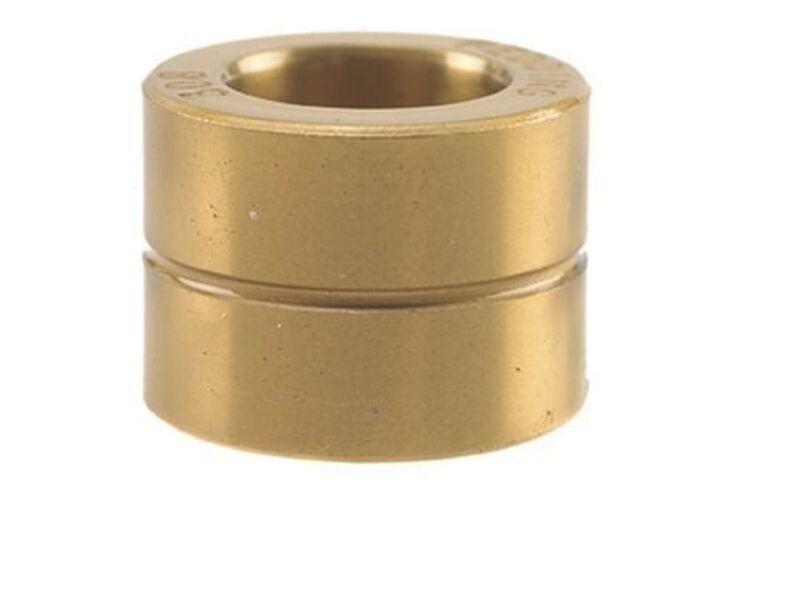

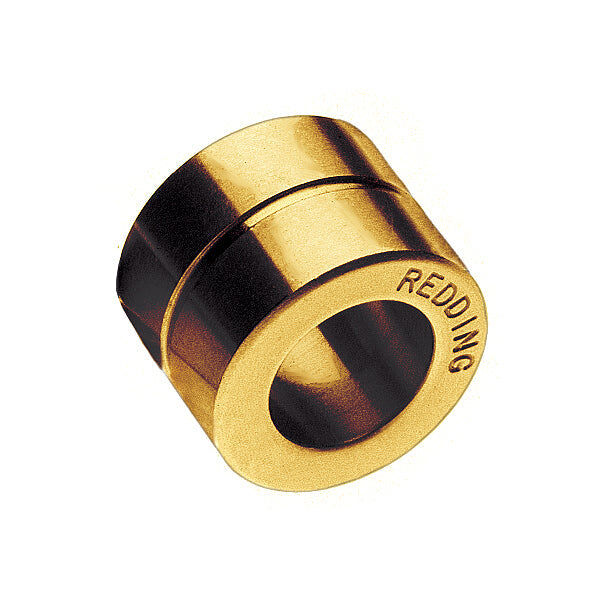

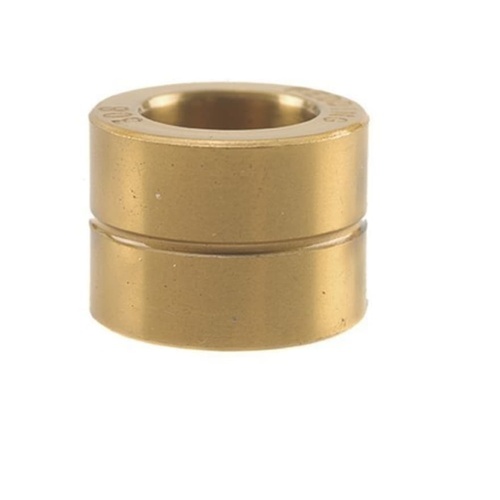

The Redding .294 Titanium Nitride Neck Sizing Bushing (SKU: 76294) is a precision reloading component engineered to control brass case neck constriction and bullet grip tension in exact .001-inch increments. Designed for precision rifle handloaders, this bushing sizes case necks to a targeted outside diameter without overworking the brass or requiring an expander ball. Built with a heat-treated steel base hardened to Rc 60–62, it features a micro-thin Titanium Nitride (TiN) surface coating that drastically reduces friction, minimises brass galling, and extends the service life of both the cartridge brass and the bushing itself.

Key Features

Precise Neck Sizing: Delivers an exact internal sizing diameter of 0.294 inches, allowing handloaders to set consistent bullet grip and neck tension on select rifle brass.
Titanium Nitride Coating: Features a low-friction TiN surface treatment over a hand-polished interior to reduce sizing resistance and brass wear.
Standard Die Compatibility: Built to standard external dimensions of 1/2" Outer Diameter (O.D.) by 3/8" Length (approx. 12.7 mm × 9.525 mm) for interchangeability across all Redding Bushing-Style Dies (Type S Neck Sizing, Type S Full Length, and Competition Bushing Dies) as well as Wilson-style neck sizing dies.
Extended Case Life: Prevents over-sizing and eliminates expander-ball neck stretching, maintaining concentricity and preventing premature case neck splits.

Specifications

Internal Sizing Diameter: 0.294 inches
Outer Diameter (O.D.): 1/2 inch (approx. 12.7 mm)
Length: 3/8 inch (approx. 9.525 mm)
Core Hardness: Rc 60–62
Base Material: Precision-machined, heat-treated steel
Surface Treatment: Titanium Nitride (TiN) coating
Die Compatibility: Redding Type S Neck Sizing Dies, Type S Full Length Dies, Competition Bushing Dies, and 1/2" O.D. Wilson-style dies
Power Requirements: None (manual mechanical reloading component)

Who is the Redding .294 Titanium Nitride Neck Sizing Bushing for?

Precision Rifle Handloaders: Sizing cartridges such as standard-wall 6.5mm (including 6.5 Creedmoor or 6.5x47 Lapua) or neck-turned 7mm brass that require a finished outside neck diameter of 0.294 inches to achieve optimal neck tension and concentricity using this Titanium Nitride Neck Sizing Bushing.

Less suitable for: Standard reloading setups without a dedicated 1/2" outer diameter bushing pocket; handloaders using non-bushing standard full-length sizing dies or neck-sizing dies require fixed-dimension sizing dies or alternative caliber-specific expander assemblies instead.

SKU	RD41816LP
Model #	76294
Brand	Redding
Shipping Weight	1.0000kg
