What reloading dies are compatible with the Redding 76361 Titanium Nitride Neck Sizing Bushing?

The Redding 76361 bushing features a standard 1/2-inch outer diameter and 3/8-inch length, allowing it to freely fit and interchange across all Redding bushing-style dies including Type S and Competition series. It is also fully compatible with bushing-style reloading dies from brands such as Wilson, RCBS, and Hornady.

How do I calculate if the .361 inch sizing size is correct for my .338 caliber brass?

To determine if the 0.361 inch size is appropriate, take your measured loaded cartridge outside neck diameter and subtract your desired neck tension, which is typically 0.001 to 0.002 inches. This specific .361 inch bushing is primarily selected for larger diameter cartridges within the .338 caliber family, such as .338 Lapua Magnum or .338 Winchester Magnum, depending on your specific brass wall thickness.

What precautions should I take if my brass requires a large neck diameter reduction?

If your neck sizing operation requires a reduction greater than 0.008 to 0.010 inches, Redding recommends stepping down the sizing process across multiple bushings in incremental passes. Attempting too large of a reduction in a single pass can lead to case shoulder damage or neck distortion.

Does the Titanium Nitride coating eliminate the need for case neck lubrication during sizing?

No, even though the Titanium Nitride (TiN) surface treatment significantly increases surface hardness and lowers friction compared to standard steel bushings, Redding still recommends applying a light case neck lubrication during the sizing cycle to ensure optimal operation and extend brass life.

Redding Neck Sizing Bushing - Redding 76361

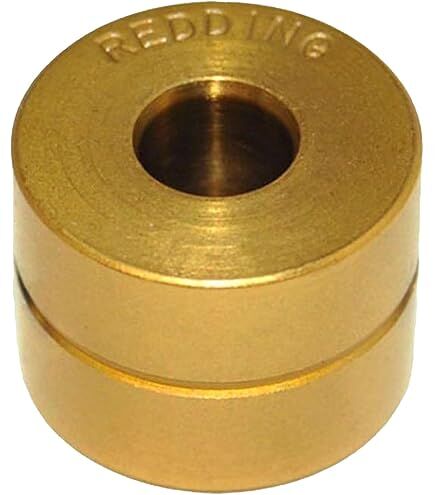

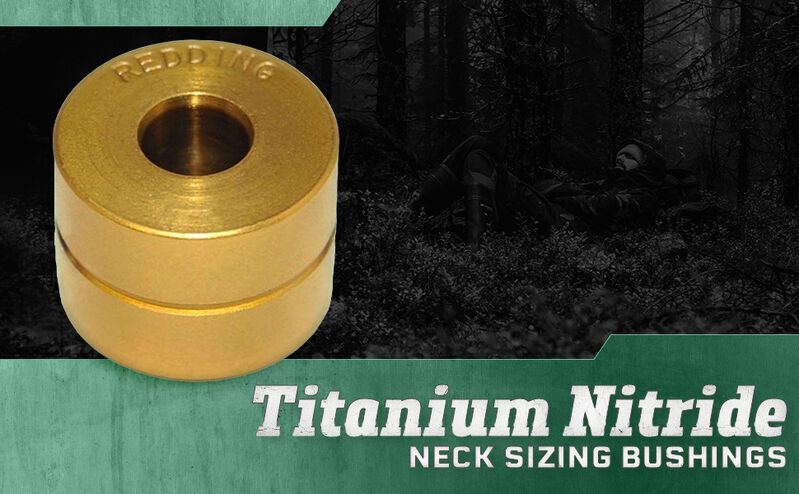

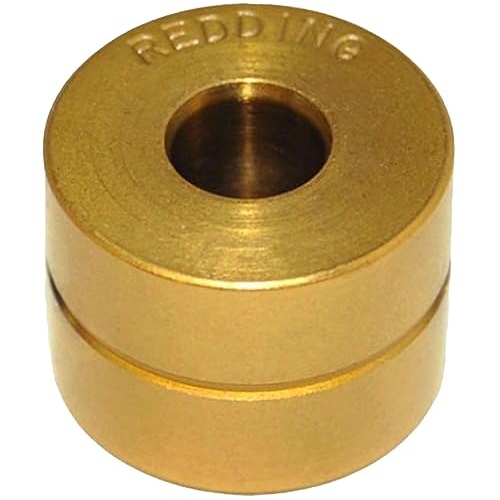

The Redding .361 Titanium Nitride Neck Sizing Bushing (MPN 76361) is a precision reloading component engineered to regulate cartridge case neck tension without overworking the brass. Built from heat-treated steel with a base core hardness of approximately Rc 60–62, it features a gold-coloured Titanium Nitride (TiN) surface coating that increases surface hardness and lowers friction during the sizing cycle. This bushing sizes only the outside diameter of the case neck, eliminating the need to pull an expander ball through the case mouth. It operates across standard bushing-style reloading dies, fitting all Redding Type S Bushing Neck Dies, Type S Full Length Dies, and Competition Neck Sizing Dies, as well as compatible Wilson, RCBS, and Hornady bushing dies.

Key Features

Precise Neck Tension Control: Sizes case necks to an exact inside diameter of 0.361 inches, supporting handloaders who adjust neck tension in 0.001-inch increments.
Titanium Nitride Coating: Lowers surface friction and increases wear resistance during case neck sizing cycles compared to standard steel bushings.
Concentricity and Brass Life: Eliminates expander ball pull-through to minimise brass work hardening and improve bullet-to-case concentricity.
Standard Interchangeability: Features an industry-standard 1/2-inch outer diameter and 3/8-inch length for cross-compatibility with major bushing-style die systems.
Mechanical Operation: Fully non-electric reloading tool designed for standard bench-mounted reloading presses.

Specifications

Manufacturer: Redding Reloading Equipment
Model / MPN: 76361
Inside Diameter (Sizing Dimension): 0.361 inches
Outer Diameter (O.D.): 1/2 inch (0.500 inches)
Length: 3/8 inch (0.375 inches)
Material: Heat-treated steel (Rc 60–62 core hardness) with Titanium Nitride (TiN) surface coating
Die Compatibility: Redding Type S Bushing Neck Dies, Type S Full Length Dies, Competition Neck Sizing Dies, and compatible Wilson, RCBS, and Hornady bushing dies

Who is the Redding .361 Titanium Nitride Neck Sizing Bushing for?

Precision long-range target shooters using .338 caliber family cartridges — requires an exact 0.361-inch inside diameter bushing to achieve consistent bullet grip and neck tension on large-diameter brass cases such as .338 Lapua Magnum, .338 Winchester Magnum, or .338 Norma Magnum.
Handloaders seeking improved bullet-to-case concentricity and extended brass life — relies on the 0.001-inch increment sizing capability and standard 1/2-inch outer diameter by 3/8-inch length format of this reloading neck sizing bushing to size necks without expander ball distortion.

Less suitable for: Reloading applications requiring case neck sizing reduction greater than 0.008 to 0.010 inches in a single pass, which require multiple intermediate step-down neck sizing bushings to prevent neck distortion and case shoulder damage.

SKU	RD41824LP
Model #	76361
Brand	Redding
Shipping Weight	1.0000kg
