What reloading dies are compatible with the Redding .362 Titanium Nitride Neck Sizing Bushing?

This bushing features a standard 1/2-inch outer diameter and 3/8-inch length, making it freely interchangeable across all Redding Type S Bushing Style Neck Sizing Dies and Full Length Sizing Dies, as well as Wilson-style neck dies. It is specifically designed for handloaders working with .338 calibre variants such as the .338 Lapua Magnum and .338 Winchester Magnum.

How does the Titanium Nitride coating improve performance during the case sizing process?

The precision heat-treated steel base is hardened to approximately Rc 60-62 and finished with a gold-coloured Titanium Nitride (TiN) coating. This surface treatment drastically minimizes sizing drag and friction compared to standard steel bushings, promoting smoother case neck extraction and delivering extreme wear resistance for a prolonged tool lifespan.

Are there specific sizing limitations or multi-step requirements when using the 0.362 bushing?

Yes, if your fired brass cases require a dimensional reduction greater than 0.004 to 0.005 inches, manufacturers recommend sizing in intermediate steps using multiple bushings to avoid neck distortion. Additionally, you should ensure your target loaded case neck diameter minus your desired tension calculates precisely to 0.362 inches.

Neck Sizing Bushing - Redding 76362

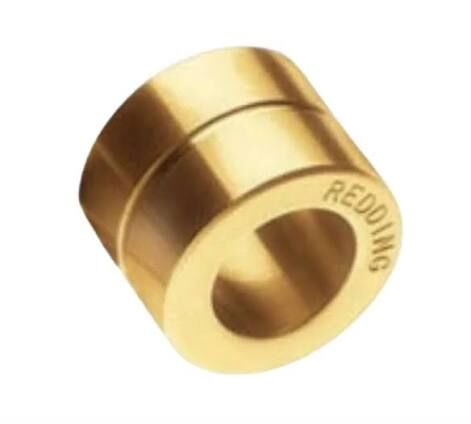

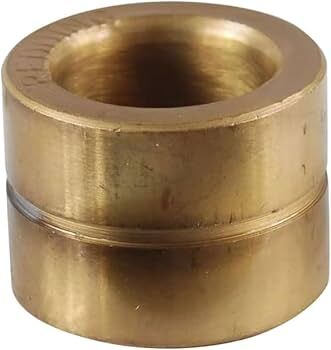

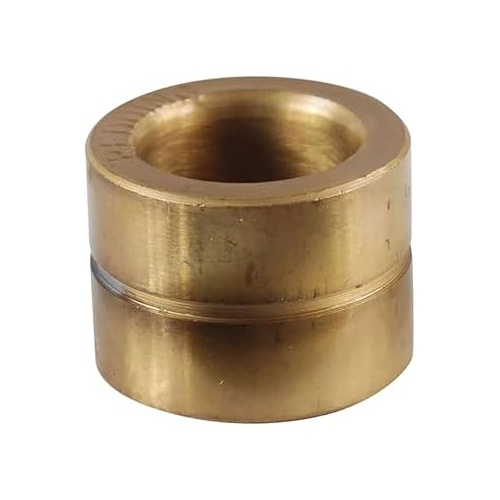

The Redding .362 Titanium Nitride Neck Sizing Bushing (MPN 76362) is a precision handloading component engineered to regulate case-neck dimensions and bullet tension without overworking the brass. Designed with an internal sizing diameter of 0.362 inches, this mechanical reloading tool sizes only the required outer diameter of the neck, eliminating the stretching associated with standard expander balls. It features standard external dimensions of a 1/2-inch outer diameter by 3/8-inch length, allowing free interchangeability across all Redding Type S Neck Sizing Dies, Full Length Sizing Dies, and Wilson-style neck dies.

Key Features

Titanium Nitride Coating: Features a gold-coloured TiN surface treatment over a hardened steel base to maximize surface hardness, minimize friction during sizing, and extend tool longevity.
Hardened Steel Construction: Manufactured from precision heat-treated steel hardened to approximately Rc 60–62 for dimensional stability under repeated reloading cycles.
Reduced Brass Fatigue: Focuses sizing solely on the case neck's outer profile, reducing work hardening compared to conventional full-length expander ball operations.
Die Compatibility: Built to standard 1/2-inch outer diameter and 3/8-inch length specifications to fit Redding Type S and Wilson-style bushing dies.
Mechanical Operation: Weighs approximately 15 to 20 grams and operates manually on standard reloading presses with recommended light case-neck lubrication.

Product Specifications

Internal Sizing Diameter: 0.362 inches (clearly stamped with size I.D.)
Outer Diameter: 1/2 inch (0.500 inches)
Length: 3/8 inch (0.375 inches)
Material Base: Heat-treated steel hardened to Rc 60–62
Surface Finish: Titanium Nitride (TiN) coating
Weight: Approximately 15–20 grams
Die Compatibility: Redding Type S Bushing Style Neck and Full Length Sizing Dies, Wilson-style neck dies

Who is the Redding .362 Titanium Nitride Neck Sizing Bushing for?

Australian long-range precision shooters — requires precise neck tension control inside Redding Type S sizing dies using a 1/2-inch outer diameter by 3/8-inch length format to maximize consistency for PRS and F-Class disciplines.
Handloaders loading .338 calibre variants — sizes medium-to-large bore cartridges such as .338 Lapua Magnum and .338 Winchester Magnum where loaded neck diameter calculations call for a precise 0.362-inch internal diameter.

Less suitable for: Handloaders requiring outer neck sizing below 0.335 inches or above 0.365 inches, who require smaller or larger dedicated bushing sizes, or cases requiring a dimensional reduction greater than 0.004 to 0.005 inches from fired diameter, which require sizing in intermediate steps using multiple stepping bushings or conventional fixed-dimension sizing dies.

SKU	RD41825LP
Model #	76362
Brand	Redding
Shipping Weight	1.0000kg
