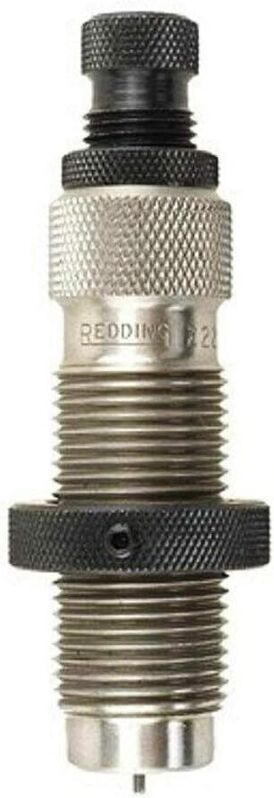

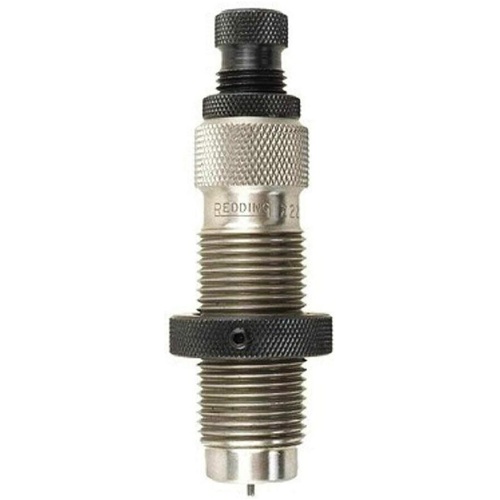

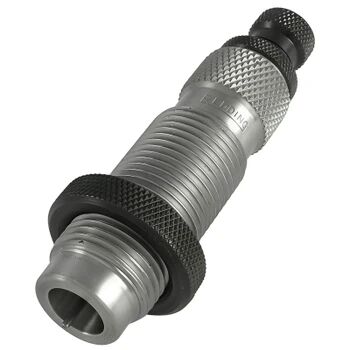

The Redding Type S Full Length Bushing Sizing Die (MPN: 77319) is engineered to resize the entire case body, bump the shoulder, and precisely control neck tension on 6mm PPC and 6mm PPC USA cartridge brass (.243" projectile diameter). Built from heat-treated alloy steel, this die accepts interchangeable sizing bushings (available in 0.001" increments) that self-center on the case neck to minimize runout and preserve concentricity. It includes both a standard steel expander button for standard brass and a decapping pin retainer for reloaders utilizing neck-turned brass.

Key Features

• Full-Length Sizing with Bushing Control: Restores fired brass to SAAMI case body dimensions while allowing custom neck tension adjustments via interchangeable sizing bushings (sold separately).

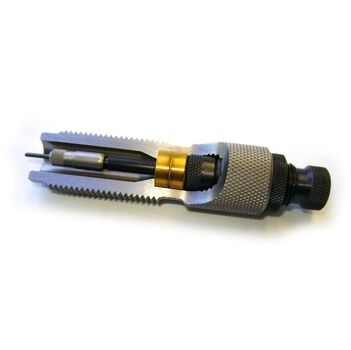

• Self-Centering Neck Bushing: The free-floating internal bushing design aligns directly with the cartridge neck axis to ensure uniform bullet grip and reduced case neck runout.
• Dual Expander Configurations: Supplied with a standard steel expander ball for sizing non-turned brass, as well as a decapping pin retainer to bypass internal neck expansion when loading uniform, neck-turned cases.
• Adjustable Decapping Assembly: Enables the user to size the entire length of the case neck or adjust the assembly to size only a partial portion of the neck.
• Body Die Functionality: Removing the internal bushing and decapping assembly allows the die to operate strictly as a cartridge body sizing and shoulder bumping tool.

Specifications

• Calibre Compatibility: 6mm PPC / 6mm PPC USA (.243" bullet diameter)
• Thread Interface: Standard 7/8"-14 TPI
• Shellholder Requirement: Redding #12 Standard Shellholder (PN: 11012) or Competition Shellholder Set #12 (PN: 11612) (sold separately)
• Material: Heat-treated alloy steel
• Total Package Weight: Approximately 180–230 g
• Operation: Non-powered, mechanical reloading press tool

Who is the Redding 6mm PPC Type S Full Length Die for?

• Short-range Benchrest competition shooters — requires precise full-length case resizing and shoulder bumping combined with bushing-controlled neck tension to maintain extreme concentricity across 100- to 300-yard targets using 6mm PPC cartridge brass on standard 7/8"-14 TPI reloading presses.
• Precision varmint hunters — relies on full-length body sizing to ensure flawless, repeatable chambering and consistent bullet release in standard SAAMI-spec 6mm PPC USA rifle chambers using this 6mm PPC full length sizing die.

Less suitable for: Handloaders running custom tight-neck or undersized competition chambers that experience base bulging (who require a small base full-length bushing die), or shooters loading brass exclusively fired in a single bolt-action rifle who do not need body resizing (who are better served by a dedicated bushing neck sizing die).
