Will the Redding 77790 fit on my standard Australian reloading press?

Yes, this die features the industry-standard 7/8"-14 thread, making it fully compatible with all common single-stage and turret presses used in Australia, such as the RCBS Rock Chucker, Hornady Lock-N-Load, and Redding Big Boss. Because it is a purely mechanical tool requiring no electrical power, there are no electrical compliance certifications or SAA/RCM requirements to worry about in your workshop.

What shellholder and neck bushings do I need to get started with this 28 Nosler die?

You will need a Redding #6 shellholder (MPN 11006) or Competition Shellholder #6 (MPN 11606), which are sold separately. Additionally, this Type S die requires interchangeable neck bushings to control neck tension—for instance, the Redding 73333 0.333-inch heat-treated steel bushing is a popular pairing depending on your brass wall thickness, with factory guidance typically falling between .310" and .318".

Does this die only resize the neck, or will it handle the full 28 Nosler case body?

The Redding 77790 is a full-length sizing die, meaning it simultaneously resizes the entire 28 Nosler cartridge case body, bumps the shoulder back to factory specifications, and controls neck tension in a single press stroke. If you only want to neck-size without touching the body or shoulder after fire-forming, Redding's Type S Neck Bushing Die (MPN 71790) is the intended alternative.

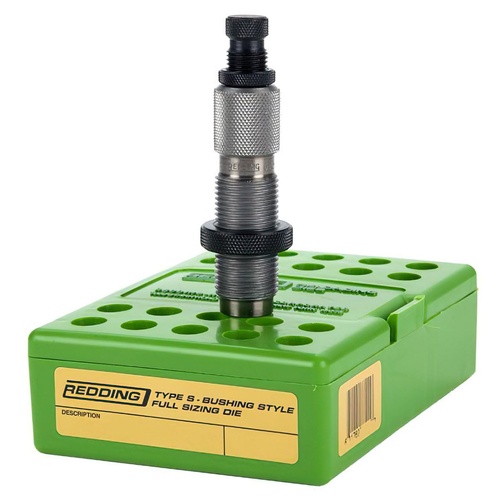

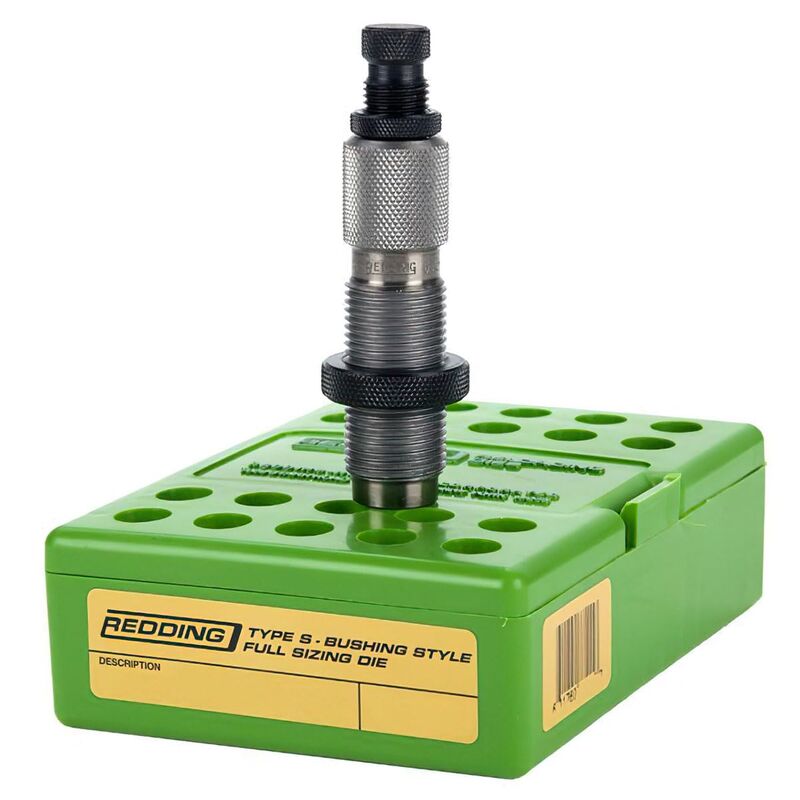

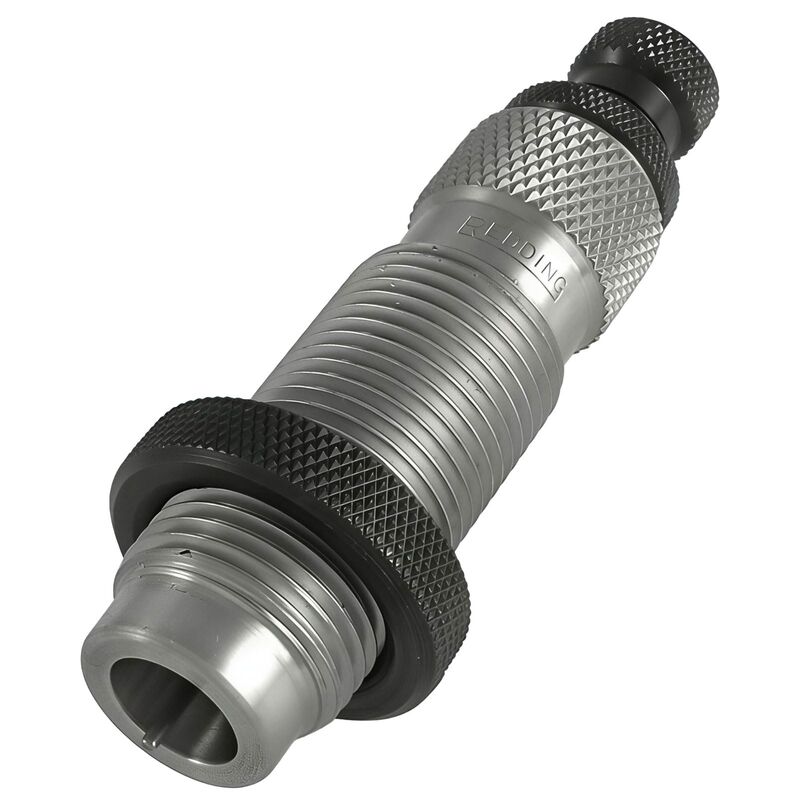

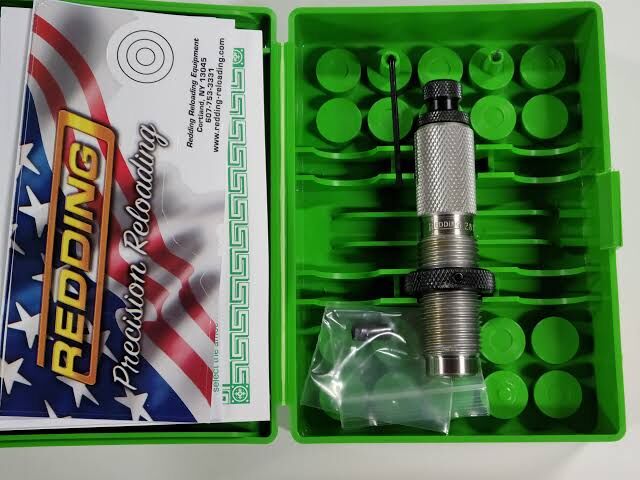

28 Nosler Resizing Die - Redding 77790

The Redding 28 Nosler Type S - Full Length Die provides simultaneous full-length case body resizing, shoulder bumping, and precision neck tension control in a single press stroke. Engineered specifically for the high-capacity 28 Nosler (.284 in / 7mm) cartridge, this die utilizes interchangeable sizing bushings to size the case neck without overworking the brass. Built on industry-standard 7/8"-14 mounting threads, it operates with standard single-stage and turret reloading presses to deliver match-grade concentricity and reliable chambering for demanding shooting applications.

Key Features

Full-Length Resizing with Bushing Control: Restores fired 28 Nosler cartridge bodies and shoulders to factory dimensions while allowing custom neck tension adjustments via interchangeable neck bushings.
Interchangeable Bushing System: Accepts standard Redding neck bushings (typically .310" to .318" for 28 Nosler, available in .001" increments) to prevent excessive brass working and extend case life.
Adjustable Decapping Assembly: Features a floating expander ball and an adjustable decapping rod, allowing users to size the full neck length or a partial portion, or run the die without the expander ball.
Standard Press Integration: Features standard 7/8"-14 threads for compatibility with conventional reloading presses.

Specifications

Manufacturer Part Number (MPN): 77790
Cartridge Calibre: 28 Nosler (.284 in / 7mm)
Die Thread Size: 7/8"-14 industry-standard thread
Shellholder Requirement: Redding #6 standard shellholder or #6 Competition shellholder (sold separately)
Typical Bushing Sizing Range: .310" to .318" depending on case wall thickness (bushings sold separately)
Operation Type: Mechanical reloading tool (no electrical power required)

Who is the Redding 28 Nosler Type S - Full Length Die for?

Precision handloaders — needing to precisely control neck tension in .001" bushing increments while full-length sizing 28 Nosler brass on standard 7/8"-14 threaded presses.
Long-range hunters — requiring flawless cartridge feeding from a 28 Nosler full length sizing die that restores body dimensions and bumps shoulders using a #6 shellholder setup.
Target shooters — seeking minimal bullet runout and maximum concentricity in 28 Nosler cartridges by tuning neck sizing through dedicated bushing steps on a standard 7/8"-14 reloading press.

Less suitable for: Handloaders who do not require precise, bushing-adjusted neck tension (a standard non-bushing full-length die is more cost-effective) or those seeking to fire-form cases by sizing only the neck without touching the case body and shoulder (a dedicated neck-only bushing die is the correct tool).

SKU	RD41847LP
Model #	77790
Brand	Redding
Shipping Weight	1.0000kg
