What reloading press thread standard does the Redding 80107 220 Swift Die Set require?

The Redding 80107 die set utilizes the industry-standard 7/8"-14 thread, making it fully compatible with single-stage and turret reloading presses commonly used by Australian handloaders. Additionally, you will need a standard Shellholder #4 (Part #11004) or Competition Shellholder #11604, which are sold separately.

Does this die set include neck sizing bushings for adjusting neck tension?

No, this is a standard full-length die set containing a Full Length Sizing Die with a fixed expander button and a Bullet Seating Die with a built-in roll-crimp ring. If you require exacting control over neck tension and runout down to increments of 0.001" for long-range precision, you would be better suited to a Redding Type-S Bushing Full Length Die.

Are there any electrical compliance or SAA/RCM certifications required for using these dies in Australia?

No electrical compliance or SAA/RCM certifications are applicable to the Redding 80107. Because this is a purely mechanical, manually operated reloading tool, it does not require electrical power or plugs, allowing for safe setup on your bench in outback sheds or climate-controlled rooms alike.

What special precautions should be taken when full-length sizing 220 Swift bottleneck brass with this set?

Because bottleneck sizing generates significant friction, you must apply adequate external case lubrication—such as sizing wax or liquid lube—to every piece of brass before operating the sizing die. Attempting to resize cases without proper lubrication risks permanently sticking the steel case inside the die body.

220 Swift Die Set - Redding 80107

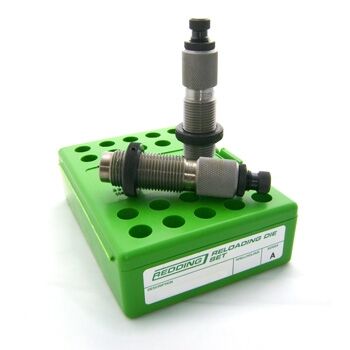

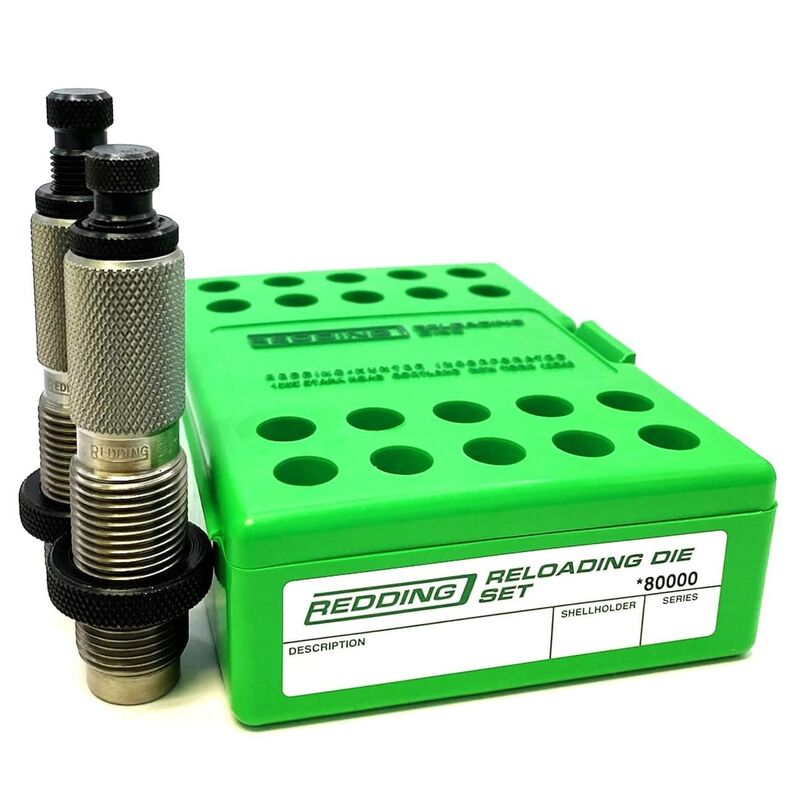

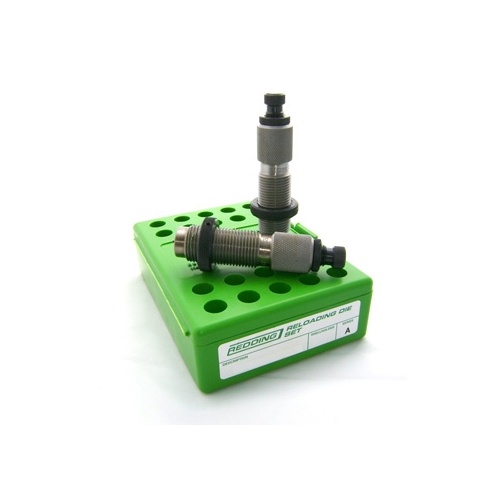

The Redding .220 Swift Full Length Die Set (MPN: 80107) is a precision 2-die reloading set engineered to restore fired bottleneck cartridge brass to factory SAAMI minimum chamber dimensions and seat projectiles with uniform alignment. Machined from high-grade alloy steel and heat-treated in atmospherically controlled furnaces, this set is built for reloading .220 Swift ammunition (0.224 in bullet diameter) used in bolt-action hunting and target rifles. It operates mechanically with industry-standard 7/8"-14 threaded single-stage and turret reloading presses.

Key Features

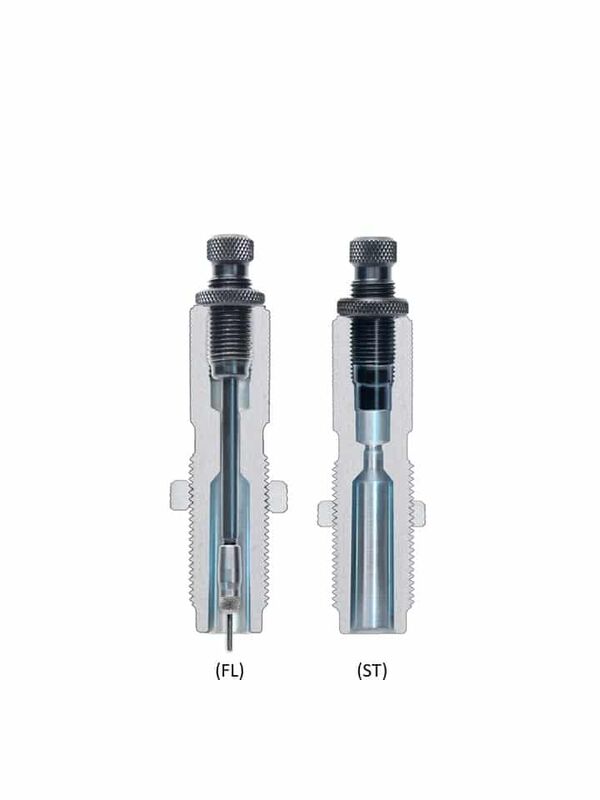

Full-Length Case Sizing: The included sizing die (Part #91107) deprimes spent primers, resizes the case body and shoulder, and expands the neck in a single stroke via the steel expander button (#39223) and decapping rod assembly (#34223).
Internal Bullet Alignment: The seating die (Part #92107) features an internal bullet guide and standard seat plug (#01083) to ensure straight bullet-to-case seating alignment.
Built-In Roll Crimp: The seating die incorporates an integrated roll-crimp ring to secure projectiles during assembly.
Durable Alloy Steel Construction: Precision-machined steel components provide wear resistance for high-volume reloading workflows.

Specifications

Calibre: .220 Swift
Compatible Bullet Diameter: 0.224 in
Thread Standard: 7/8"-14
Die Set Style: 2-Die Set (Full Length Sizing Die #91107, Seating Die #92107)
Required Shellholder: Redding Shellholder #4 (#11004) or Competition Shellholder #11604 (sold separately)
Packaged Weight: Approximately 0.5–0.6 kg
Power Requirement: Non-powered mechanical operation

Who is the Redding 220 Swift Full Length Die Set for?

Bolt-Action Rifle Hunters: Restores fired brass to factory SAAMI dimensions on standard 7/8"-14 threaded presses to ensure reliable cycling and chambering for .220 Swift rifles used in long-range varminting and pest eradication.
High-Velocity Handloaders: Provides complete full-length resizing, decapping, and bullet seating for 0.224 in diameter projectiles, delivering consistent cartridge dimensions for pest control handloads.

Less suitable for: Handloaders seeking micrometer-adjustable neck tension control in increments of 0.001", who require a bushing-style full length die or dedicated competition seating die, or shooters dedicated to single-rifle brass longevity where a neck-sizing die is preferred.

SKU	RD41854LP
Model #	80107
Brand	Redding
Shipping Weight	1.0000kg
