Will this standard 80111 die set work properly in my tight-tolerance AR-15 chamber?

While this standard full-length set resizes cases back to SAAMI specifications for most rifles, Redding recommends their Small Base Full Length Die Set (Model 48111) if you are reloading for very tight-tolerance AR-15s, custom match chambers, or firearms that require minimal case resistance.

Does this Redding 80111 die set come with a shellholder included in the box?

No, a shellholder is not included in this two-die set and must be purchased separately. You will need a standard #10 Redding shellholder (part #11010) to operate these dies on your reloading press.

What press threading is required to mount the Redding 80111 dies?

These dies feature the industry-standard 7/8"-14 thread interface. This makes them fully compatible with virtually all standard single-stage and progressive reloading presses used by handloaders in Australia.

Do I need any electrical power or Australian regulatory approvals to use these reloading dies?

No electrical power or SAA/RCM regulatory approvals are required. The Redding 80111 is a purely mechanical steel reloading tool operated entirely by manual hand pressure on your reloading press.

223 Rem Die Set - Redding 80111

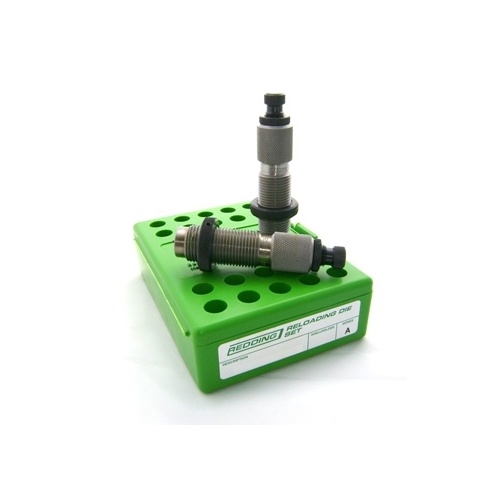

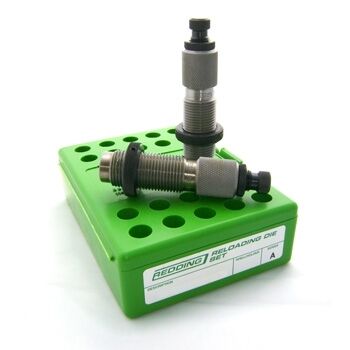

The Redding 80111 Full Length Reloading Die Set For 223 Remington Cases is a precision two-die system designed to return fired .223 Remington bottleneck brass to standard SAAMI factory dimensions. Built from heat-treated alloy steel, the set contains a full-length sizing die with an integrated decapping rod assembly and neck expander button, alongside a dedicated bullet seating die featuring an internal bullet guide and built-in roll-crimping ring. Operating entirely mechanically without electrical power requirements, this die set mounts into standard reloading presses using industry-standard 7/8"-14 threads to ensure dependable feeding and uniform chambering across bolt-action, lever-action, and semi-automatic platforms.

Key Features

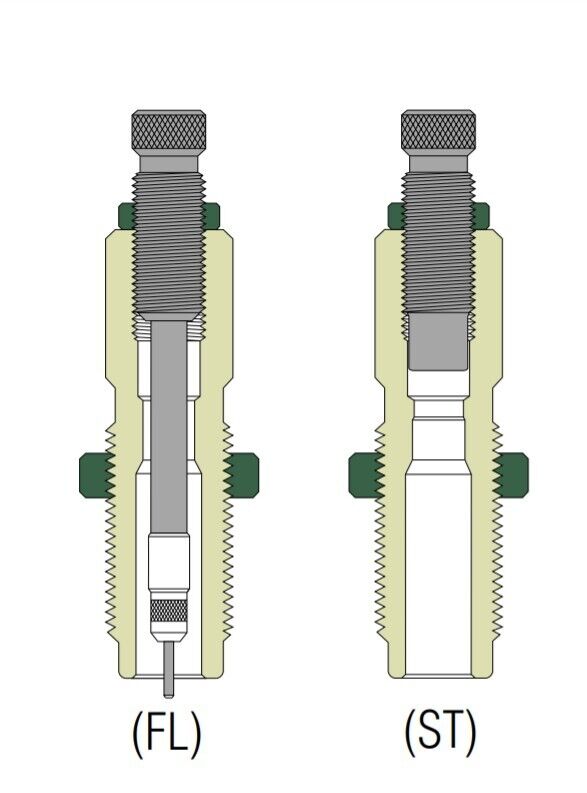

Full-Length Sizing Die: Resizes the complete case body and shoulder back to SAAMI specifications while simultaneously de-priming spent primers with a steel decapping rod and neck expander button.
Bullet Seating Die: Features an internal bullet guide, standard seating plug, and an integrated roll-crimping ring to seat bullets squarely to a consistent overall length.
Precision Steel Construction: Lathe-machined from alloy steel, heat-treated in atmospheric-controlled furnaces, hand-polished, and ultrasonically cleaned for smooth brass entry.
Universal Press Interface: Standard 7/8"-14 thread pattern allows direct compatibility with single-stage and progressive reloading presses.
Included Accessories: Packaged in a dedicated plastic storage box that doubles as a cartridge loading block, complete with a spare decapping pin and hex wrench.

Specifications

Calibre Compatibility: .223 Remington
Compatible Bullet Diameter: 0.224"
Thread Interface: 7/8"-14 standard thread
Shellholder Compatibility: Standard #10 Redding shellholder (sold separately)
Total Packaged Weight: 0.45–0.55 kg
Operating Mechanism: Manual mechanical operation (0W power requirement)

Who is the Redding 80111 Full Length Reloading Die Set For 223 Remington Cases for?

Handloaders loading for bolt-action and semi-automatic rifles — Requires industry-standard 7/8"-14 thread compatibility to size fired bottleneck brass back to factory SAAMI dimensions on standard presses, ensuring reliable chambering across varied actions.
Shooters engaged in feral pest and varmint control — Accommodates standard 0.224" diameter bullets to reload high volumes of .223 Remington ammunition for consistent field performance.

Less suitable for: Firearm platforms with tight-tolerance AR-15 chambers, custom match chambers, or pump/lever actions requiring minimal brass resistance; a small base full-length die set is recommended instead.

SKU	RD102100LP
Model #	80111
Brand	Redding
Shipping Weight	0.2000kg
