What shellholder is required to use the Redding 80120 25-06 Remington die set on my reloading press?

The Redding 80120 die set requires a standard Redding #1 Shellholder (Part #11001) or a Redding Competition Shellholder #1 (Part #11601), both of which are sold separately. The dies feature an industry-standard 7/8"-14 threaded body, making them fully compatible with single-stage and progressive reloading presses from major brands like Redding, RCBS, Hornady, and Lee widely used by Australian reloaders.

Does this full-length die set work best for bolt-action open-country deer rifles, or are neck-sizing dies recommended?

The Redding 80120 full-length resizing die restores fired brass to factory SAAMI dimensions, ensuring reliable chambering across various rifle actions and mixed-source brass out in the Australian bush. However, if your 25-06 Remington brass is dedicated solely to a single, tight bolt-action chamber and you want to minimise brass work-hardening, Redding's Neck Sizing Die Set (82120) or Type S-Bushing Dies (78120) are recommended instead.

Are there any electrical or regulatory certifications like SAA or RCM required for this reloading die set in Australia?

No electrical certifications or SAA/RCM approvals are required. The Redding 80120 is a completely mechanical, non-powered reloading tool that does not plug into 240V mains power, making it fully compliant for bench setup in any Australian workshop or reloading room right out of the box.

What is included in the Redding 80120 25-06 Remington die set box?

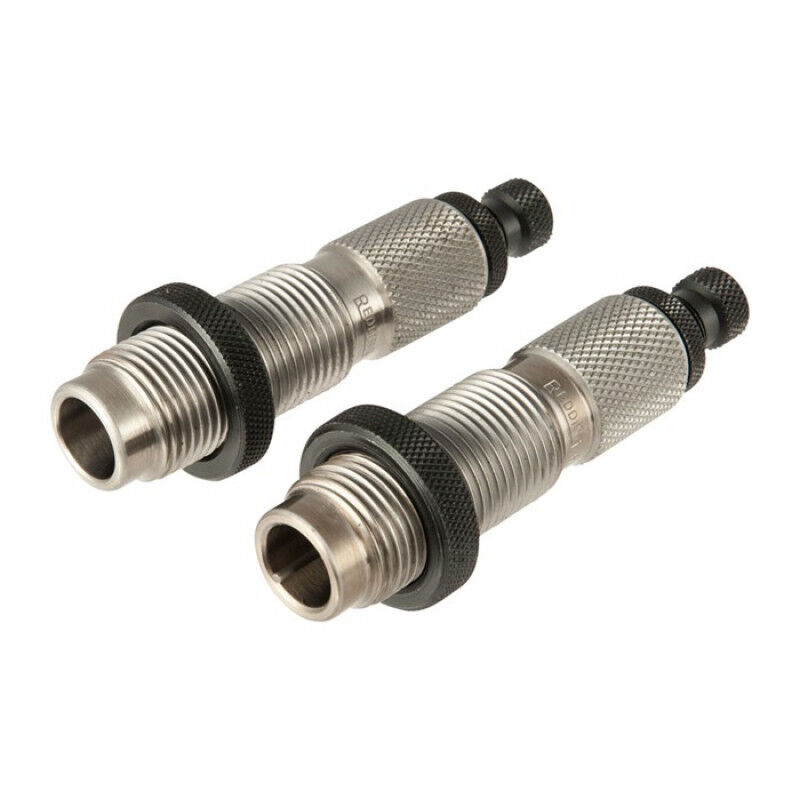

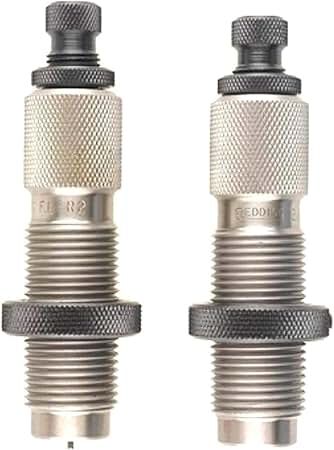

This is a two-die Series A set that includes a Full-Length Sizing Die with an integrated decapping rod assembly (utilising steel expander button #39256 and decapping pin #01060) and a Standard Bullet Seating Die featuring a built-in roll crimping shoulder and seating plug #01067. Both dies are precision-machined from high-quality alloy steel, heat-treated in an atmospherically controlled furnace, and hand-polished for smooth, scratch-free operation with .257" projectiles.

25-06 Die Set - Redding 80120

The Redding 80120 25-06 Remington Full Length Reloading Die Set (Series A) is a two-die mechanical reloading system designed to restore fired bottleneck cartridge brass to factory SAAMI dimensions. Machined from heat-treated alloy steel with hand-polished internal surfaces to resist galling, this set delivers uniform depriming, full-length body sizing, shoulder bumping, and precision projectile seating for .25-06 Remington ammunition.

Key Features

Full-Length Sizing Die (#91120): Resizes the case body, bumps the shoulder back to correct factory headspace, and decaps spent primers using an integrated decapping rod with a steel expander button (#39256) and decapping pin (#01060).
Bullet Seating Die (#92120): Features an internal bullet alignment guide, a standard seating plug (#01067), and an integrated roll-crimping shoulder for seating .257" diameter projectiles.
Industry-Standard Mounting: Standard 7/8"-14 threaded exterior threads ensure direct compatibility with single-stage and progressive reloading presses across major brands.
All-Steel Construction: Precision-machined, heat-treated alloy steel construction reduces brass friction when paired with proper case lubrication.

Product Specifications

Brand: Redding Reloading Equipment
Model / MPN: 80120
Die Series: Series A
Calibre Compatibility: .25-06 Remington
Bullet Diameter Compatibility: 0.257 in (6.53 mm)
Thread Interface: Standard 7/8"-14 threads
Shellholder Compatibility: Standard Redding Shellholder #1 (Part #11001) or Competition Shellholder #1 (Part #11601) (sold separately)
Package Weight: Approximately 0.45–0.55 kg
Power Requirements: None (manual reloading equipment)

Who is the Redding 80120 25-06 Remington Full Length Reloading Die Set for?

Australian Open-Country Hunters — Requires a 25-06 Remington reloading die set that full-length sizes brass cases to factory SAAMI headspace dimensions and seats 0.257 in (6.53 mm) diameter projectiles for reliable field cycling on game such as wild dogs, goats, and deer.
Multi-Rifle Handloaders — Relies on standard 7/8"-14 threads and full-length body resizing to safely standardise mixed-source .25-06 Remington brass fired across multiple bolt-action, lever-action, or semi-automatic actions.

Less suitable for: Dedicated single-rifle bolt-action benchrest shooting where neck-only sizing or bushing dies (such as Neck Sizing or Type S-Bushing dies) are preferred to prevent brass work-hardening; precision loaders requiring micrometer-adjustable seating depth increments who need a dedicated competition seating die; or firearms with excessively tight chambers requiring a small base die set to ensure reliable extraction.

SKU	RD102374LP
Model #	80120
Brand	Redding
Shipping Weight	0.2000kg
