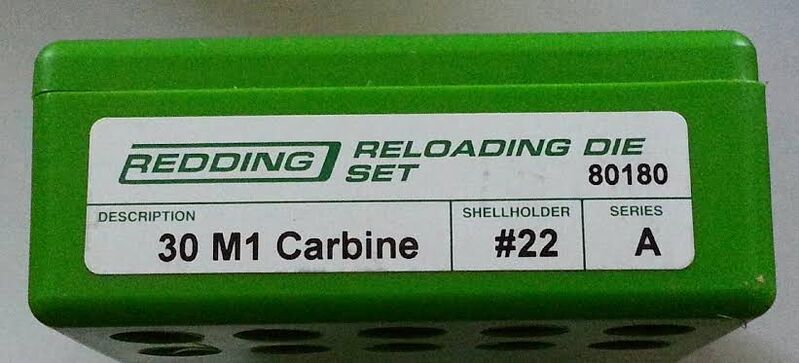

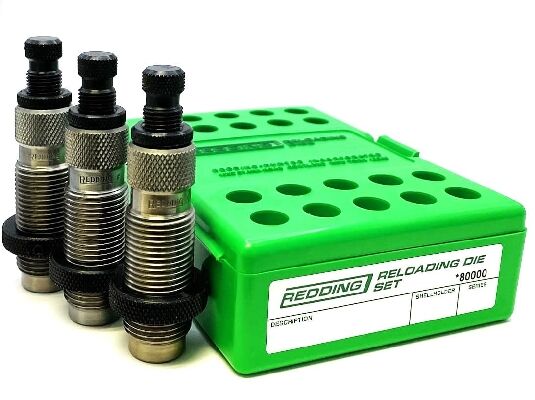

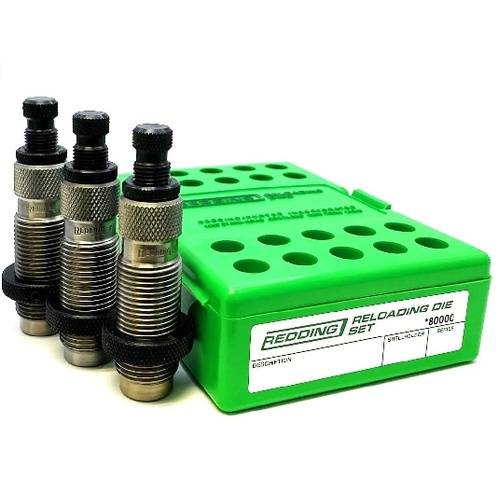

The Redding 80180 30 M1 Carbine Three Die Reloading Set In Hardened Steel is a dedicated three-die toolset engineered for reloading straight-wall and tapered .30 M1 Carbine ammunition. Machined from heat-treated alloy steel on precision lathes and finished in atmospherically controlled furnaces, this set manages full-length case sizing, mouth expansion, and projectile seating. It utilizes industry-standard 7/8"-14 reloading press threading to integrate with single-stage and progressive presses, sizing cases back to factory dimensions while accommodating .308 in diameter projectiles.

Key Features

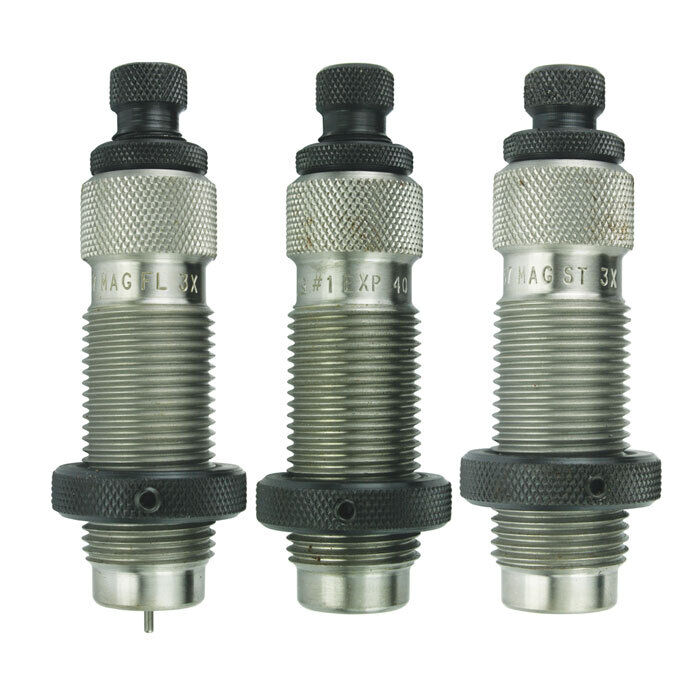

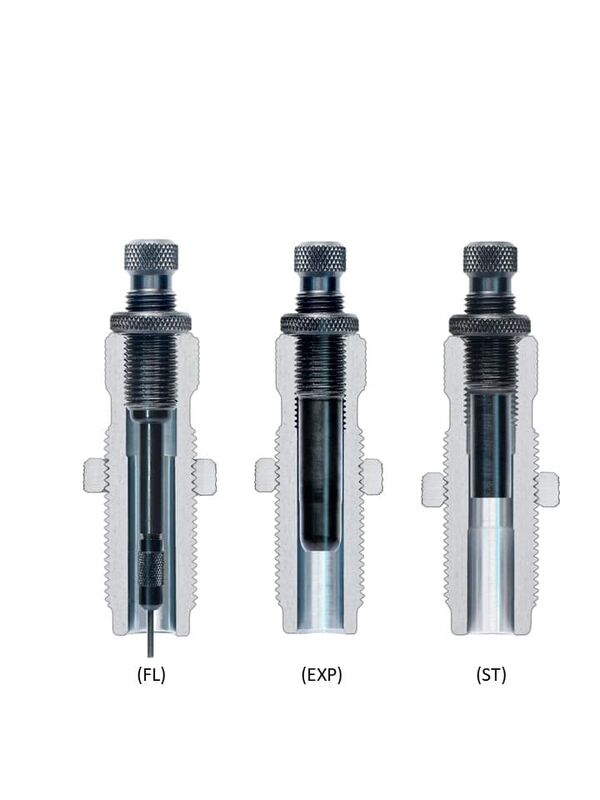

• Three-Die Operation: Includes a full-length sizing die with a decapping rod assembly, a dedicated expander die to flare straight-wall case mouths, and a bullet seating die.
• Integrated Crimping: The bullet seating die features a built-in crimp ring designed to secure projectiles firmly for reliable feeding in semi-automatic actions.
• Precision Tool Steel: Constructed from hardened alloy steel to maintain concentricity and dimensional tolerances over continuous reloading cycles.
• Press Compatibility: Standard 7/8"-14 thread interface mounts into standard reloading presses.

Specifications

• Cartridge: .30 M1 Carbine
• Compatible Bullet Diameter: .308 in
• Thread Size: 7/8"-14
• Required Shellholder: Redding Standard Shellholder #22 (sold separately)
• Material: Heat-treated alloy steel
• Packaged Dimensions: Approximately 16 × 12 × 4 cm
• Packaged Weight: Approximately 500–600 g
• Die Set Contents: Full-length sizing die (#91180), expander die (#93180), seating die (#92180)

Who is the Redding 80180 .30 M1 Carbine Three-Die Set for?

• Competitive shooters reloading for historical M1 Carbine service rifle matches — requires precise bullet alignment and reliable cycling, provided by this 30 M1 Carbine reloading die set's built-in crimping ring designed specifically around .308 in diameter projectiles.
• Handloaders crafting custom ammunition for 30 M1 Carbine platforms — mounts securely into standard bench presses using industry-standard 7/8"-14 reloading press threading and couples with a standard #22 shellholder to maintain tight concentricity across multi-stage loading workflows.

Less suitable for: High-volume reloaders seeking lube-free operation on progressive presses, as these hardened steel dies strictly require manual case lubrication before full-length sizing; high-speed setups are better served by a titanium carbide die set.
