What shellholder do I need to use with the Redding 35 Whelen Full Length Die Set (MPN: 80215)?

This die set requires a standard Shellholder #1, specifically Redding Part #11001, which is sold separately. The dies themselves feature a standard 7/8"-14 thread pitch that fits nearly all conventional reloading presses available on the Australian market.

Will this die set work for reloading fire-formed brass intended for a single bolt-action rifle?

While the Model 80215 full-length die set will resize brass back to SAAMI factory dimensions, Redding recommends using a dedicated neck-sizing die instead if you are reloading fire-formed brass exclusively for a single bolt-action rifle. Neck-sizing helps maximise your brass life and accuracy for bush hunting applications.

Do I need small-base dies if I am loading 35 Whelen for a semi-automatic or pump-action rifle?

If you are loading for tight semi-automatic or pump actions that experience extraction friction in the field, standard full-length sizing may not provide enough clearance. In those specific scenarios, Redding recommends using their small-base dies (Redding #48215) instead of this standard set to ensure reliable chambering.

Does this mechanical reloading tool require any electrical compliance or SAA/RCM certification in Australia?

No electrical compliance or SAA/RCM certification is required. The Redding 35 Whelen Die Set is a purely mechanical, heat-treated alloy steel tooling assembly that operates entirely without mains power or 240V electricity.

35 Whelen Die Set - Redding 80215

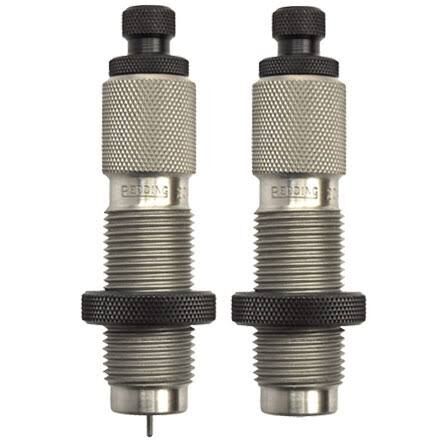

The Redding 35 Whelen Full Length Die Set (MPN: 80215) is a precision two-die mechanical reloading system designed to restore fired .35 Whelen cartridge brass back to factory SAAMI dimensions and seat bullets. Machined from heat-treated alloy steel on Hardinge super-precision lathes and finished with hand-polishing, this set provides uniform case dimensions, proper decapping, and precise bullet seating for standard .35-calibre hunting and sporting rifles.

Key Features

Full-Length Sizing Die (Part #91215): Resizes the entire case body, shoulder, and neck back to factory dimensions, removes spent primers via an integrated decapping rod, and expands the case neck with an internal expander size button.
Bullet Seating Die (Part #92215): Incorporates an internal bullet guide, a standard #01081 seating plug, and a built-in roll-crimp ring to seat and secure projectles.
Standard Press Compatibility: Threaded with industry-standard 7/8"-14 thread pitch to fit standard single-stage and progressive reloading presses.
Complete Setup: Includes knurled lock rings, a spare decapping pin, an Allen wrench, and a hard plastic storage box.

Product Specifications

Cartridge: .35 Whelen
Bullet Diameter Compatibility: 0.358-inch (standard .35 calibre)
Thread Pitch: 7/8"-14 standard reloading thread
Material: Heat-treated, hand-polished alloy steel
Required Shellholder: Redding Shellholder #1 (Part #11001, sold separately)
Operation: Non-powered mechanical handloading tooling

Who is the Redding 35 Whelen Full Length Die Set for?

Handloaders hunting sambar deer and feral boar — Seats 0.358-inch diameter rifle bullets to precise depths and restores cartridge brass back to factory dimensions using this 35 Whelen full length die set to ensure reliable feeding in big-game hunting environments.
Hunters maintaining ammunition for 35-calibre bolt-action and semi-automatic rifles — Mounts directly into standard reloading presses via 7/8"-14 thread pitch tooling to resize mixed brass lots across multiple firearms without chambering resistance.

Less suitable for: Modified wildcat chambers such as the .35 Whelen Ackley Improved, single bolt-action setups where handloaders require neck-sizing dies to work exclusively with fire-formed brass for extended case life, or tight semi-automatic and pump actions experiencing extraction friction that require dedicated small-base sizing dies.

SKU	RD41867LP
Model #	80215
Brand	Redding
Shipping Weight	1.0000kg
