Will this die set work with my standard single-stage reloading press in Australia?

Yes, the Redding 7mm Weatherby Magnum Full Length Die Set features industry-standard 7/8"-14 reloading press threading. It is fully compatible with standard single-stage, turret, and progressive presses commonly used in Australia, such as the RCBS Rock Chucker, Redding Big Boss, and Hornady models.

Does this die set include the shellholder required for 7mm Weatherby Magnum brass?

No, a shellholder is not included in the 2-die set and must be purchased separately. You will need a standard #6 Shellholder, such as the Redding Part #11006 or Competition #11606, to properly secure the belted cases during the sizing and seating operations.

Can I use this die set to reload standard 7mm Remington Magnum cartridges?

No, this die set is built exclusively for bottleneck belted 7mm Weatherby Magnum cases using .284 inch projectiles and features the specific headspace and body dimensions of the Weatherby chamber. It will not correctly size standard 7mm Remington Magnum brass or other non-Weatherby calibres.

What maintenance is required to protect these steel dies in humid Australian climates?

Because the dies are precision-machined from heat-treated alloy steel without electronic components, they require standard dry-storage indoor bench maintenance. Apply a light coat of rust inhibitor or gun oil after reloading sessions, especially if storing them in humid coastal or outback environments, to prevent surface oxidation.

7mm Weatherby Dies - Redding 80237R

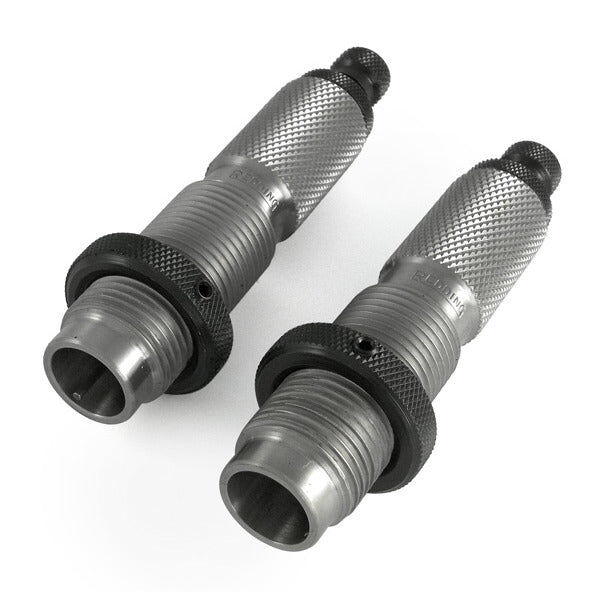

The Redding 7mm Weatherby Magnum Full Length Die Set (Manufacturer Model Number 80237 / 80237R) is a dedicated 2-die reloading system designed to restore fired belted magnum brass back to SAAMI factory chamber dimensions. Built from heat-treated, hand-polished alloy steel, this set sizes, deprimes, and expands case necks in one step, while providing consistent bullet seating and an integrated roll crimp for .284 in diameter projectiles. It threads directly into standard reloading presses using industry-standard 7/8"-14 threading.

Key Features

Full-Length Sizing Die (Part #91237): Resizes fired bottleneck belted cases from base to neck, fitted with a decapping rod assembly (#25283), steel expander button (#40283), and decapping pin (#01060).
Bullet Seating Die (Part #92237): Positions .284 in bullets using a standard seat plug (#01067) and includes a built-in roll crimp shoulder to secure heavy-recoiling hunting loads.
Precision-Ground Alloy Steel: Heat-treated and hand-polished internal surfaces minimize friction and prevent brass galling during the sizing stroke when used with standard case lubrication.
Standard Press Mounting: Uses standard 7/8"-14 threading to ensure mechanical compatibility with standard Australian reloading presses.

Product Specifications

Calibre: 7mm Weatherby Magnum
Bullet Diameter Compatibility: .284 in
Press Threading: 7/8"-14
Required Shellholder: #6 Shellholder (Redding Part #11006 / #11606, sold separately)
Sizing Die Model: Part #91237
Seating Die Model: Part #92237
Packaged Weight: Approximately 500 g to 600 g
Power Requirements: None (manual reloading tool)

Who is the Redding 7mm Weatherby Magnum Full Length Die Set for?

Big-game hunters handloading for 7mm Weatherby Magnum rifles — Full-length resizes belted brass across the entire case body and sets an integrated roll crimp on .284 in projectiles using standard 7/8"-14 press threads to guarantee smooth feeding and chambering in bolt-action hunting rifles.
Reloaders processing brass fired across factory chambers — Returns fire-formed 7mm Weatherby Magnum cases to factory dimensions while aligning on a standard #6 shellholder to ensure reliable cycling in standard factory chambers.

Less suitable for: Long-range precision and benchrest shooters who require exact, customizable neck tension without an expander ball; this requirement is better served by a bushing sizing die set with interchangeable neck bushings or a micrometer-adjustable competition seating die. It is also unsuitable for other 7mm cartridges such as the 7mm Remington Magnum due to cartridge-specific case body and shoulder dimensions.

SKU	RD41871LP
Model #	80237R
Brand	Redding
Shipping Weight	1.0000kg
