Will the Redding 80279 17 Hornet Full Length Die Set fit my standard single-stage reloading press?

Yes, this 2-die set features standard 7/8"-14 threads, making it fully compatible with all standard reloading presses from manufacturers like Redding, RCBS, Hornady, Lee, and Lyman. It is designed for straightforward mounting on standard Australian reloading benches without requiring specialized adapters.

Can I use this 17 Hornet die set for my 22 Hornet brass or 17 Ackley Hornet loads?

No, this die set is strictly engineered for standard .17 Hornet cartridges with a 0.172-inch bullet diameter and factory case dimensions. It is completely incompatible with parent cases like the 22 Hornet or wildcats such as the 17 Ackley Hornet and 17 Remington Fireball, which require dedicated tooling.

Do I need to purchase a specific shellholder to use with the Redding 17 Hornet Full Length Die Set?

Yes, this die set requires a Redding Shellholder #14, which is sold separately. Ensure you have this specific shellholder on hand to properly secure and align your .17 Hornet brass in your press during the sizing and seating operations.

What additional components or maintenance are required to prevent stuck cases in my Australian outback workshop?

Because the thin .17 Hornet case shoulder is prone to sticking if improperly lubricated, you must apply a quality case sizing lubricant prior to operating the full-length sizing die. Operating in hot Australian workshop conditions can dry out lubricants quickly, so ensure your brass is evenly coated and store your heat-treated alloy steel dies in dry conditions to prevent surface rust over time.

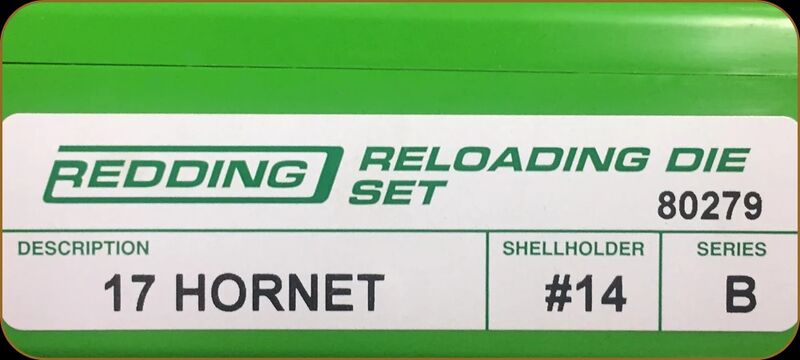

.17 Hornet Die Set - Redding 80279

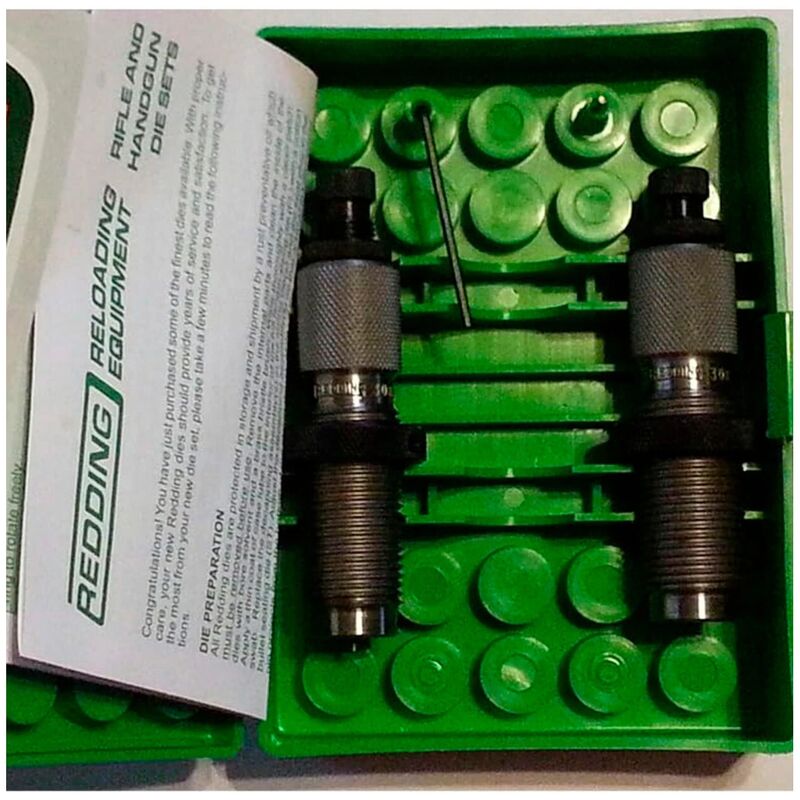

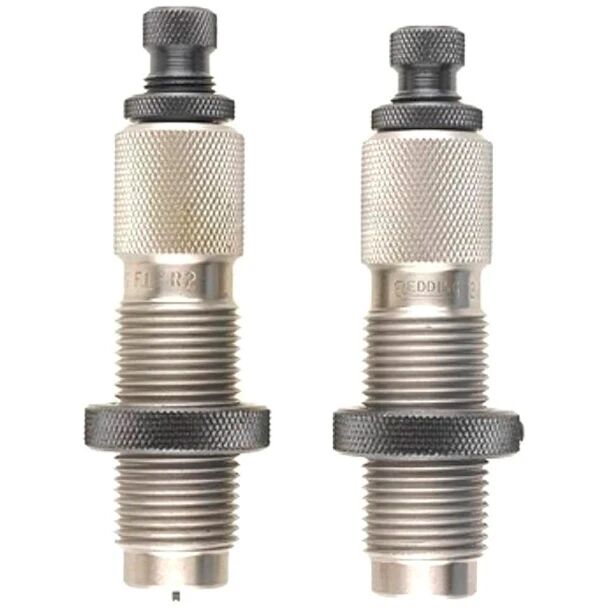

The Redding 17 Hornet Full Length Die Set (MPN: 80279) is a precision 2-die reloading system engineered to return fired brass to factory chamber dimensions and seat new bullets. Machined from heat-treated alloy steel on precision lathes, this set includes a full-length sizing die with an integrated decapping rod assembly and size button, as well as a dedicated bullet seating die featuring an internal bullet guide and a built-in crimp ring. Designed to mount onto any standard reloading press using industry-standard 7/8"-14 threading, the set ensures reliable chambering and concentricity across all .17 Hornet handloads.

Key Features

Full-Length Resizing: Restores fired brass to factory SAAMI dimensions while simultaneously depriming and expanding the case neck for uniform bullet seating tension.
Straight-Line Seating: Seating die features an internal bullet guide and built-in crimp ring to maintain consistent cartridge overall length (COAL) and alignment.
Precision Steel Construction: Manufactured from heat-treated alloy steel to maintain tight manufacturing tolerances over high-volume reloading cycles.
Universal Press Interface: Standard 7/8"-14 thread pattern provides direct compatibility with most single-stage and turret reloading presses.

Specifications

Cartridge: .17 Hornet
Bullet Diameter: 0.172 in
Thread Size: Standard 7/8"-14 thread
Shellholder Required: Redding Shellholder #14 (sold separately)
Full Length Sizing Die Part Number: #91279 (includes #26171 decapping rod assembly, #01026 decapping rod, #37171 size button, and #01059 decapping pin)
Bullet Seating Die Part Number: #92279 (includes #01085 standard seating plug)
Material: Heat-treated alloy steel
Weight: Approximately 0.45–0.55 kg
Power Requirements: None (manual mechanical operation)

Who is the Redding 17 Hornet Full Length Die Set for?

Handloaders reloading for varmint control — Resizes fired brass down to factory chamber clearances and seats 0.172 in projectiles using a standard 7/8"-14 thread press interface, ensuring reliable feeding and chambering across various field rifles.
Precision target shooters — Delivers straight-line projectile alignment and precise neck expansion for 0.172 in diameter bullets, providing the concentricity and uniform neck tension needed for competitive accuracy.

Less suitable for: Reloaders working with parent .22 Hornet brass or alternative .17-calibre variants such as the .17 Ackley Hornet or .17 Remington Fireball; these applications require dedicated calibre-specific sizing dies or neck-sizing dies designed for specific shoulder profiles.

SKU	RD41877LP
Model #	80279
Brand	Redding
Shipping Weight	1.0000kg
